TIF100-10-01U Thermally Conductive Gap Filler Pads
TIF100-10-01U Thermally Conductive Gap Filler Pads
TIF100-10-01U Thermally Conductive Gap Filler Pads
TIF100-10-01U Thermally Conductive Gap Filler Pads
Specifications
Brand Name :
Ziitek
Model Number :
TIF100-10-01U
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000 PCS
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000pcs/month
Delivery Time :
3-6 work days
Packaging Details :
24*13*12cm cartons
Products name :
Thermally Conductive Gap Filler Pads
Construction &Compostion :
Ceramic filled silicone elastomer
Thermal conductivity :
1.0W/mK
Hardness :
27(Shore 0)
Color :
Dark gray
Thickness range :
0.5mm-5.0mm
Keywords :
Thermal Pad
Specific Specific Gravity :
2.1g/cc
Description

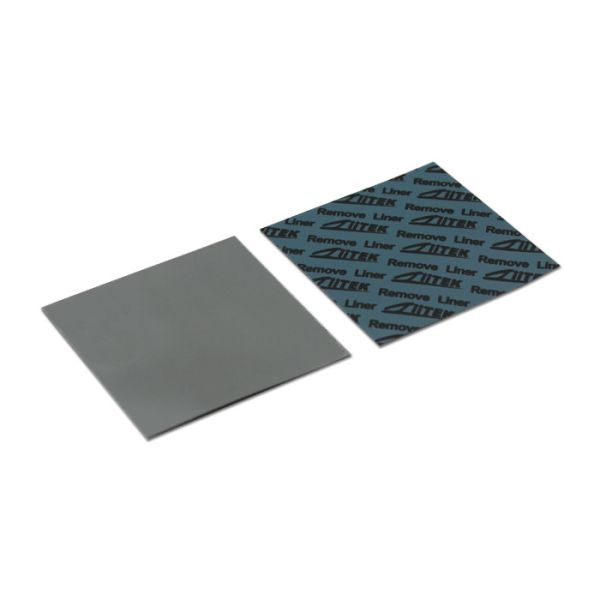

TIF100-10-01U Thermally Conductive Gap Filler Pads

The TIF100-10-01U Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

TIF100-10-01U Thermally Conductive Gap Filler Pads

Features
> Good thermal conductive: 1.0W/mK
> RoHS compliant
> UL recognized
> Tear resistance
> Easy release construction
> Electrically isolating
> High durability


Applications
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board

Typical Properties of TIF100-10-01U Series
Technical description Unit Technical parameter Test method
Color Dark gray *****
Construction & Compostion Ceramic filled silicone elastomer *****
Thickness range mm 0.5~5.0 ASTM D374
Hardness Shore 0 27 ASTM 2240
Specific Gravity g/cc 2.1 ASTM D297
Continuos Use Temp ℃ -40~160 *****
Dielectric Breakdown Voltage VAC >5500 VAC ASTM D149
Dielectric Constant @1MHz 4.5 ASTM D150
Volume Resistivity Ohm-meter 1.0X10¹² ASTM D257
Thermal conductivity W/m-K 1.0 ASTM D5470 & GB-T32064
Outgassing (TML) % 0.35 ASTM E595
Flame Rating V-0 94 UL E331100

TIF100-10-01U Thermally Conductive Gap Filler Pads

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
