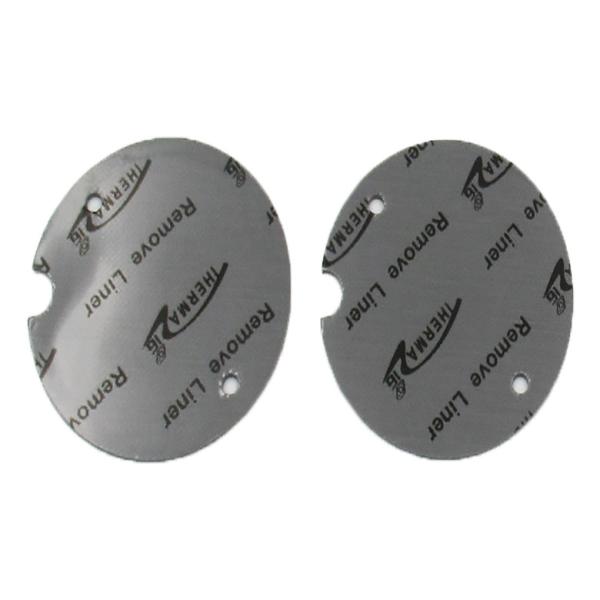

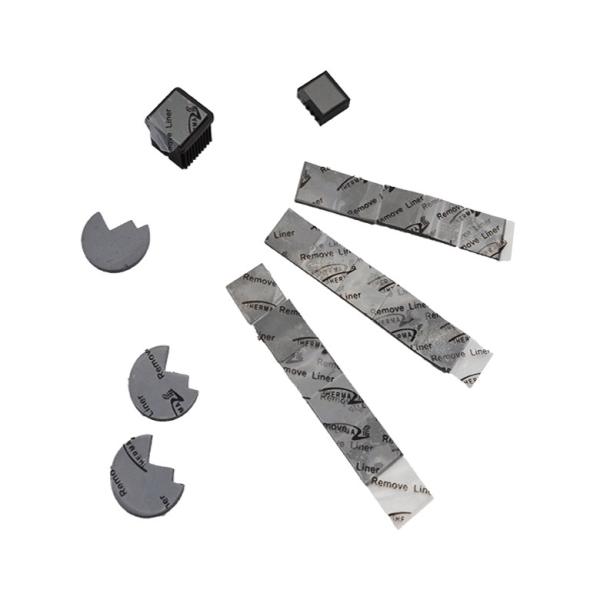

TIF500-50-10U Thermal Pad 2W/MK Silicon Thermal Gap Pad Filling For Telecommunication Hardware​

Product descriptions

TlF500-50-10U is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features

> Good thermal conductive 5.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> RoHS compliant
> UL recognized
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses

Application

> Mainboard/mother board
> Notebook
> Power supply
> CPU
> Micro heat pipe thermal solutions
> Telecommunication hardware
> Routers
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units

> Memory Modules
> Mass storage devices

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Thicknesses

0.020-inch to 0.200-inch (0.5mm to 5.0mm)

Product Sizes:

8" x 16"(203mm x406mm)

Individual die cut shapesand and custom thickness can be supplied.

Please contact us for confirming

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
