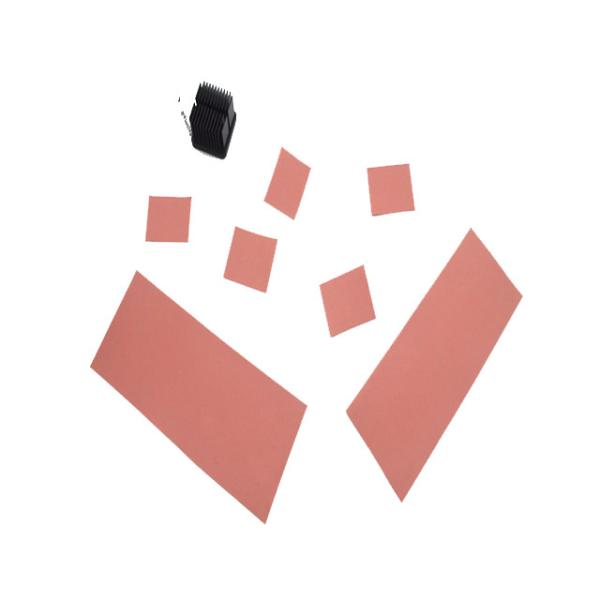

TIS100-16-02 Electrically Insulating Thermal Sheet For Power Supply
TIS100-16-02 Electrically Insulating Thermal Sheet For Power Supply
TIS100-16-02 Electrically Insulating Thermal Sheet For Power Supply
TIS100-16-02 Electrically Insulating Thermal Sheet For Power Supply
Specifications
Brand Name :
Ziitek
Model Number :
TIS100-16-02
Certification :
UL and RoHs
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
Electrically Insulating Thermal Sheet For Power Supply
Thermal Conductivity :
1.6W/mK
Color :
Red
Construction & Compostion :
Ceramic Filled Silicone Elastomer / fiberglass
Specific Gravity :
2.3g/cc
Continuous use temp :
-45~200℃
Keywords :
Electrically Insulating Thermal Sheet
Application :
Car battery & Power supply
Description

TIS100-16-02 Electrically Insulating Thermal Sheet For Power Supply

TIS100-16-02 Series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

TIS100-16-02 Electrically Insulating Thermal Sheet For Power Supply

Features


> Highly thermal conductive 1.6W/mK
> High dielectric strength
> Low thermal resistance with high voltage isolation

> Easy release construction
> Resistant to teaars and punctures


Applications


> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

> Notebook
> Power supply
> Memory Modules
> Mass storage devices

Typical Properties of TIS100-16-02 series
Product Name TIS100-16-02 Test Method
Color Red Visual
Construction &Compostion Ceramic filled silicone elastomer / Fiberglass *******
Composite Thickness 0.230mm to 0.457mm ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 89 Shore A ASTM D751
Tensile strength 425 kpsi ASTM D412
Continuous Use Temp -45 to 200℃ *******
Dielectric Breakdown Voltage >5000 Vac ASTM D149
Dielectric Constant 5.5 MHz ASTM D150
Volume Resistivity 1.1X10¹² Ohm-meter ASTM D257
Flame Rating 94 V0 E331100
Thermal conductivity 1.6 W/mK ASTM D547

Standard Thicknesses:
0.009"(0.230mm), 0.010"(0.254mm), 0.018"(0.457mm),

Individual die cut shapes and custom thickness can be supplied.Please contact us for confirming.

Peressure Sensitive Adhesive:

Request adhesive one side with "A1" suffix.

Request adhesive one double side with "A2" suffix.

Product Sizes
12" x 160'(304mm x 48.76M)
lndividual die cut shapes and custom thickness can be supplied.

Packaging Details & Lead time

The packaging of Thermal Insulation Materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
