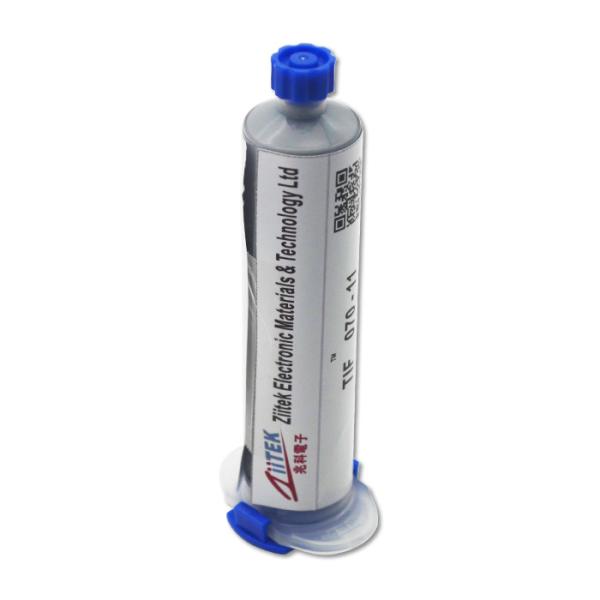

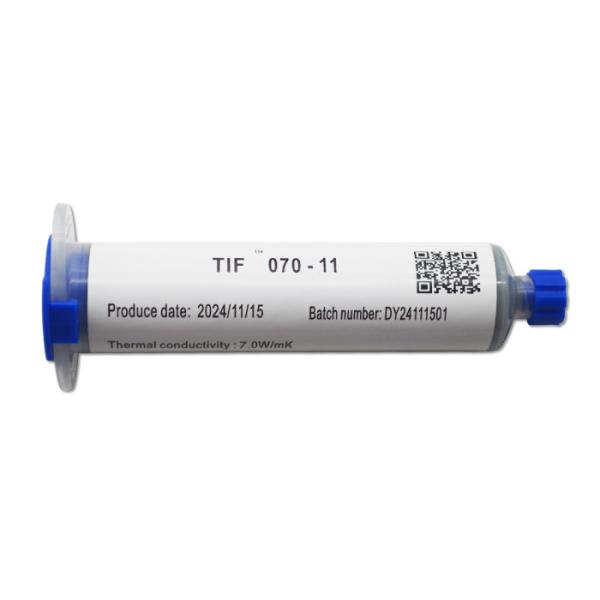

TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel
TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel
TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel
TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel
Specifications
Brand Name :
Ziitek
Model Number :
TIF070-11
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000tube
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 tube/month
Delivery Time :
3-5 work days
Packaging Details :
300cc/PCS，6PCS/Box
Products name :
7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel
Materail :
Ceramic Filled Silicon Material
Thermal conductivity :
7.0W/mK
Color :
Gray
Specific Gravity :
3.5g/cm³
Continuous Use Temperature :
-45~200℃
Keywords :
Thermal conductive gel
Application :
Heat Sink & frame
Description

TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel

TIF070-11 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility.

Due to TIF070-11 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.


TIF070-11 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility.

TIF070-11 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component.

Feature
> Thermal conductivity: 7.0W/mK

> Soft, very low compression

> Low thermal inpedance

> Operate automaticly
> Proven long-term reliability

Application
> Mass storage devices
> Automotive electronics
> CPU
> Heat-sink & frame
> LED backlight module,LEDlighting
> High speed hardware driver

> Micro heat pipe
> Vihicel enginee controler

> Telecom industry
> Semiconductor automaticlaboratory equipment.

TIFTM070-11 Typical Properties
Property Value Test method
Color Gray Visual
Construction & Composition Ceramic filled silicon material *****
Viscosity 2280K cps GB/T 10247
Density 3.5g/cc ASTM D297
Thermal conductivity 7.0W/mK ASTM D5470
Specific heat capacity 2.80 (MJ/m³K) ASTM E1269
Dielectric breakdown strength(V/mm) ≥4000 ASTM D149
Recommended Operating temp -45 ~200°C Ziitek Test Method
Shelf Life @25℃；Original Packing 6 months ******
Flame Rating V-0 UL 94

Packing details

30 cc/pc, 98 pc/box;

300 cc/pc , 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.

Please contact us for confirming.

TIF070-11 7.0W/M-K Single-Component Insulation Silicone Conductive Thermal Gel

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Q&A

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
