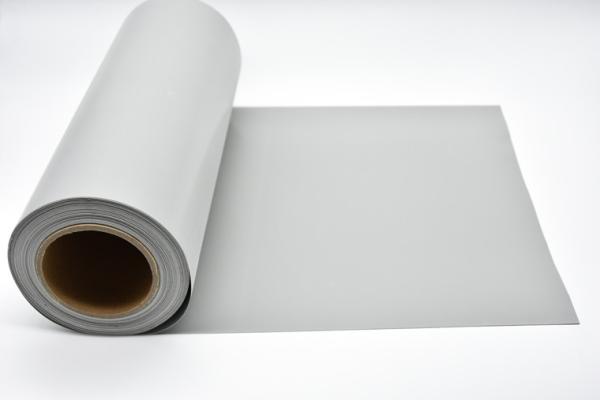

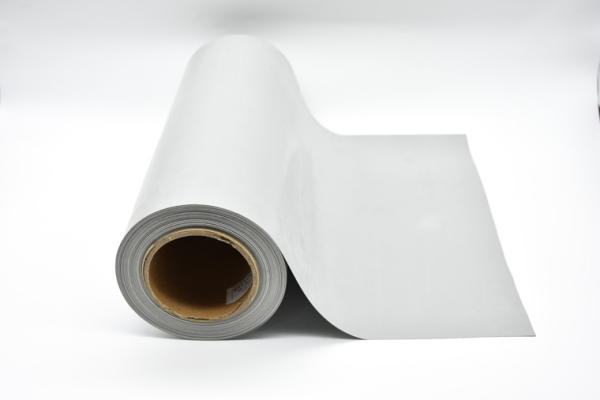

TIF100-86-30 High Temperature Silicone Insulation Materials For Heat Sink
TIF100-86-30 High Temperature Silicone Insulation Materials For Heat Sink
TIF100-86-30 High Temperature Silicone Insulation Materials For Heat Sink
TIF100-86-30 High Temperature Silicone Insulation Materials For Heat Sink
Specifications
Brand Name :
Ziitek
Model Number :
TIF100-86-30
Certification :
UL and RoHs
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
High Temperature Silicone Insulation Materials For Heat Sink
Construction & Compostion :
Ceramic Filled Silicone Elastomer
Thermal Conductivity :
2.5W/mK
Continuous use temp :
-60~250℃
Color :
White
Specific Gravity :
2.33g/cc
Keywords :
Insulation Materials
Application :
Heat Sink
Description

TIF100-86/30 High Temperature Silicone Insulation Materials For Heat Sink

TISTM100-86/30 Series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

Features


> Highly thermal conductive 2.5W/mK
> High dielectric strength
> Low thermal resistance with high voltage isolation

> Easy release construction
> Resistant to teaars and punctures


Applications


> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

> Notebook
> Power supply
> Memory Modules
> Mass storage devices

Typical Properties of TISTM100-86/30 series
Product Name TIS100-86/30 Test Method
Color White Visual
Construction &Compostion Ceramic filled silicone elastomer *******
Composite Thickness 0.125mm to 0.500mm ASTM D374
Specific Gravity 2.33g/cc ASTM D297
Hardness 75 Shore A ASTM D751
Tensile strength 1.5N/mm2 ASTM D412
Continuous Use Temp -60 to 250℃ *******
Dielectric Breakdown Voltage >1500 Vac ASTM D149
Dielectric Constant 3.0MHz ASTM D150
Volume Resistivity 14X1012 Ohm-meter ASTM D257
Flame Rating 94 V0 E331100
Thermal conductivity 2.5W/mK ASTM D547

Product Specification

Product Thicknesses

TIS 105-86/30: 0.125mmTIS 109-86/30: 0.225mmTIS 112-86/30: 0.300mmTIS 116-86/30: 0.400mmTIS 120-86/30: 0.500mm

Product Sizes
12" x 160(304mm x 48.76M)
lndividual die cut shapes and custom thickness can be supplied.

Pleasecontact us for confirming.
The product come standard withfiberglass reinforcement designatedby the suffix " FG".

TIF100-86-30 High Temperature Silicone Insulation Materials For Heat Sink

Packaging Details & Lead time

The packaging of Thermal Insulation Materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
