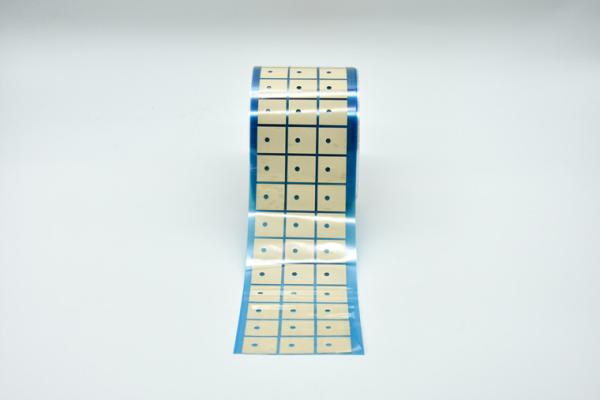

TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics
TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics
TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics
TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics
Specifications
Brand Name :
Ziitek
Model Number :
TIF100-86-37
Certification :
UL and RoHs
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics
Specific Gravity :
2.29g/cc
Construction & Compostion :
Ceramic Filled Silicone Elastomer
Thermal Conductivity :
1.8W/mK
Continuous use temp :
-60~250℃
Color :
Green
Keywords :
Silicone Insulation Material
Application :
Automotive Electronics
Description

TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics

TISTM100-86-37 Series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

Features


> Highly thermal conductive 1.8W/mK
> High dielectric strength
> Low thermal resistance with high voltage isolation

> Easy release construction
> Resistant to teaars and punctures


Applications


> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics

Typical Properties of TISTM100-86/37 series
Product Name TIS100-86/37 Test Method
Color Green Visual
Construction &Compostion Ceramic filled silicone elastomer *******
Composite Thickness 0.125mm to 0.500mm ASTM D374
Specific Gravity 2.29g/cm3 ASTM D297
Hardness 70 Shore A ASTM D751
Tensile strength 2.0N/mm2 ASTM D412
Continuous Use Temp -60 to 250℃ *******
Dielectric Breakdown Voltage >8K Vac ASTM D149
Dielectric Constant 2.9 MHz ASTM D150
Volume Resistivity 4X1012 Ohm-meter ASTM D257
Flame Rating 94 V0 E331100
Thermal conductivity 1.8W/mK ASTM D547

Product Specification

Product Thicknesses

TIS 105-86/30: 0.125mm

TIS 109-86/30: 0.225mm

TIS 112-86/30: 0.300mm

TIS 116-86/30: 0.400mm

TIS 120-86/30: 0.500mm

Product Sizes
12" x 160(304mm x 48.76M)
lndividual die cut shapes and custom thickness can be supplied.

Pleasecontact us for confirming.
The product come standard withfiberglass reinforcement designatedby the suffix " FG".

TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics

Packaging Details & Lead time

The packaging of Thermal Insulation Materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
