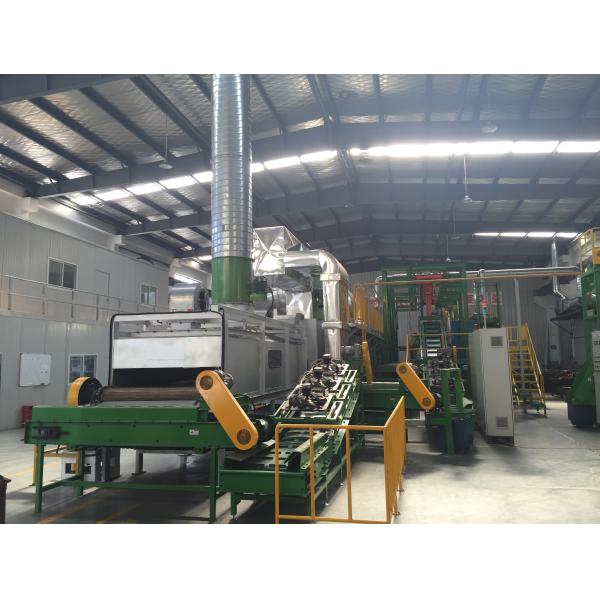

Metal Industrial Paint Curing Oven 1200 Mm Mesh Belt Width Low Noise
Metal Industrial Paint Curing Oven 1200 Mm Mesh Belt Width Low Noise
Specifications
Brand Name :
SHESHENG
Model Number :
SL 2400
Certification :
ISO9001 CE
Place of Origin :
Changzhou in china
MOQ :
1 set
Price :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
6 Sets per Month
Delivery Time :
Two months after receipt of advance payment
Packaging Details :
40 HQ
Body Length :
24 m
Temperature Range :
100-400 ℃
Mesh Belt Width :
1200 mm （customized）
Maximum Workpiece Height :
600 mm
Mesh Belt Speed :
0.2-0.8m/min
Average Air Consumption :
55 m³/H（big fire）
Power :
38 KW
Control System :
Siemens Germany
Burner Brand :
SHOEI Japan
Description

Metal Industrial Paint Curing Oven 1200 Mm Mesh Belt Width Low Noise

Product Description

1. Technological process:

Loading

Leveling

Drying(Pre-heating)

Curing

Cooling

Unloading

2. Main structure:

Mainly structured of Loading and uncloading sections , HL Cooling System, Convey Unit, Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automaticly controlled with the speed of mesh-blet regulated, it can fully satisfy all curing processes.

3. Main parameter : (Based on M10)

Outside dimension

28×2×1.9(L*W*H)

m

Inside dimension

14×1.2×0.3 (L*W*H)

m

Max curing temperature

400

℃

Temperature uniformity control

±2

℃

Max load capacity/mesh-belt

220

kg/m²

Avg.gas consumption

25

m³/h

Max output

9000

kg/h

Belt convey speed

0.2~1

m/min

Metal Industrial Paint Curing Oven 1200 Mm Mesh Belt Width Low Noise
