Zinc Base Coating Composite Curing Oven 24 M Length 0.2-1 M/Min Belt Speed
Zinc Base Coating Composite Curing Oven 24 M Length 0.2-1 M/Min Belt Speed
Specifications
Brand Name :
SHESHENG
Model Number :
SL2400
Certification :
ISO9001 CE
Place of Origin :
Changzhou in china
MOQ :
1 set
Price :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
6 Sets per Month
Delivery Time :
Two months after receipt of advance payment
Packaging Details :
40 HQ
Temperature Range :
100-400℃
Mesh Belt Speed :
0.2-1m/min
Mesh Belt Width :
1200mm
Maximum Workpiece Height :
400mm
Length :
24 m
Power :
460KW
Description

Zinc Base Coating Composite Curing Oven 24 M Length 0.2-1 M/Min Belt Speed

Paint Drying Ovens, also referred to as Dryers or Paint Curing Ovens or Paint Baking Oven removes the moisture from water-based coatings and adhesives. Paint Drying Ovens are also removes water from the surface or interior of products with the help of thermostatic controls in case of electrical heating and temperature controllers operating solenoid valves in case of steam, gas and oil heating.

Product Description

1. Technological process:

Loading

Leveling

Drying(Pre-heating)

Curing

Cooling

unloading

2. Main structure:

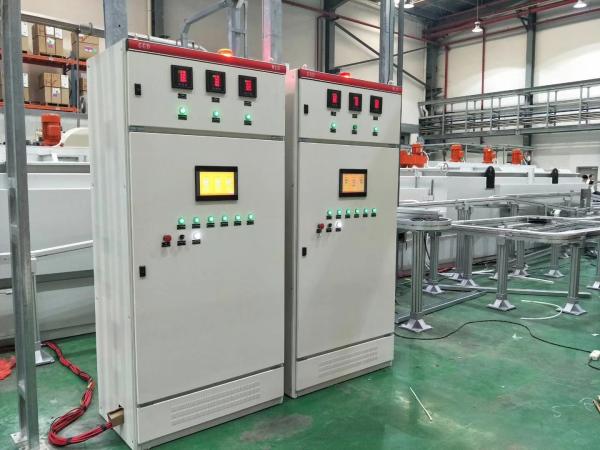

Mainly structured of Loading and uncloading sections , HL Cooling System, Convey Unit, Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automaticly controlled with the speed of mesh-blet regulated, it can fully satisfy all curing processes.

3. Main parameter : (Based on M10)

Outside dimension

28×2×1.9(L*W*H)

m

Inside dimension

14×1.2×0.3 (L*W*H)

m

Max curing temperature

400

℃

Temperature uniformity control

±2

℃

Max load capacity/mesh-belt

220

kg/m²

Avg.gas consumption

25

m³/h

Max output

9000

kg/h

Belt convey speed

0.2~1

m/min

Zinc Base Coating Composite Curing Oven 24 M Length 0.2-1 M/Min Belt Speed
