IBM Plastic Bottle injection Iml Blow Moulding Machine For Beverage Industry
IBM Plastic Bottle injection Iml Blow Moulding Machine For Beverage Industry
IBM Plastic Bottle injection Iml Blow Moulding Machine For Beverage Industry
IBM Plastic Bottle injection Iml Blow Moulding Machine For Beverage Industry
Specifications
Brand Name :
Zl-Qiang
Model Number :
ZQ60
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
40000
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
10 set/ Month
Delivery Time :
50
Packaging Details :
20'Container
Product Name: :
Plastic Bottle Molding Machine
Screw Diameter :
45mm
Screw L/D :
22:01%
Injection weight :
260g
Heating power :
14KW
Number of barrel zone :
3+N
Net weight  :
5 Ton
Cooling water pressure :
0.3-0.4 MPa
Description

IBM Plastic Bottle Molding Machine for Beverage Industry

IBM Plastic Bottle Molding Machine Description

IBM (Injection Blow Molding) machines have revolutionized the pharmaceutical packaging industry by offering advanced manufacturing capabilities.

Injection blow molding (IBM) is a manufacturing process used to produce hollow plastic parts. IBM machines are typically used to create items such as bottles and containers. IBM combines the injection molding process, where a melted plastic material is injected into a mold cavity, with the blow molding process, where the material is formed into the desired shape using compressed air.

IBM Plastic Bottle Molding Machine Details

Item Unit ZQ60
Injection System
Screw Diameter mm 45
Screw L/D % 22:01
Injection weight g 260
Heating power KW 14
Number of barrel zone 3+N
Injection stroke mm 160
Clamping System
Clamping force of injection KN 600
Opening stroke for injection mm 140
Clamping force of blowing KN 100
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould
Max.Platen size(L*W) mm 600*390
Mold thickness mm 240
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 230
Hydraulic system
Hydraulic Pressure Map 14
Motor power KW 22
Dry cycle S 4
Total Power KW 37
Operating power % 52-70
Others
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 3.5*1.4*1.8
Net weight Ton 5
Bottle Volume
Cavity Number Machine Model 10ml 30ml 60ml 100ml 250ml 500ml 1000ml
ZQ40 9 8 6 4 3 2 1
ZQ60 14 12 10 8 5 3 2
ZQ80 20 18 14 12 8 5-6 3-4
ZQ110 24 22 18 14 10 8 6
ZQ135 30 26 22 18 14 10 8

IBM Injection Blow Molding Machine application

Automotive Components: IBM machines can be employed to create automotive parts such as reservoirs, fluid containers, and other hollow components.

Household Products: IBM machines are used for manufacturing a wide range of household items like detergent bottles, cleaning product containers, and storage containers.

Personal Care Products: IBM machines are suitable for producing containers for personal care products such as shampoo bottles, lotion containers, and soap dispensers.

ZIQIANG MACHINE Comapany Information :

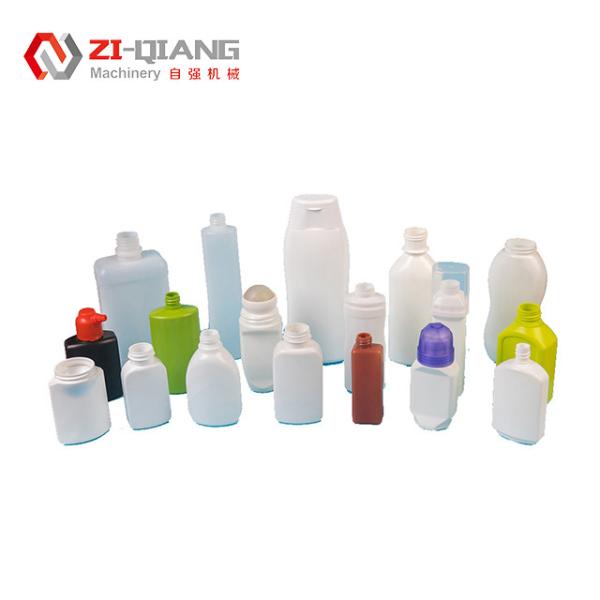

The company's product applications cover pharmaceutical packaging, food packaging, health care packaging, cosmetic packaging, and other plastic packaging. lt canproduce 1ml-1000ml plastic products such as HDPE, LDPE, PP, PS (lactic acid bacte.ria), high transparent PS, ABS, environmental corn material, EVA, PCTG and so on.

IBM Plastic Bottle injection Iml Blow Moulding Machine For Beverage Industry

IBM Plastic Bottle injection Iml Blow Moulding Machine For Beverage IndustryIBM Plastic Bottle injection Iml Blow Moulding Machine For Beverage Industry

Why choose us?

1. Provide comprehensive training for customers.

2. Ensure 100% operational stability of products before delivery.

3. Offer "pre-sales," "in-sales," and "after-sales" solutions to customers 24 hours.

4. Customized design to meet various needs of different customers.

5. 24 hours debugging, with after-sales personnel ready at all times.

6. Provide a complete set of production lines.

7. Offer online product testing equipment, image inspection, and reliable quality control.

8. Our company provides a one-year warranty for equipment molds and lifetime maintenance.
