Hollow Plastic IBM Injection Stretch Blow Molding Machine For Industrial Packaging
Hollow Plastic IBM Injection Stretch Blow Molding Machine For Industrial Packaging
Specifications
Brand Name :
Zl-Qiang
Model Number :
ZQ110
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
100000
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
10 set/ Month
Delivery Time :
50
Packaging Details :
20'Container
Product Name: :
IBM Injection Blow Molding Machines
Screw Diameter :
65mm
Screw L/D :
22:01%
Injection weight :
415g
Heating power :
22kw
Number of barrel zone :
6+N
Injection stroke :
200mm
Net weight  :
15 Ton
Application :
Plastic Manufacturing 、Cosmetic Packaging 、Personal Care Products
Description

IBM Injection Blow Molding Machines For Industrial Packaging

ZQ110 IBM Injection Blow Molding Machine PP PE Bottle 110 Ton Machine

IBM machine Description

IBM machines are extensively used for producing various types of bottles, including pharmaceutical bottles, cosmetic containers, and food and beverage packaging.

An injection blow molding machine is a type of equipment used in the manufacturing process of hollow plastic products, particularly bottles and containers.

An injection blow molding machine combines the processes of injection molding and blow molding to create hollow plastic products with precise dimensions and high quality finishes.

ZQ Series Injection Blow Mould Features

1. Full European-style structure, the clamping force is 20%-30% larger than the products in the same industry.

2. Standard servo rotation, simple structure and convenient operation.

3. Unique pressurized clamping structure, the booster cylinder does not participate in the opening and closing mode, and the energy consumption is 10%-20% lower than that of the same industry.

Injection Blow Molding Machine Details

Item Unit ZQ110
Injection System
Screw Diameter mm 65
Screw L/D % 22:01
Injection weight g 415
Heating power KW 22
Number of barrel zone 6+N
Injection stroke mm 200
Clamping System
Clamping force of injection KN 1100
Opening stroke for injection mm 140
Clamping force of blowing KN 150
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould
Max.Platen size(L*W) mm 1100*460
Mold thickness mm 280
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 260
Hydraulic system
Hydraulic Pressure Map 14
Motor power KW 37+37
Dry cycle S 4
Total Power KW 90
Operating power % 52-70
Others
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 5*1.8*2.2
Net weight Ton 15
Bottle Volume
Cavity Number Machine Model 10ml 30ml 60ml 100ml 250ml 500ml 1000ml
ZQ40 9 8 6 4 3 2 1
ZQ60 14 12 10 8 5 3 2
ZQ80 20 18 14 12 8 5-6 3-4
ZQ110 24 22 18 14 10 8 6
ZQ135 30 26 22 18 14 10 8

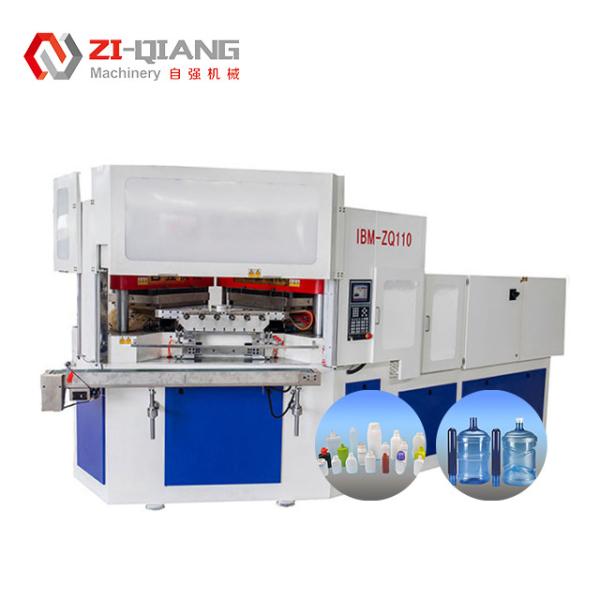

ZQ110 IBM Injection Blow Molding Machine :

Hollow Plastic IBM Injection Stretch Blow Molding Machine For Industrial Packaging

ZIQIANG MACHINE FACTORY :

The company's product applications cover pharmaceutical packaging, food packaging, health care packaging, cosmetic packaging, and other plastic packaging. lt canproduce 1ml-1000ml plastic products such as HDPE, LDPE, PP, PS (lactic acid bacte.ria), high transparent PS, ABS, environmental corn material, EVA, PCTG and so on.
