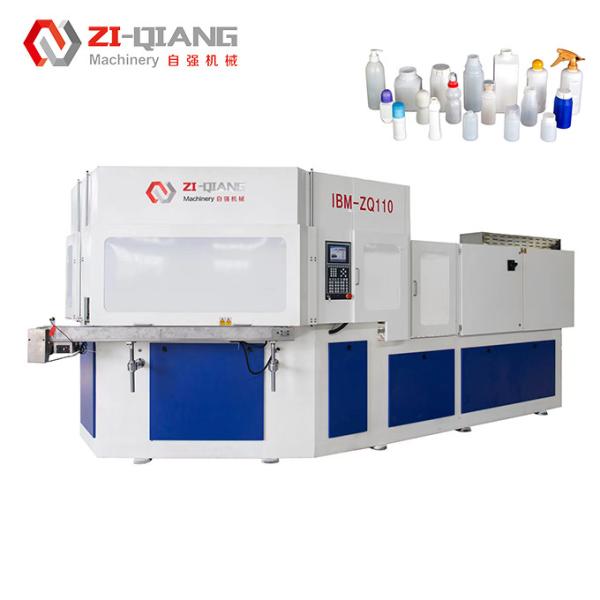

Precision IBM Injection Blow Molding Machine For PE PP Pharmaceutical Bottle
Precision IBM Injection Blow Molding Machine For PE PP Pharmaceutical Bottle
Precision IBM Injection Blow Molding Machine For PE PP Pharmaceutical Bottle
Precision IBM Injection Blow Molding Machine For PE PP Pharmaceutical Bottle
Specifications
Brand Name :
Zl-Qiang
Model Number :
ZQ110
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
100000
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
10 set/ Month
Delivery Time :
50
Packaging Details :
20'Container
Product Name: :
IBM Injection Blow Molding Machines
Screw Diameter :
65mm
Screw L/D :
22:01%
Injection weight :
415g
Heating power :
22kw
Number of barrel zone :
6+N
Injection stroke :
200mm
Net weight  :
15 Ton
Application :
Plastic Manufacturing 、Cosmetic Packaging 、Personal Care Products
Description

Precision IBM Injection Blow Molding Machines for Pharmaceutical Containers

ZQ110 IBM Injection Blow Molding Machine PP PE Bottle 110 Ton Machine

IBM machine Description

IBM machines can create bottles of various sizes, shapes, and designs, catering to diverse packaging needs.

IBM machines offer precise control over the molding process, ensuring consistent bottle dimensions and quality.

IBM machine Applications:
Injection blow molding machines are commonly used in industries such as packaging, cosmetics, pharmaceuticals, and consumer goods for producing items like bottles, containers, jars, and other hollow plastic products.

IBM machine Advantages:

· Cost-effective for high-volume production.

· Reduced material wastage compared to other molding processes.

· Enhanced design flexibility for complex shapes and patterns.

· Suitable for producing lightweight yet durable products.

Injection Blow Molding Machine Details

Item Unit ZQ110
Injection System
Screw Diameter mm 65
Screw L/D % 22:01
Injection weight g 415
Heating power KW 22
Number of barrel zone 6+N
Injection stroke mm 200
Clamping System
Clamping force of injection KN 1100
Opening stroke for injection mm 140
Clamping force of blowing KN 150
Opening stroke for blowing mm 140
Lifing height of rotary table mm 70
Mould
Max.Platen size(L*W) mm 1100*460
Mold thickness mm 280
Dia.of bottle mm 120
Bottle height mm 220
Suitable bottle height mm 1-1000
Stripping stroke mm 260
Hydraulic system
Hydraulic Pressure Map 14
Motor power KW 37+37
Dry cycle S 4
Total Power KW 90
Operating power % 52-70
Others
Min.Air pressure of compressed air MPa 0.7-1.2
Compressed air capacity M³/min 0.7
Water flowage M³/h 4
Cooling water pressure MPa 0.3-0.4
Dimension(L*W*H) M 5*1.8*2.2
Net weight Ton 15
Bottle Volume
Cavity Number Machine Model 10ml 30ml 60ml 100ml 250ml 500ml 1000ml
ZQ40 9 8 6 4 3 2 1
ZQ60 14 12 10 8 5 3 2
ZQ80 20 18 14 12 8 5-6 3-4
ZQ110 24 22 18 14 10 8 6
ZQ135 30 26 22 18 14 10 8

Benefits of IBM Machines in Bottle Production

Precision: IBM machines offer precise control over the molding process, ensuring consistent bottle dimensions and quality.

Efficiency: The integration of injection and blow molding in a single machine streamlines the production process, reducing cycle times and increasing productivity.

Versatility: IBM machines can create bottles of various sizes, shapes, and designs, catering to diverse packaging needs.

ZQ110 IBM Injection Blow Molding Machine :

Precision IBM Injection Blow Molding Machine For PE PP Pharmaceutical Bottle

ZIQIANG MACHINE FACTORY :

The company's product applications cover pharmaceutical packaging, food packaging, health care packaging, cosmetic packaging, and other plastic packaging. lt canproduce 1ml-1000ml plastic products such as HDPE, LDPE, PP, PS (lactic acid bacte.ria), high transparent PS, ABS, environmental corn material, EVA, PCTG and so on.
