Diamond Polished Wear Resistance Precision Zirconia Ceramic Piston
Diamond Polished Wear Resistance Precision Zirconia Ceramic Piston
Diamond Polished Wear Resistance Precision Zirconia Ceramic Piston
Diamond Polished Wear Resistance Precision Zirconia Ceramic Piston
Specifications
Brand Name :
Manyoung
Model Number :
Diamond Polished Wear Resistance Precision Zirconia Ceramic Piston
Place of Origin :
Suzhou,China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month for Zirconia Ceramic Piston for High Pressure Pump
Delivery Time :
20days
Packaging Details :
standard pack, carton box、wooden box
Filling Volumes :
1-100ml
Feature :
Self-Lubricating/Wear Resistance
Theory :
Vacuum Pump
Keyword :
Diamond Polished Wear Resistance Precision Zirconia Ceramic Piston
Application :
Metering, Precision Filling Equipment
Specification :
Customised
Transport Package :
Wooden Case with Foam Filled
Material :
Zirconia Ceramic
color :
black,yellow,white
Description

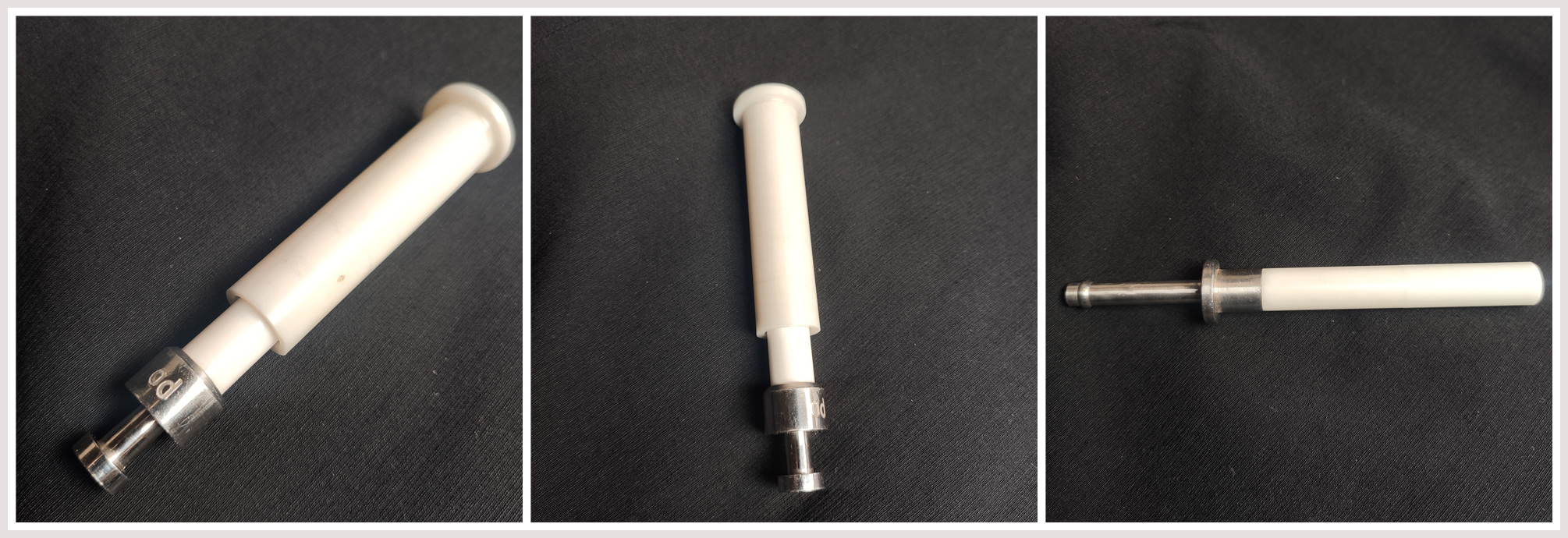

Diamond Polished Wear Resistance Precision Zirconia Ceramic Piston

Description:

Zirconia ceramic parts are made of zirconium oxide ceramics which is a kind of strongest technical ceramic material with exceptional strength, high toughness, and superb reliability. These outstanding characteristics result in excellent resistance to wear and corrosion. With our production capability through CNC, precision grinding machines, we are able to provide many different levels of precision zirconia ceramic parts to meet customers' high precision assembly needs



Technical Parameters:

Performance Unit Typical value
Density g/cm3 >6.0
HV Hardness Kg/mm2 >1300
Compressive Strength MPa 5500
Flexural Strength MPa 1250
Modulus of Elasticity Gpa 200
Thermal Conductivity W/(m.k) 3(20-400℃)
Thermal Expansivity Cofficient 10^-6K^-1 10
Facture Toughness Mpa.m0.5 8
Grain Size um 0.5

features:

1.Use temperatures up to 2400°C
2.High density
3.Low thermal conductivity (20% that of alumina)
4.Chemical inertness
5.Resistance to molten metals
6.Ionic electrical conduction
7.Wear resistance
8.High fracture toughness
9.High hardness

Application of Zirconia Ceramic Piston:

1. Topical and parenterals: inject able in vials, ampoule, syringes, enema.
2. Entrails: syrups, capsules, drop

3. Cosmetics:Perfumes, lotions, creams, pastes, shampoo and make-up.

4. auto mobile industrial,

5. oil drilling equipment, insulation parts in electrical equipment.

More pictures:

Diamond Polished Wear Resistance Precision Zirconia Ceramic Piston

Diamond Polished Wear Resistance Precision Zirconia Ceramic Piston

Diamond Polished Wear Resistance Precision Zirconia Ceramic Piston

Diamond Polished Wear Resistance Precision Zirconia Ceramic Piston
