Zirconia Alumina Ceramic Nozzle 5000Mpa 88HRA Precise Grinding
Zirconia Alumina Ceramic Nozzle 5000Mpa 88HRA Precise Grinding
Zirconia Alumina Ceramic Nozzle 5000Mpa 88HRA Precise Grinding
Zirconia Alumina Ceramic Nozzle 5000Mpa 88HRA Precise Grinding
Specifications
Brand Name :
China
Model Number :
008
Place of Origin :
Suzhou,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
25 days
Packaging Details :
Box, Carton, Wooden, Bag etc. Customized package
Product name :
Customized High Purity Alumina Ceramic Zirconia Ceramic Nozzle
Material :
Alumina Ceramic
Application :
Industrial Ceramic
Length :
3mm ~ 2000mm
Water Absorption :
0%
Electrical Insulation :
excellent
Density :
3.9g/cm3
Description

Customized High Purity Alumina Ceramic Zirconia Ceramic Nozzle

Description:

A sandblaster is an ingenious tool that helps in preparing the parts that are used for operation, for example, powder coating. A sandblaster usually assists in removing paint, rust and other surface imperfections. It is also useful when working on jobs involving trucks, cars, machinery, brick, steel and more.

Technical Parameters:

Test item/Unit Numerical Value Test item/Unit Numerical
Product Material Alumina Zirconia Product Material Alumina Zirconia
Component Content % ≥99% ≥95% ≥90% Volume Resistance MM >1012 >1012 >1012
Sintering Temp ℃ 1780-1800 1650-1680 1550-2600 Bending Strength Mpa 400 320 1100
Specific Gravity g/cm3 ≥3.8 ≥3.6 >6 Thermal Expansion Coefficient'10' 6.8-8.0 6.2-8.5 6.9-10
Breakdown Voltage
Strength kv/mm		 15 15 15 Roughness um ≤0.8 ≤0.8 ≤0.8
Bibulous Rate% <0.01 <0.01 <0.01 Mirror Polished Ra ≤0.05 ≤0.1 ≤0.05
Anti Pressure Mpa 3700Mpa 2400Mpa 5000Mpa Thermal Conductivity W/m.k 25 20 25
Hardness Hra ≥88 ≥82 ≥88 Temperature Resistance ℃ 1700 1600 1800


Advantages:

1. Excellent insulation ,security , long working life .
2. Precise grinding and polishing.
3. Excellent heat radiation, small size ,more environmental and energy-efficient .
4. good thermal conductivity.
5. large specific heat capacity.
6. low pressure drop.
7. good heat-shock resisting ability.
8. Working temperature: 600℃-1200℃.

Application:

Assembling Power Head Components in a Sand Blaster

Insert nozzle into the Power Head and secure
Make use of an allen key
Insert the siphon air jet into the power head.

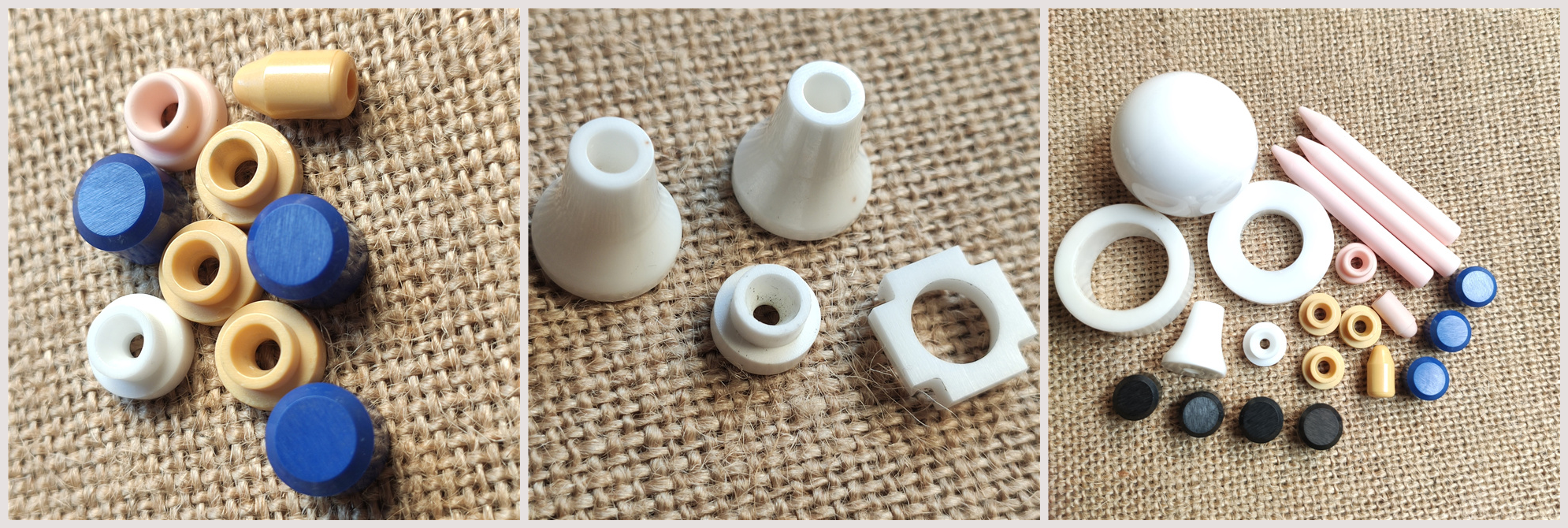

More pictures:

Zirconia Alumina Ceramic Nozzle 5000Mpa 88HRA Precise Grinding

Zirconia Alumina Ceramic Nozzle 5000Mpa 88HRA Precise Grinding

Zirconia Alumina Ceramic Nozzle 5000Mpa 88HRA Precise Grinding
