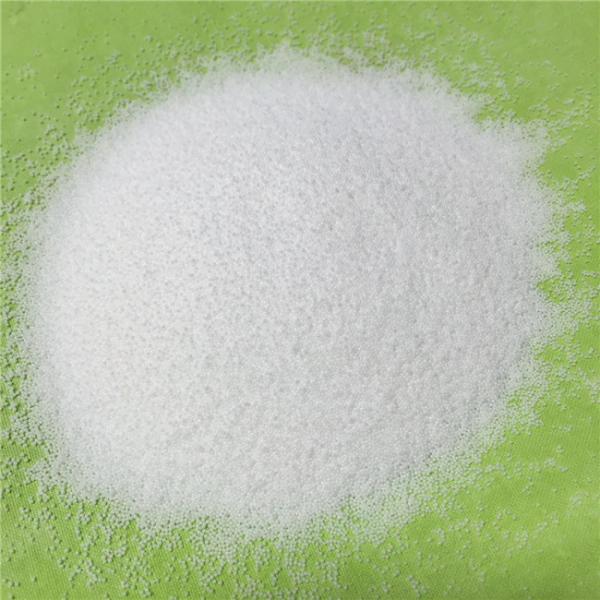

6.0 Density Yttria Stablized Zirconia Grinding Beads Grinding Balls For Mining
6.0 Density Yttria Stablized Zirconia Grinding Beads Grinding Balls For Mining
6.0 Density Yttria Stablized Zirconia Grinding Beads Grinding Balls For Mining
6.0 Density Yttria Stablized Zirconia Grinding Beads Grinding Balls For Mining
Specifications
Brand Name :
Manyoung
Model Number :
Customer's Requirements
Certification :
Ceramic Balls
Place of Origin :
Suzhou
MOQ :
1 KG
Price :
$50.00 - $200.00 / Kilogram
Payment Terms :
T/T,
Supply Ability :
1000 Ton/Tons per Month zirconia ceramic grinding balls / beads
Delivery Time :
7 work days
Packaging Details :
The standard package is 25KG/barrel, 1-1.5tons/pallet, 20-25tons/20'container
Product Name: :
6.0 density Yttria stablized zirconia milling grinding beads
Roundness :
≥97%
Specific density :
≥6.06g/cm3
Hardness(HV) :
>9Moh's
Advantage :
Excellent Wear Resistance
Grain size :
<0.1um
Self consumption (ppm) :
<1
Color :
Pure White
Description

6.0 density Yttria stablized zirconia milling grinding beads

Descirption:

Yttria stablized zirconia beads are made of high-grade and nanometre Yttria Stabilized Zirconia (YSZ) which is proudly produced by our own facility in large and homogenous batches. This advanced precursor material guarantees excellent mechanical properties, outstanding wear resistance and good corrosion resistance. This high density bead is used to achieve maximum milling results at minimum product contamination rates.

It provides a better size distribution. It also offers better wear resistance and more delicate internal crystal structure compared to any other finishing media. As a result, zirconia balls are a credible alternative to stainless steel .

Physical parameters

Items Specification
ZrO2 94.7±0.2%
Y2O3 5.2±0.2%
Bulk Density ≥3.72g/cm3
Specific Density >6.03g/cm3
Compressive strength >2.0KN (Φ1.5mm)
Hardness(HV) >1200
Self consumption (ppm/h) <3
Roundness ≥95%
Color Pure White

Available Size (mm)

0.08-0.15 0.1-0.2 0.2-0.25 0.2-0.3 0.3-0.4 0.4-0.5
0.5-0.6 0.4-0.6 0.6-0.8 0.7-0.8 0.8-1.0 0.9-1.1
1.0-1.2 1.2-1.4 1.4-1.6 1.6-1.8 1.8-2.0 2.0-2.2

2.2-2.4

2.4-2.6 2.6-2.8 2.8-3.0 3.0 5.0
6.0 7.0 8.0 10.0 12 15
20 25 30 35 40 50

advantages:

1.High density media ideal for high energy mills, maximizing throughput and productivity.

2.High fracture toughness and high wear resistance minimize the contamination of beads during high speed milling.

3.At least 15% superior to Ceria Stabilized Zirconia medias in wear rate through many tests.

4.Highest consistency from bead to bead in size distribution, sphericity, density and hardness.

5.No Metallic Contamination and Lowest Dust Generation.

Applications:

1.Coating, paints, printing and inkjet inks.
2.Pigments and dyes.
3.Chemicals including Agrochemicals e.g. fungicides, insecticides.
4.Electronic materials and components e.g. CMP slurry, ceramic capacitors, lithium iron phosphate battery.
5.Pharmaceuticals,Food.

More pictures:

6.0 Density Yttria Stablized Zirconia Grinding Beads Grinding Balls For Mining

Packaging:

6.0 Density Yttria Stablized Zirconia Grinding Beads Grinding Balls For Mining
