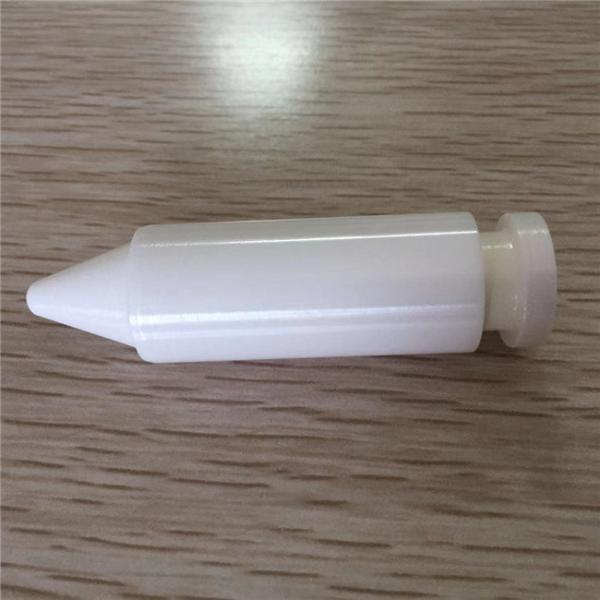

High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar
High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar
High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar
High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar
High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar
High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar
Specifications
Brand Name :
China
Place of Origin :
Suzhou,China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000pcs
Delivery Time :
5-8 days
Packaging Details :
carton box、wooden box
Model Number :
008
Name :
High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar
Color :
blue,white,black
Material :
Zirconia Ceramic
Shape :
Cylindrical
Density :
6.0g/cm3
Bulk density :
>3.75 g/cm3
Application :
Industrial Ceramic
Hardness :
>1300kg/cm2
Description

High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar

Technical Parameters:

Name: High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar Surface: Polishing
Dimension: According Your Request Technology: Machining
Material: Zirconia Ceramic MOQ: 5PCS
Size: Customized Shipping: DHL EMS UPS FEDEX TNT
Item: Chemically Resistant Industrial Ceramic Parts Oil Drilling Machines OEM: Yes And welcome


Principal characteristic:

High strength,

High fracture toughness,
High hardness and High density,
High temperature resistance,
Stability, Wear resistance, Corrosion resistance.

Test item/Unit Numerical Value Test item/Unit Numerical
Product Material Alumina Zirconia Product Material Alumina Zirconia
Component Content % ≥99% ≥95% ≥90% Volume Resistance MM >1012 >1012 >1012
Sintering Temp ℃ 1780-1800 1650-1680 1550-2600 Bending Strength Mpa 400 320 1100
Specific Gravity g/cm3 ≥3.8 ≥3.6 >6 Thermal Expansion Coefficient'10' 6.8-8.0 6.2-8.5 6.9-10
Breakdown Voltage
Strength kv/mm		 15 15 15 Roughness um ≤0.8 ≤0.8 ≤0.8
Bibulous Rate% <0.01 <0.01 <0.01 Mirror Polished Ra ≤0.05 ≤0.1 ≤0.05
Anti Pressure Mpa 3700Mpa 2400Mpa 5000Mpa Thermal Conductivity W/m.k 25 20 25
Hardness Hra ≥88 ≥82 ≥88 Temperature Resistance ℃ 1700 1600 1800

Advantages:

1. Good smooth and high strength.

2. Extreme hardness, good protection from abrasion and corrosion.

3. High temperature resistance up to 1800℃

4. High dielectric properties.

5.Optimum air tightness

More Picture:

High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar

High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar

High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar

High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar

High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar

High purity High strength industrial yttrium stabilized zirconia ceramic insulation pillar
