99% Alumina Ceramic Pistons High Pressure Plunger Pumps
99% Alumina Ceramic Pistons High Pressure Plunger Pumps
99% Alumina Ceramic Pistons High Pressure Plunger Pumps
99% Alumina Ceramic Pistons High Pressure Plunger Pumps
Specifications
Brand Name :
China
Model Number :
008
Place of Origin :
Suzhou,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
25 days
Packaging Details :
Box, Carton, Wooden, Bag etc. Customized package
Name :
99% Alumina Ceramic Pistons for High Pressure Plunger Pumps
Material :
Alumina Ceramic
Application :
Industrial Ceramic
Length :
3mm ~ 2000mm
Water Absorption :
0%
Electrical Insulation :
excellent
Density :
3.9g/cm3
Description

99% Alumina Ceramic Pistons for High Pressure Plunger Pumps


Description:

The ceramic plunger adopts the ultra-hard wear resistance of modern engineering ceramic materials, and can be assembled by ceramic metallization bonding, welding, inlay and socket technology. It is an ideal substitute for similar metal pumps and has been widely used in medical equipment, environmental engineering, petroleum, chemical and other industries.

Technical Parameters:

Test item/Unit Numerical Value Test item/Unit Numerical
Product Material Alumina Zirconia Product Material Alumina Zirconia
Component Content % ≥99% ≥95% ≥90% Volume Resistance MM >1012 >1012 >1012
Sintering Temp ℃ 1780-1800 1650-1680 1550-2600 Bending Strength Mpa 400 320 1100
Specific Gravity g/cm3 ≥3.8 ≥3.6 >6 Thermal Expansion Coefficient'10' 6.8-8.0 6.2-8.5 6.9-10
Breakdown Voltage
Strength kv/mm		 15 15 15 Roughness um ≤0.8 ≤0.8 ≤0.8
Bibulous Rate% <0.01 <0.01 <0.01 Mirror Polished Ra ≤0.05 ≤0.1 ≤0.05
Anti Pressure Mpa 3700Mpa 2400Mpa 5000Mpa Thermal Conductivity W/m.k 25 20 25
Hardness Hra ≥88 ≥82 ≥88 Temperature Resistance ℃ 1700 1600 1800


Advantages:

1.Corrosion resistance, high temperature resistance, wear resistance, high pressure resistance;
2.Pump surface mirror, low friction, high hardness;
Environmentally friendly ceramic materials,
3.No powder precipitation, avoid medium pollution;
4.In the process of injection, there is no bubble, with high accuracy, and the injection accuracy is controlled at +0.5%.

Application:

1.Kiln furniture, components & accessories.
2.Thermocouple protection tubes.
3.Heater Support Elements.
4.High Temperature Electrical Insulators.
5.Extreme temperature measurement components.

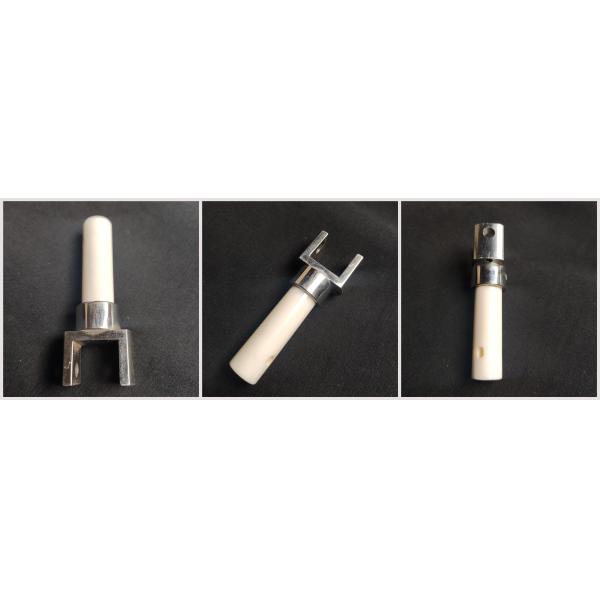

More pictures:

99% Alumina Ceramic Pistons High Pressure Plunger Pumps

Packaging:

99% Alumina Ceramic Pistons High Pressure Plunger Pumps

Why Choose Us?

1. 5 years of professional production industrial ceramics factory.
2.High quality products with low price.
3.High precision parts with lowest tolerance.
4.Short time for production.
5.Has a group of experienced, professional and efficient R&D team.
6.Has a good reputation in China and abroad.
7.MOQ is not limited, small quantity is welcome.
8.Vigorous team and good after-sales service.
