Diamond Polished Alumina Ceramic Parts Wear Resistance Precision Alumina Ceramic Tube
Diamond Polished Alumina Ceramic Parts Wear Resistance Precision Alumina Ceramic Tube
Diamond Polished Alumina Ceramic Parts Wear Resistance Precision Alumina Ceramic Tube
Diamond Polished Alumina Ceramic Parts Wear Resistance Precision Alumina Ceramic Tube
Specifications
Brand Name :
China
Model Number :
008
Place of Origin :
Suzhou,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
25 days
Packaging Details :
Box, Carton, Wooden, Bag etc. Customized package
Name :
Diamond Polished Wear Resistance Precision Alumina Ceramic Tube
Density :
3.9g/cm3
Material :
Alumina Ceramic
Application :
Industrial Ceramic
Length :
3mm ~ 2000mm
Water Absorption :
0%
Electrical Insulation :
excellent
Description

Diamond Polished Wear Resistance Precision Alumina Ceramic Tube

Description:

Alumina Ceramic (Aluminum Oxide or Al2O3) is an excellent electrical insulator and one of the most widely used advanced ceramic materials. Additionally, it is extremely resistant to wear and corrosion. UNIPRETEC offers a variety of alumina compositions, including 92% Alumina, 95% Alumina, 96% Alumina, 99% Alumina, 99.5% Alumina and 99.8% Alumina, but the 95% Alumina and 99% are the most widely used materials. Alumina components can be formed by a variety of manufacturing techniques such as uniaxial pressing, isostatic pressing, injection molding and extrusion. Finishing can be accomplished by precision grinding and lapping, laser machining and a variety of other processes.

Technical Parameters:.

Test item/Unit Numerical Value Test item/Unit Numerical
Product Material Alumina Zirconia Product Material Alumina Zirconia
Component Content % ≥99% ≥95% ≥90% Volume Resistance MM >1012 >1012 >1012
Sintering Temp ℃ 1780-1800 1650-1680 1550-2600 Bending Strength Mpa 400 320 1100
Specific Gravity g/cm3 ≥3.8 ≥3.6 >6 Thermal Expansion Coefficient'10' 6.8-8.0 6.2-8.5 6.9-10
Breakdown Voltage
Strength kv/mm		 15 15 15 Roughness um ≤0.8 ≤0.8 ≤0.8
Bibulous Rate% <0.01 <0.01 <0.01 Mirror Polished Ra ≤0.05 ≤0.1 ≤0.05
Anti Pressure Mpa 3700Mpa 2400Mpa 5000Mpa Thermal Conductivity W/m.k 25 20 25
Hardness Hra ≥88 ≥82 ≥88 Temperature Resistance ℃ 1700 1600 1800


Advantages:

1. Superior wear resistance compared with other material.
2.Excellent wear resistance against acid and alkali.
3.Excellent resistance against big hard material without breakage.
4. Smooth surface makes excellent flow speed and avoid blacking the pipe system.
5.Reduce the frequency of maintenance to the facility, so as to reduce the cost and labor expense.

Application:

Wear resistant ceramic tube is conveying granular material, grinding, corrosive medium, such as the ideal wear and corrosion resistance, pipelines, widely used in electric power, mining, iron and steel, cement, chemical industry etc.

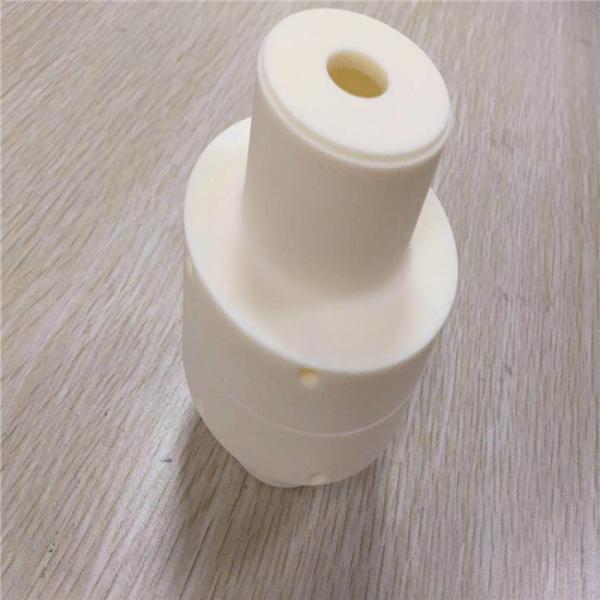

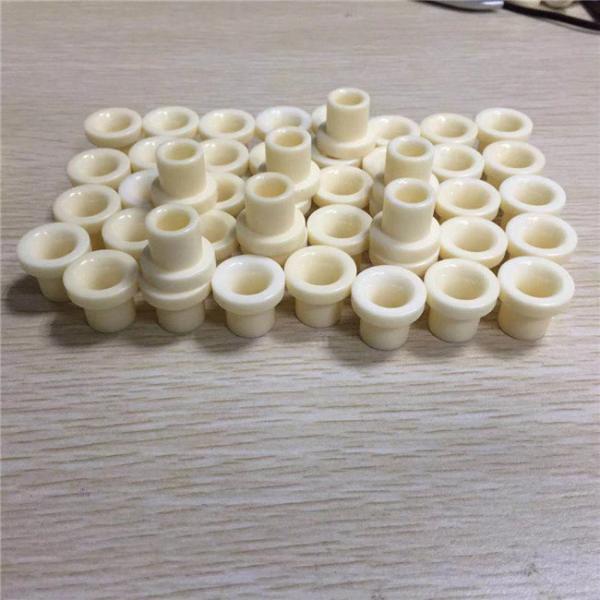

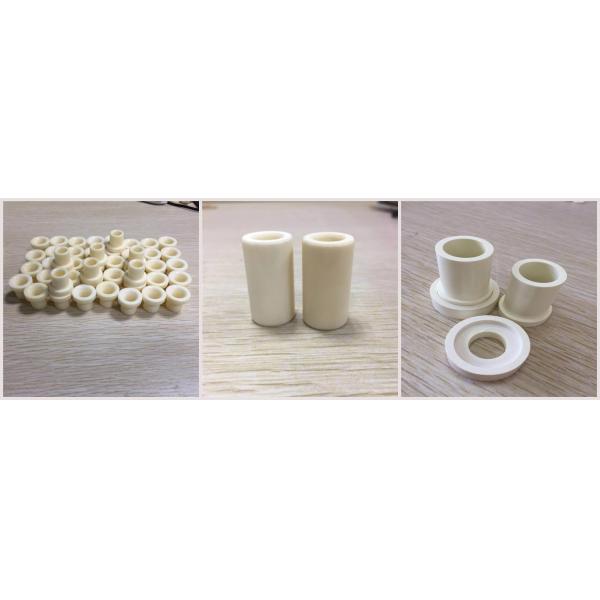

More pictures:

Diamond Polished Alumina Ceramic Parts Wear Resistance Precision Alumina Ceramic Tube

Packaging:

Diamond Polished Alumina Ceramic Parts Wear Resistance Precision Alumina Ceramic Tube
