Advance Technical Ceramic Wear Resistant Al2O3 Alumina Ceramic Tube
Advance Technical Ceramic Wear Resistant Al2O3 Alumina Ceramic Tube
Advance Technical Ceramic Wear Resistant Al2O3 Alumina Ceramic Tube
Advance Technical Ceramic Wear Resistant Al2O3 Alumina Ceramic Tube
Specifications
Brand Name :
China
Model Number :
008
Place of Origin :
Suzhou,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
25 days
Packaging Details :
Box, Carton, Wooden, Bag etc. Customized package
Name :
Advance Technical Ceramic Wear Resistant Al2O3 Alumina Ceramic Tube
Material :
Alumina Ceramic
Application :
Industrial Ceramic
Length :
3mm ~ 2000mm
Water Absorption :
0%
Electrical Insulation :
excellent
Density :
3.9g/cm3
Description

Advance Technical Ceramic Wear Resistant Al2O3 Alumina Ceramic Tube

Description:

Alumina ceramic tube has the advantages of super hardness, high wear-resisting,good corrosion resistance and electric insulation,resistant acid-base,high intensity,thermostable,high temperature tolerance,good insulation,high strength,precision process,high mechanical strength,good chemical stability.

Technical Parameters:

Test item/Unit Numerical Value Test item/Unit Numerical
Product Material Alumina Zirconia Product Material Alumina Zirconia
Component Content % ≥99% ≥95% ≥90% Volume Resistance MM >1012 >1012 >1012
Sintering Temp ℃ 1780-1800 1650-1680 1550-2600 Bending Strength Mpa 400 320 1100
Specific Gravity g/cm3 ≥3.8 ≥3.6 >6 Thermal Expansion Coefficient'10' 6.8-8.0 6.2-8.5 6.9-10
Breakdown Voltage
Strength kv/mm		 15 15 15 Roughness um ≤0.8 ≤0.8 ≤0.8
Bibulous Rate% <0.01 <0.01 <0.01 Mirror Polished Ra ≤0.05 ≤0.1 ≤0.05
Anti Pressure Mpa 3700Mpa 2400Mpa 5000Mpa Thermal Conductivity W/m.k 25 20 25
Hardness Hra ≥88 ≥82 ≥88 Temperature Resistance ℃ 1700 1600 1800


Advantages:

1. High purity: Al2O3>99%, good chemical corrosion resistance

2. good temperature resistance, long-term use at 1600ºC, short-term 1800ºC

3. good resistance to heat and cold, not easy to crack

4. grouting molding high density high purity alumina crucible

5. The color is white or beige

Application:

Mainly used in thermalcouple temperature, liquid steel continous temperature, various industrial furnace of alumina ceramic tube.
Especially widely used in petrochemical, spinning, electric, instrumentation, mechanical workout, military project etc industry of alumina ceramic tube.

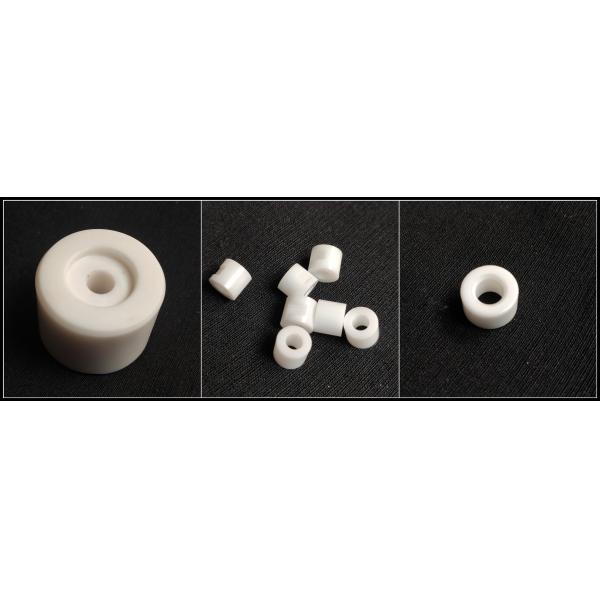

More pictures:

Advance Technical Ceramic Wear Resistant Al2O3 Alumina Ceramic Tube

Packaging:

Advance Technical Ceramic Wear Resistant Al2O3 Alumina Ceramic Tube

Advance Technical Ceramic Wear Resistant Al2O3 Alumina Ceramic Tube

Advance Technical Ceramic Wear Resistant Al2O3 Alumina Ceramic Tube

Advance Technical Ceramic Wear Resistant Al2O3 Alumina Ceramic Tube
