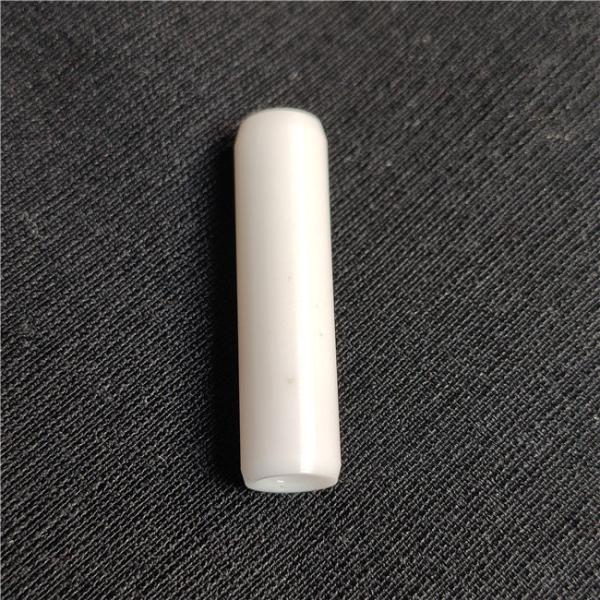

Abrasion Resistance Zirconia Ceramic Parts Yttria 3mm 2000mm Zirconia Ceramic Rod Industrial
Abrasion Resistance Zirconia Ceramic Parts Yttria 3mm 2000mm Zirconia Ceramic Rod Industrial
Abrasion Resistance Zirconia Ceramic Parts Yttria 3mm 2000mm Zirconia Ceramic Rod Industrial
Abrasion Resistance Zirconia Ceramic Parts Yttria 3mm 2000mm Zirconia Ceramic Rod Industrial
Specifications
Brand Name :
China
Model Number :
008
Place of Origin :
Suzhou,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
25 days
Packaging Details :
Box, Carton, Wooden, Bag etc. Customized package
Name :
Abrasion resistance yttria zirconia ceramic rod industrial
Material :
Zirconia Ceramic
Application :
Industrial Ceramic
Length :
3mm ~ 2000mm
Water Absorption :
0%
Electrical Insulation :
excellent
Density :
6.0g/cm3
Description

Zirconia ceramic rod mirror surface wear-resisting ceramic rod


Description:

Zirconia Ceramic offers high strength, wear resistance, and flexibility far beyond those of most other technical ceramics. Zirconia is a very strong technical ceramic with excellent properties in hardness, fracture toughness, and corrosion resistance; all without the most common property of ceramics – high brittleness. Its unique resistance to crack propagation and high thermal expansion make it an excellent material for joining ceramics with metals like steel.

We produce and sell high-quality, high-precision ceramic rods. Our ceramic rods have a wide range of applications.


Technical Parameters:

Test item/Unit Numerical Value Test item/Unit Numerical
Product Material Alumina Zirconia Product Material Alumina Zirconia
Component Content % ≥99% ≥95% ≥90% Volume Resistance MM >1012 >1012 >1012
Sintering Temp ℃ 1780-1800 1650-1680 1550-2600 Bending Strength Mpa 400 320 1100
Specific Gravity g/cm3 ≥3.8 ≥3.6 >6 Thermal Expansion Coefficient'10' 6.8-8.0 6.2-8.5 6.9-10
Breakdown Voltage
Strength kv/mm		 15 15 15 Roughness um ≤0.8 ≤0.8 ≤0.8
Bibulous Rate% <0.01 <0.01 <0.01 Mirror Polished Ra ≤0.05 ≤0.1 ≤0.05
Anti Pressure Mpa 3700Mpa 2400Mpa 5000Mpa Thermal Conductivity W/m.k 25 20 25
Hardness Hra ≥88 ≥82 ≥88 Temperature Resistance ℃ 1700 1600 1800


Advantages:


1. High density

2. High hardness

3. Low thermal conductivity

4. Chemical inertness

5. Resistance to molten metals

6. Good Wear resistance

7. High fracture toughness

Application:

yttria zirconia ceramic rod used in shaft, plunger, sealing structure, auto mobile industrial, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts.

More picrures:

Abrasion Resistance Zirconia Ceramic Parts Yttria 3mm 2000mm Zirconia Ceramic Rod Industrial

Abrasion Resistance Zirconia Ceramic Parts Yttria 3mm 2000mm Zirconia Ceramic Rod Industrial

Abrasion Resistance Zirconia Ceramic Parts Yttria 3mm 2000mm Zirconia Ceramic Rod Industrial

Packaging:

Abrasion Resistance Zirconia Ceramic Parts Yttria 3mm 2000mm Zirconia Ceramic Rod Industrial
