Corrosion Resistancer 99% Alumina Solid Ceramic Rod
Corrosion Resistancer 99% Alumina Solid Ceramic Rod
Corrosion Resistancer 99% Alumina Solid Ceramic Rod
Corrosion Resistancer 99% Alumina Solid Ceramic Rod
Specifications
Brand Name :
China
Model Number :
008
Place of Origin :
Suzhou,China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
25 days
Packaging Details :
Box, Carton, Wooden, Bag etc. Customized package
Name :
Corrosion Resistancer 99% Alumina Solid Ceramic Rod
Material :
Alumina Ceramic
Application :
Industrial Ceramic
Length :
3mm ~ 2000mm
Water Absorption :
0%
Electrical Insulation :
excellent
Density :
3.9g/cm3
Description

Corrosion Resistancer 99% Alumina Solid Ceramic Rod

Description:


Ordinary alumina ceramics are classified into 99 porcelain, 95 porcelain, 90 porcelain, 85 porcelain, etc. according to the content of Al2O3. Sometimes the content of Al2O3 is 80% or 75%, which is also classified into ordinary alumina ceramic series. Among them, 99 alumina ceramic materials are used to make high temperature crucibles, refractory furnace tubes and special wear-resistant materials, such as ceramic bearings, ceramic seals and water valve sheets; 95 alumina ceramics are mainly used as corrosion-resistant and wear-resistant parts.


Technical Parameters:

Test item/Unit Numerical Value Test item/Unit Numerical
Product Material Alumina Zirconia Product Material Alumina Zirconia
Component Content % ≥99% ≥95% ≥90% Volume Resistance MM >1012 >1012 >1012
Sintering Temp ℃ 1780-1800 1650-1680 1550-2600 Bending Strength Mpa 400 320 1100
Specific Gravity g/cm3 ≥3.8 ≥3.6 >6 Thermal Expansion Coefficient'10' 6.8-8.0 6.2-8.5 6.9-10
Breakdown Voltage
Strength kv/mm		 15 15 15 Roughness um ≤0.8 ≤0.8 ≤0.8
Bibulous Rate% <0.01 <0.01 <0.01 Mirror Polished Ra ≤0.05 ≤0.1 ≤0.05
Anti Pressure Mpa 3700Mpa 2400Mpa 5000Mpa Thermal Conductivity W/m.k 25 20 25
Hardness Hra ≥88 ≥82 ≥88 Temperature Resistance ℃ 1700 1600 1800


Advantages:

1.Excellent insulation ,security , long working life .
2. Precise grinding and polishing.
3. Excellent heat radiation, small size ,more environmental and energy-efficient .
4. good thermal conductivity.
5. large specific heat capacity.
6. low pressure drop.
7. good heat-shock resisting ability.
8. Working temperature: 600℃-1200℃.


Application:

Machinery, fiber optic, knife, medical, food, petroleum etc.

Specific application: plunger, ceramic shaft, fiber optic bushing, stub, grinding, ceramic knife, ceramic slide guide, machined plunger, mobile phone shell, watch case, haircut razor blade etc.

More pictures:

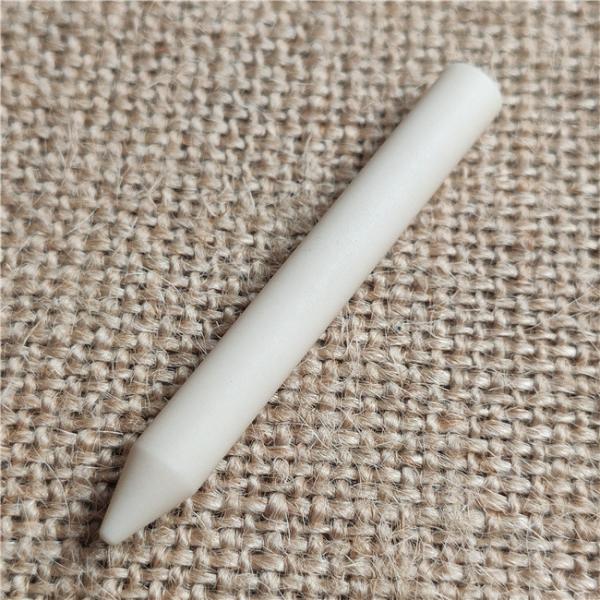

Corrosion Resistancer 99% Alumina Solid Ceramic Rod

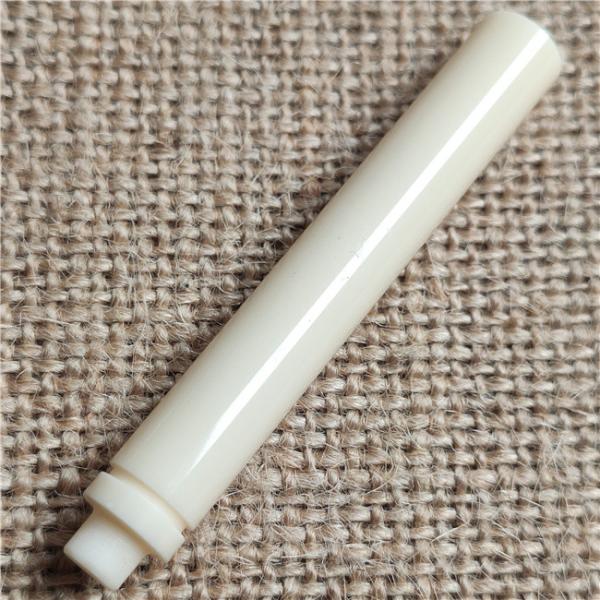

Corrosion Resistancer 99% Alumina Solid Ceramic Rod

Packaging:

Corrosion Resistancer 99% Alumina Solid Ceramic Rod


Why Choose Us?

1.5 years of professional production industrial ceramics factory
2.High quality products with low price
3.High precision parts with lowest tolerance
4.Short time for production
5.Has a group of experienced, professional and efficient R&D team
6.Has a good reputation in China and abroad.
7.MOQ is not limited, small quantity is welcome.
8.Vigorous team and good after-sales service
