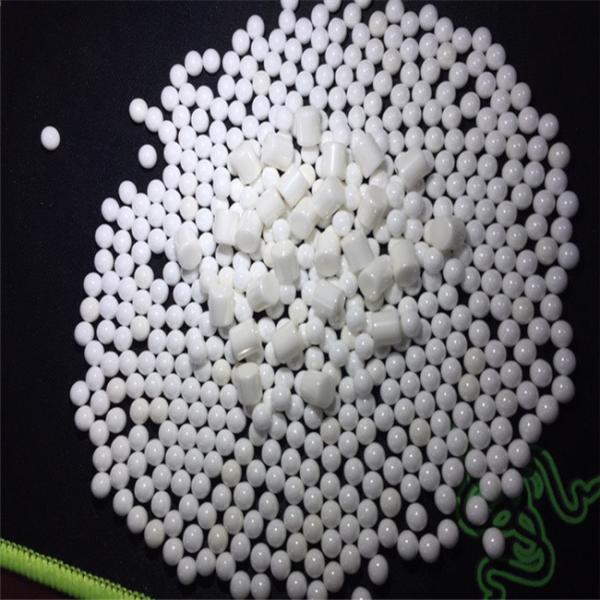

6g/Cm3 Low Wear Rate 95% Zro2 Zirconium Oxide Beads
6g/Cm3 Low Wear Rate 95% Zro2 Zirconium Oxide Beads
6g/Cm3 Low Wear Rate 95% Zro2 Zirconium Oxide Beads
6g/Cm3 Low Wear Rate 95% Zro2 Zirconium Oxide Beads
Specifications
Brand Name :
Manyoung
Model Number :
Customer's Requirements
Certification :
Ceramic Balls
Place of Origin :
Suzhou
MOQ :
1 KG
Price :
$50.00 - $200.00 / Kilogram
Payment Terms :
T/T,
Supply Ability :
1000 Ton/Tons per Month zirconia ceramic grinding balls / beads
Delivery Time :
7 work days
Packaging Details :
The standard package is 25KG/barrel, 1-1.5tons/pallet, 20-25tons/20'container
Product Name: :
High Density 6g/cm3 Low Wear Rate 95% Zro2 Zirconia Beads
Roundness :
≥97%
Specific density :
≥6.06g/cm3
Hardness(HV) :
>9Moh's
Advantage :
Excellent Wear Resistance
Grain size :
<0.1um
Self consumption (ppm) :
<1
Color :
Pure White
Description

High Density 6g/cm3 Low Wear Rate 95% Zro2 Zirconia Beads

Descirption:

Zirconia Beads are made from first grade yttria stabilized powder with sintered method. The sizes of internal micro crystals are less than 0.3μm benefit excellent crushing strength and wear resistance, which guarantees cross contamination free to grinded products. It is a top option to deal with the ultra-fine particles in conventional ball mills and modern pearl mills.

It provides a better size distribution. It also offers better wear resistance and more delicate internal crystal structure compared to any other finishing media. As a result, zirconia balls are a credible alternative to stainless steel .

Physical parameters:

Items Specification
ZrO2 94.7±0.2%
Y2O3 5.2±0.2%
Bulk Density ≥3.72g/cm3
Specific Density >6.03g/cm3
Compressive strength >2.0KN (Φ1.5mm)
Hardness(HV) >1200
Self consumption (ppm/h) <3
Roundness ≥95%
Color Pure White

Available Size (mm):

0.08-0.15 0.1-0.2 0.2-0.25 0.2-0.3 0.3-0.4 0.4-0.5
0.5-0.6 0.4-0.6 0.6-0.8 0.7-0.8 0.8-1.0 0.9-1.1
1.0-1.2 1.2-1.4 1.4-1.6 1.6-1.8 1.8-2.0 2.0-2.2

2.2-2.4

2.4-2.6 2.6-2.8 2.8-3.0 3.0 5.0
6.0 7.0 8.0 10.0 12 15
20 25 30 35 40 50

advantages:

1.Ceramic pastes or powder: ceramic pastes such as aluminum oxide, silicon nitride, silicon carbide, zirconium silicate and zirconium oxide;

2.Electronic pastes: noble metal pastes such as gold, platinum, palladium and silver.

3.Raw material of battery: lithium iron phosphate, lithium titanate, graphene; carbon nano-tube.

4.Nano material: pigments of inkjet like carbon black and magenta; pigments of LCD, color filter, dyestuff of digital printing,diamond for polishing agent, TiO2 for photo catalyst.

Applications:

1.Electronic material (Such as BaTiO3,BaCO3), Magnetic bands superfine grinding,

2.Paint, pigment, Coatings dispesing and superfine grinding,

3.Ceramic glaze (zirconia sand) superfine grinding,

4.Medication, Cosmetic dispersing and superfine grinding.

More pictures:

6g/Cm3 Low Wear Rate 95% Zro2 Zirconium Oxide Beads

Packaging:

6g/Cm3 Low Wear Rate 95% Zro2 Zirconium Oxide Beads
