Refractory Metal Tungsten Faced Copper Electrodes
Refractory Metal Tungsten Faced Copper Electrodes
Refractory Metal Tungsten Faced Copper Electrodes
Refractory Metal Tungsten Faced Copper Electrodes
Refractory Metal Tungsten Faced Copper Electrodes
Refractory Metal Tungsten Faced Copper Electrodes
Specifications
Brand Name :
W70Cu30
Certification :
ISO9001
Place of Origin :
HENAN
Delivery Time :
20-30days
Description

Refractory Metal Tungsten Faced Copper Electrodes Description

Tungsten is a metal with a high melting point and has good heat and corrosion resistance, while copper has good electrical and thermal conductivity. Combining tungsten and copper materials can give full play to the advantages of the two materials while making up for their respective shortcomings, thereby obtaining an electrode material with excellent performance. Refractory Metal Tungsten Faced Copper Electrodes is a combined electrode made by powder metallurgy process, in which the electrode body is copper and the electrode tip is tungsten. This design can maximize the heat energy on the workpiece to be welded, reducing arc and high temperature Corrosion, thereby prolonging the service life of the electrode. Refractory Metal Tungsten Faced Copper Electrodes have become the best electrode choice for high power resistance welding and spot welding, and are often used in the production process of electrolytic copper, aluminum, zinc and other metals. If you need other high-quality tungsten copper electrodes, please contact us by email.

Refractory Metal Tungsten Faced Copper Electrodes Specifications:

Grade W80Cu20,W70Cu30
Technique isostatic pressing,annealing,rolling,sintering
Size Accept to Customize
Length ≦300mm
Hardness ≥220HRB
Density 17.65g/cm3
Electric Conductivity(IACS) ≥27%
Surface Polishing,Bright,Chemical Cleaning
Standard ASTM B702,DIN,GB
Certification ISO 9001,GB/T28001-2011

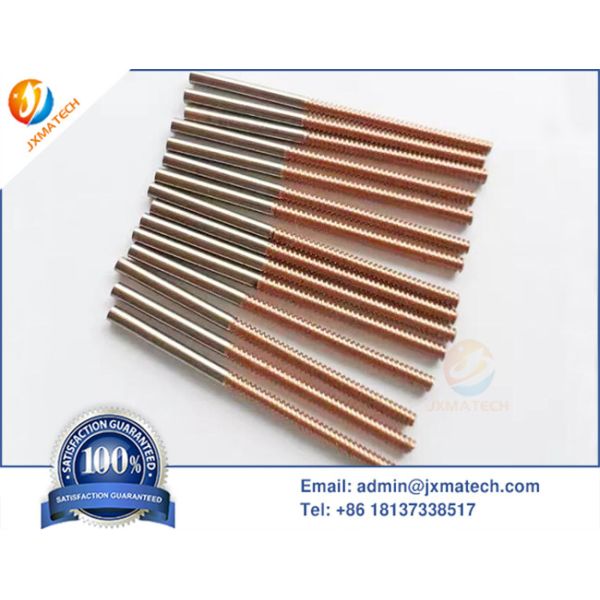

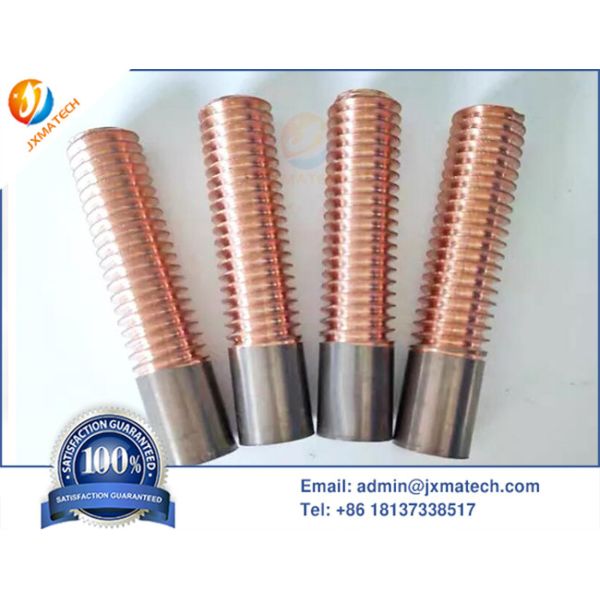

Refractory Metal Tungsten Faced Copper Electrodes Picture

Refractory Metal Tungsten Faced Copper ElectrodesRefractory Metal Tungsten Faced Copper Electrodes
