WT20 Thoriated Tungsten TIG Welding Electrode
WT20 Thoriated Tungsten TIG Welding Electrode
WT20 Thoriated Tungsten TIG Welding Electrode
WT20 Thoriated Tungsten TIG Welding Electrode
WT20 Thoriated Tungsten TIG Welding Electrode
WT20 Thoriated Tungsten TIG Welding Electrode
Specifications
Brand Name :
JX
Model Number :
WT20
Certification :
ISO9001
Place of Origin :
CHINA
Delivery Time :
20 days
Electrical Conductivity :
≥20%IACS
Melting Point :
≥3410℃
Size :
Customized
Surface Treatment :
Polishing,Sandblasting,Anodizing, etc.
Tensile Strength :
≥900MPa
Yield Strength :
≥800MPa
Application :
Aerospace,Nuclear industry
Description

WT20 Thoriated Tungsten TIG Welding Electrode Description

Thoriated Tungsten Electrode is the most commonly used tungsten electrode in DC welding environment, which often contains 1.70-2.20% rare earth element thorium, so the electrode head is generally red. WT20 Thoriated Tungsten TIG Welding Electrode is mainly made of powder metallurgy technology. Compared with other tungsten electrodes, it has excellent electrical conductivity, good high temperature resistance, strong current carrying ability, high arc starting performance, long service life, resistance to arc erosion, and higher pollution resistance. Low cost of consumption, various advantages, can provide higher quality welding. WT20 Thoriated Tungsten TIG Welding Electrode is usually used for DC welding of carbon steel, stainless steel, nickel alloy and titanium metal, especially in the aerospace industry, military industry and nuclear industry welding engineering occupies an important position, even in the range of high current can work stably.
It should be noted that the electrode is slightly radioactive, and long-term application may allow radioactive substances to enter the body of the staff and cause chronic diseases, so in the case of economic conditions, pollution-free lanthanum tungsten electrode can be chosen to replace.

WT20 Thoriated Tungsten TIG Welding Electrode Specifications:

Grade WT20
Purity

W:97.30%

ThO2:1.70-2.20%
Technique Rolling,Sintering,Machining,Grinding,Drawing
Diameter 1-12mm
Length 100mm-200mm
Density ≤19.2g/cm3
Color Code Red
Surface Forged,Grounding,Grinding,Chemical Cleaning,Polishing
Standard ASTM,GB,AISI
Certification ISO9001

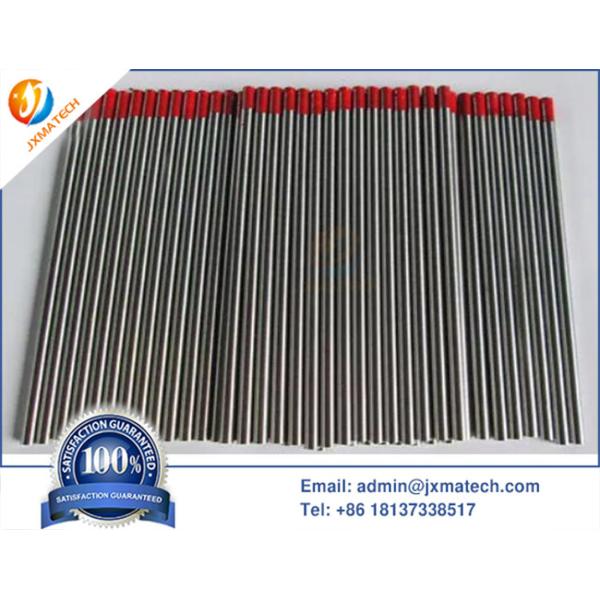

WT20 Thoriated Tungsten TIG Welding Electrode Pictures:

WT20 Thoriated Tungsten TIG Welding ElectrodeWT20 Thoriated Tungsten TIG Welding Electrode
