Customized Molybdenum Copper Welding Electrode
Customized Molybdenum Copper Welding Electrode
Customized Molybdenum Copper Welding Electrode
Customized Molybdenum Copper Welding Electrode
Customized Molybdenum Copper Welding Electrode
Customized Molybdenum Copper Welding Electrode
Specifications
Brand Name :
JX
Model Number :
MoCu
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10kg
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
500kg per month
Delivery Time :
20 days
Packaging Details :
plywood cases
Grade :
Mo70Cu30,Mo80Cu20,Mo75Cu35
Density :
10.2g/cm3
Elongation :
5-15%
Hardness :
≥HV400
Melting Point :
2610℃
Surface :
Smooth
Tensile Strength :
600-800MPa
Thermal Conductivity :
≥100W/mK
Description

Customized Molybdenum Copper Welding Electrode Description

Tungsten and molybdenum are commonly used refractory metals and are used as electrode materials in resistance welding because of their high melting point, high hardness and anti-adhesion characteristics. Customized Molybdenum Copper Welding Electrode is made of molybdenum copper composite material through powder metallurgy process and melting process. It is commonly used in arc melting welding and gas shielded welding under high temperature working environment. It can not only obtain excellent weld quality and welding efficiency. It can also improve the working performance and operating life of welding equipment.

Features of Customized Copper Welding Electrode:
1. High melting point, good machining, high strength and stiffness, good ductility
2. High toughness, low resistivity, low vapor pressure, low thermal expansion coefficient
3. Corrosion resistance, high temperature resistance, arc impact resistance, high temperature oxidation resistance
4. Wear resistance, long service life, excellent thermal conductivity

Customized Copper Welding Electrode Specifications:

Grade:Mo70Cu30,Mo80Cu20,Mo75Cu35

Technique:Hot Rolling,Cold Rolling,Sintering,Annealing,Drawing

Size:Diameter(20mm-150mm)Length(<3000mm)

Surface:Polishing,Alkali Cleaning,Machining,Grinding

Standard:ASTMB387,GB,JIS,DIN

Certification:ISO9001:2008

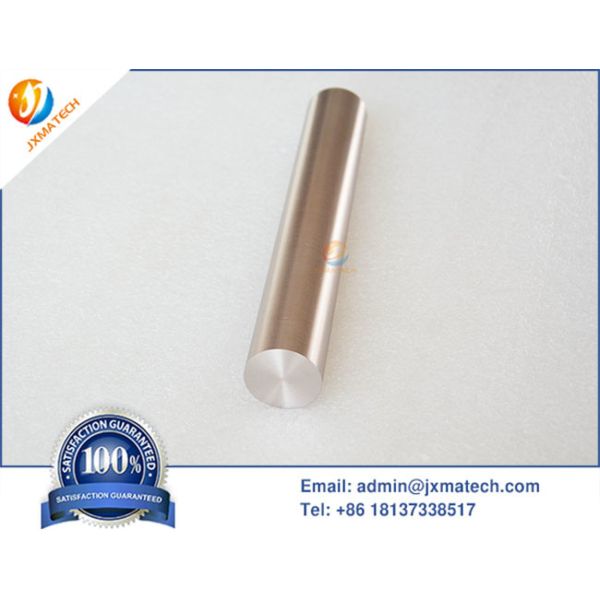

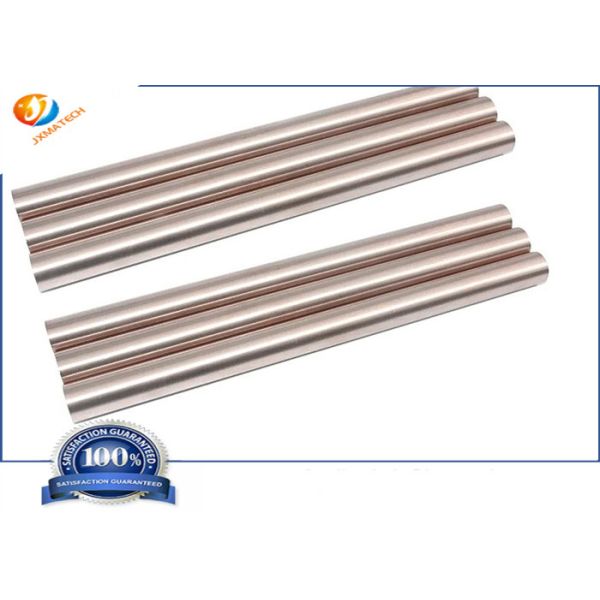

Customized Copper Welding Electrode Pictures:

Customized Molybdenum Copper Welding ElectrodeCustomized Molybdenum Copper Welding Electrode
