Standard ASTM B393 Niobium Foil , Niobium Non Ferrous Metal Alloys 0.1mm Thickness
Standard ASTM B393 Niobium Foil , Niobium Non Ferrous Metal Alloys 0.1mm Thickness
Standard ASTM B393 Niobium Foil , Niobium Non Ferrous Metal Alloys 0.1mm Thickness
Standard ASTM B393 Niobium Foil , Niobium Non Ferrous Metal Alloys 0.1mm Thickness
Standard ASTM B393 Niobium Foil , Niobium Non Ferrous Metal Alloys 0.1mm Thickness
Standard ASTM B393 Niobium Foil , Niobium Non Ferrous Metal Alloys 0.1mm Thickness
Standard ASTM B393 Niobium Foil , Niobium Non Ferrous Metal Alloys 0.1mm Thickness
Standard ASTM B393 Niobium Foil , Niobium Non Ferrous Metal Alloys 0.1mm Thickness
Specifications
Brand Name :
JINXING
Model Number :
Niobium Foil
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1kg
Price :
100~500USD/kg
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000kgs/M
Delivery Time :
10~25 work days
Packaging Details :
Plywood case
Material :
Niobium
Purity :
99.95% min
Process :
Hot Rolling, Cold Rolling
Status :
Annealed or unanealed
Density :
8.57g/cm³
Melt Range :
2477°C
Description

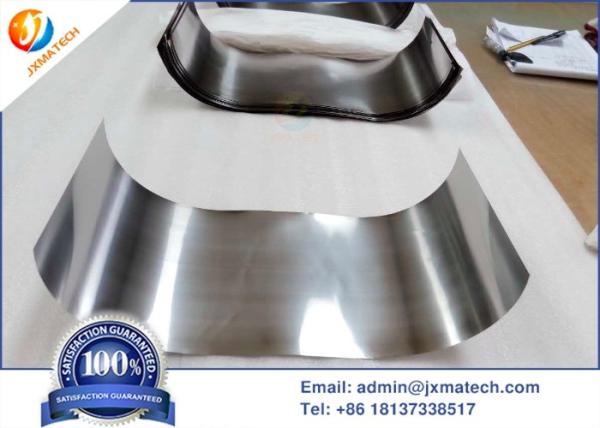

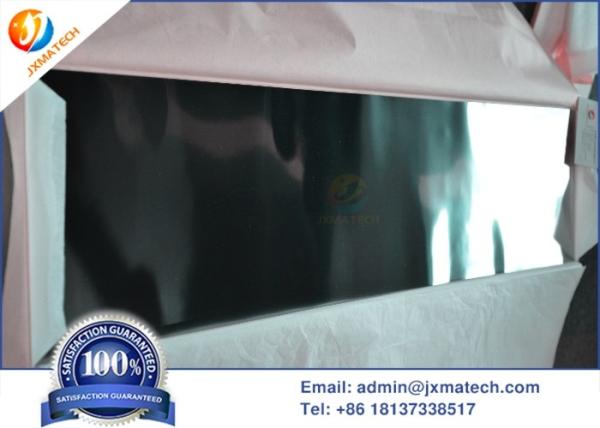

Niobium Foil UNS RO4200, RO4210 Purity 99.95% Standard ASTM B393 0.1mm THK

Niobium Foil can be made according to standard ASTM B393 , material grade RO4200, RO4210 .

Niobium has good superconductivity, high melting point, corrosion resistance, wear resistance and other characteristics, and is widely used in steel, superconducting materials, aerospace, atomic energy and other fields

  • Description

Niobium Foil

Product name: Niobium Foil

Standard: ASTM B393

Grade: RO4200, RO4210

Application: electronics, metallurgy, chemical, hard alloy cutters, aerospace and aviation.

Permissible variations in spec.

Thickness (mm) Width (mm) Length (mm)
Foil 0.05~0.1 30~150 >=200
Sheet 0.1~0.5 30~500 >=200
Plate 0.5~15 50~1000 >=200

Chemical Composition:

Designation Main Contents Impurities maximum
Nb Fe Si Ni W Mo Ti Ta O C H N
Nb1 Remainder 0.004 0.003 0.002 0.004 0.004 0.002 0.07 0.015 0.004 0.0015 0.002
Nb2 Remainder 0.02 0.02 0.005 0.02 0.02 0.005 0.15 0.03 0.01 0.0015 0.01

There are two processes in industry: direct carbon reduction and indirect carbon reduction. The niobium produced by direct carbon reduction is spongy with large surface area and low content of metal impurities and nitrogen, which is beneficial to the specific capacity of niobium powder. Therefore, the process is suitable for the production of capacitor grade niobium powder. The characteristics of indirect reduction are large production capacity of equipment, stable process, dense metal niobium bar and regular dimension, which are suitable for making niobium bar, niobium ingot and niobium processing material.

Standard ASTM B393 Niobium Foil , Niobium Non Ferrous Metal Alloys 0.1mm Thickness
