Specifications
Brand Name :
JINXING
Model Number :
Copper Tungsten / WCu alloy
Certification :
ISO 9001
Place of Origin :
China
MOQ :
5KGS
Price :
30~100USD/kg
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000kgs/M
Delivery Time :
10~25 work days
Packaging Details :
Plywood Case
Material :
Tungsten Copper
Surface :
Polished and Grinding
Content :
W75, W85, W80, W55, W65, W90
Dimensions :
Customized
Density :
12.2~17g/cm3
Application :
Resistance Welding , Spot Welding
Type :
RWMA Class 10,Class 11, Class 12
Grade :
1W3, 3W3 , 5W3, 10W3 , 30W3 ,3W53,10W53
Description

Factory Edm Copper Tungsten Plate and Tungsten Copper Foil W50 Tungsten Copper Plate Electrode

Tungsten copper is composite by tungsten and copper, which owns the properties of both tungsten and copper.As copper and tungsten shall not melt together, copper-Tungsten is produced by powder metallurgy. Due to the high electric conductivity and max. working temperature of plate-Tungsten alloy, it is usually used in electric component, such as electrodes.
1, Width × Length: (2.0-100.0mm) × (2.0-100.0mm)
2, High: 50-1000mm
3, Density: 12.60-17.05 g/cm3
4, Composition: W 55-90%, Cu 10-45%
5, Surface: Sintering surface, Forged surface, Ground surface

6.supply custom-made services

Copper Tungsten Plate mainly used in:

1. Electrode materials: for high hardness materials and flake, electrical discharge machining, EDM product surface finish, high precision, low loss, effective conservation.

2. Contact Material: High pressure switch or circuit breaker arcing contacts and vacuum contacts, circuit board welding and electrical contact points.

3. Welding Material: submerged arc welding machine, gas shielded welding tip, radio resistor factory (production of carbon film resistors, metal coating resistance) Resistance Welder Welding materials (copper tungsten alloy welding disc).

The guide and guard materials: wire rod mill, for guiding the protective effect materials.Tungsten copper alloy plate used for transient high-temperature materials

Feature:

High hardness, high density, High strength, high heat resistant;

Excellent thermal and electrical conductivity;Better arc burning loss resistance, erosion resistance;

Easy to be machined.

Copper Tungsten Plate , Copper Tungsten Plate, 40X100X200mm, 20W3 Tungsten Copper Alloy Electrode tungsten copper's industrial

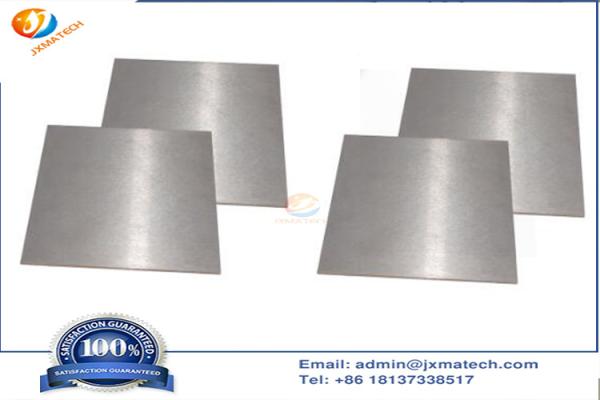

Copper Tungsten Plate picture:

Electrode Edm Copper Tungsten Plate Heat Resistant

Electrode Edm Copper Tungsten Plate Heat Resistant
