High temperature TZM plates
High temperature TZM plates
High temperature TZM plates
High temperature TZM plates
High temperature TZM plates
High temperature TZM plates
High temperature TZM plates
High temperature TZM plates
Specifications
Brand Name :
JX
Model Number :
High temperature TZM plates
Certification :
ISO
Place of Origin :
China
MOQ :
10kgs
Price :
according to actual products
Payment Terms :
T/T
Supply Ability :
300kgs month
Delivery Time :
25days
Packaging Details :
standard packing
size :
as request
Quality :
ISO9001:2008
Surface :
polishing,burnishing,black surface
delivery time :
25days
packing :
standard exporting
Name :
High temperature TZM platesHigh temperature TZM plates
Description

High temperature TZM plates

Tzm Plate is a particle-strengthened molybdenum-based alloy containing titanium, zirconium and carbon. TZC is an improved type of TZM with good heat treatment hardening effect.

Advantages of TZM compared to pure molybdenum:
Tensile strength above 1100°C is approximately twice that of unalloyed molybdenum
better creep resistance
higher recrystallization temperature
Better welding performance.
application:
TZM is widely used in aerospace, aviation and other industries. Can be used as nozzle material, valve body, gas pipeline material, gate material pipe, die casting mold, extrusion mold and high temperature furnace heating element and heat shield, etc.


Tzm Plate General Properties:
Density: 10.16 g/cc at 20°C
Recrystallization Temperature: 1425 to 1595°C
Stress-Relief Temperature: 1 hour at 1095 to 1260°C
Liquidus Temperature: 2620°C
Chemical Composition:
TZM: Mo + 0.40~0.55%Ti + 0.06~0.12%Zr + 0.01~0.04% C
TZC: Mo + 1.2% Ti + 0.3% Zr + 0.1% C

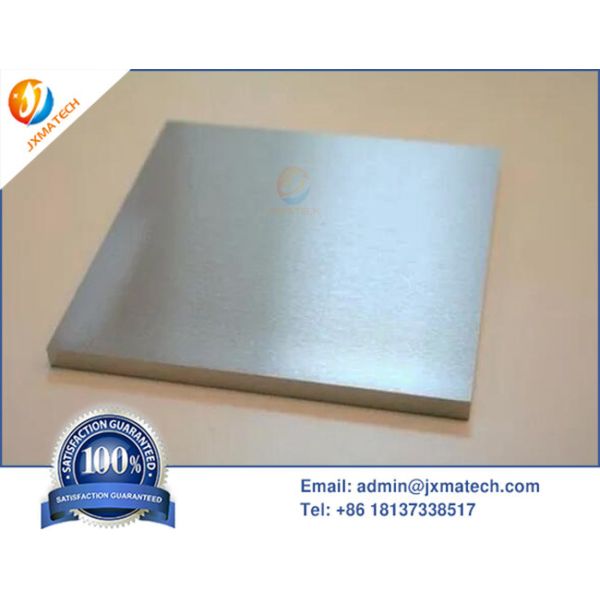

Tzm Plate Picture:
High temperature TZM platesHigh temperature TZM plates

Grade Chief constituent % The impurity content is not more than %
Mo Ti Zr C Al Ca Fe Mg Ni Si C N O
Mo1 - - - 0.002 0.002 0.010 0.002 0.005 0.01 0.01 0.003 0.008
Mo2 - - - 0.005 0.004 0.015 0.005 0.005 0.01 0.02 0.003 0.020
moTi0.5 0.4-
0.6		 - 0.01-
0.04		 0.002 - 0.010 0.002 - 0.01 - 0.001 0.003
TZM
ASTM
bal-anc-e		 0.4-
0.55		 0.06-
0.12		 0.01-
0.04		 0.002 0.002 0.01 0.001 0.005 0.005 - 0.002 0.05
