Specifications
Brand Name :
JINXING
Model Number :
HiperCo50 1J22 Sheet
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
30 kg
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, D/A, Western Union, MoneyGram
Supply Ability :
2000 kg per month
Delivery Time :
15-20 days
Packaging Details :
plywood cases
Material :
HiperCo50 1J22 Sheet
Size :
TK 1mm - 50mm
Density :
8.21 g/cc
Tensile Strength :
494 MPa
Hardness :
92 HRB
Elongation :
31%
Electrical Resistivity :
425 microhm-mm
Application :
industrial
Description

Soft Magnetic Precision Alloy HiperCo50 1J22 Sheet For Magnetic Conductor Core

HiperCo50 1J22 Sheet is a high saturation magnetic induction ferroco-vanadium soft magnetic alloy. Among existing soft magnetic materials, the alloy has the highest saturation magnetic induction (2.4T), high Curie point (980℃) and the largest saturation magnetostrictive coefficient (60-100×10-6). Because of the high saturation magnetic induction, the size of the motor with the same power can be greatly reduced. When it is used as an electromagnet, it can produce a large attraction at the same cross-sectional area.

Chemical Composition of HiperCo50 1J22 Sheet

Element

Min

Max

Carbon

--

0.01

Manganese

--

0.05

Silicon

--

0.05

Cobalt

--

48.75

Vanadium

--

1.90

Iron

Bal

Relative Grade of HiperCo50 1J22 Sheet

Grade U.K. Germany U.S.A. Russia Standard
1J22 Permendur Vacoflux 50 Supermendur
HiperCo50		 50КФ GB/T15002-1994

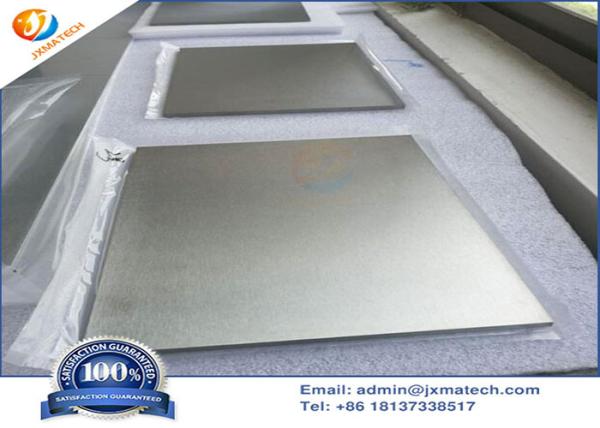

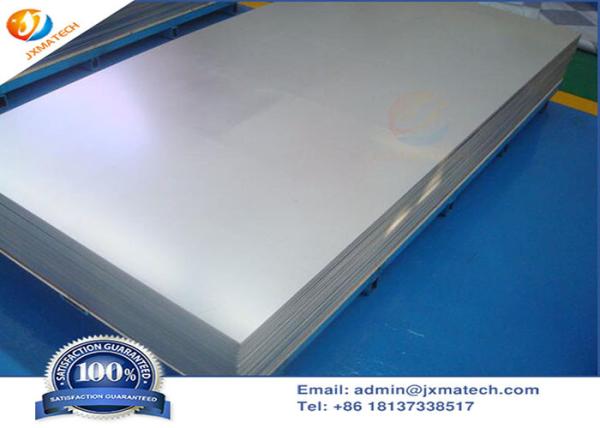

HiperCo50 1J22 Sheet Picture:
Soft Magnetic Precision Alloy HiperCo50 1J22 Sheet For Magnetic Conductor CoreSoft Magnetic Precision Alloy HiperCo50 1J22 Sheet For Magnetic Conductor Core

Application of HiperCo50 1J22 Sheet

Hiperco 50A is an iron-cobalt-vanadium soft magnetic alloy with high magnetic saturation (24 kilo-gaause), high maximum DC permeability, low DC coercivity, and low AC core loss. This alloy exhibits superior magnetic properties to other commercial ferrocobalt soft magnetic alloys. Hippeko? The 50A is mainly used in magnetic cores in electrical equipment that require high permeability at high flux density, or in magnetic tape cores that require minimum AC loss and high permeability at high inductance.
