Super Invar Nickel Iron Alloy Tube Seamless Bright
Super Invar Nickel Iron Alloy Tube Seamless Bright
Super Invar Nickel Iron Alloy Tube Seamless Bright
Super Invar Nickel Iron Alloy Tube Seamless Bright
Super Invar Nickel Iron Alloy Tube Seamless Bright
Super Invar Nickel Iron Alloy Tube Seamless Bright
Super Invar Nickel Iron Alloy Tube Seamless Bright
Super Invar Nickel Iron Alloy Tube Seamless Bright
Specifications
Brand Name :
JX
Model Number :
Super Invar Alloy Seamless Invar Nickel Iron Alloy Tube
Certification :
ISO
Place of Origin :
china
MOQ :
100kgs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000T
Delivery Time :
35days
Packaging Details :
Standard wooden case
Product Type :
Super Invar Alloy Seamless Invar Nickel Iron Alloy Tube
Carbon Content :
low
Material :
Feni Alloy
Transport Package :
wooden case
Shape :
round bar
Condition :
soft
Surface :
Bright
Origin :
China
Description

Seamless Invar Nickel Iron Alloy TubeSuper Invar Alloy Seamless Invar Nickel Iron Alloy Tube

Nickel iron alloy invar tube is an iron-nickel-cobalt alloy consisting of 32% nickel, 5% cobalt and a balance of iron. Super inar alloy has the least thermal expansion at room temperature (half that of inar 36 alloy) and has lower thermal expansion properties than inar 36 alloy in the temperature range of 67/203°F (-55/95°C).

Relative Grade:
Super-Invar / - Invar32H-B Super-Nilvar SI Superieur

Size Range:
*Sheet---Thickness 0.1mm~40.0mm, width:≤300mm,Condition: cold rolled(hot), bright, bright annealed
*Round Wire---Dia 0.1mm~Dia 5.0mm,Condition: cold drawn, bright, bright annealed
*Flat Wire---Dia 0.5mm~Dia 5.0mm,length:≤1000mm,Condition:flat rolled, bright annealed
*Bar---Dia 5.0mm~Dia 8.0mm,length:≤2000mm,Condition:cold drawn,bright, bright annealed
Dia 8.0mm~Dia 32.0mm,length:≤2500mm,Condition:hot rolled,bright, bright annealed
Dia 32.0mm~Dia 180.0mm,length:≤1300mm,Condition:hot forging,peeled, turned, hot treated
*Capillary---OD 8.0mm~1.0mm,ID 0.1mm~8.0mm,length:≤2500mm,Condition: cold drawn, bright, bright annealed
*Pipe---OD 120mm~8.0mm,ID 8.0mm~129mm,length:≤4000mm,Condition: cold drawn, bright, bright annealed
Invar Nickel Iron Alloy Tube Specifications

Grade		 UNS Werkstoff Nr.
Invar 36 K93600 1.3912

Physical Properties

Grade		 Density Melting Point
Invar 36 8.1 g/cm3 1430°C

Coefficient of Expansion

Alloy		 Linear Coefficient of Thermal Expansion a,10-6/degree
20-50 20-100 20-200 20-300 20-400 20-500
Invar 36 0.6 0.8 2.0 5.1 8.0 10.0

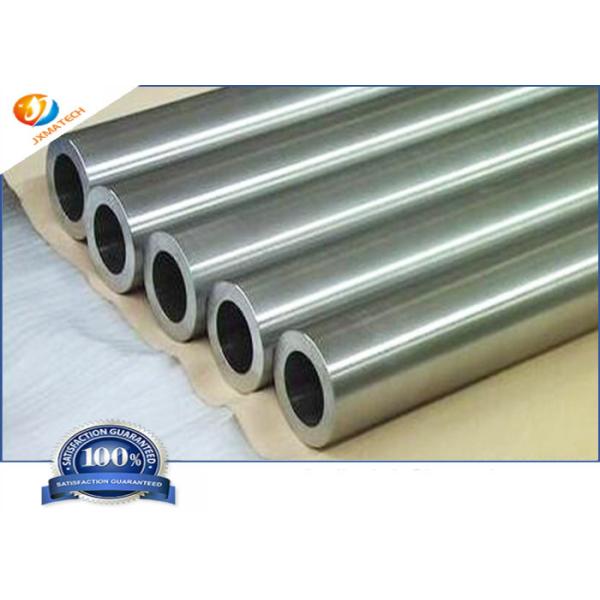

Seamless Invar Nickel Iron Alloy Tube Picture:

Super Invar Nickel Iron Alloy Tube Seamless BrightSuper Invar Nickel Iron Alloy Tube Seamless Bright

Seamless Invar Nickel Iron Alloy Tube is suitable for the applications who require low coefficient of expansion, such as production, storage and transportation of liquid gas, temperature regulation devices working below 200°C, aperture mask, unit frameworks working below -200°C and so on.


Chemical Composition


Grade		 C% Si% P% S% Mn% Ni% Fe%
Invar 36 Max 0.05 Max 0.30 Max 0.020 Max 0.020 0.20-0.60 35.0-37.0 Bal.
