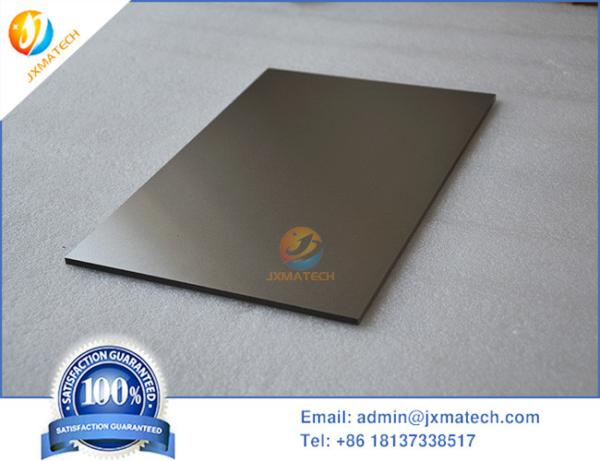

Polished Pure Tungsten Sheet W 99.95% Semiconductor Industry
Polished Pure Tungsten Sheet W 99.95% Semiconductor Industry
Polished Pure Tungsten Sheet W 99.95% Semiconductor Industry
Polished Pure Tungsten Sheet W 99.95% Semiconductor Industry
Polished Pure Tungsten Sheet W 99.95% Semiconductor Industry
Polished Pure Tungsten Sheet W 99.95% Semiconductor Industry
Specifications
Brand Name :
JX
Model Number :
Tungsten Sheet pure tungsten W 99.95% Tungsten Product Sheet
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
10kg
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
500 kg per month
Delivery Time :
15-20 days
Packaging Details :
plywood cases
Product Name :
Tungsten Sheet pure tungsten W 99.95% Tungsten Product Sheet
Grade :
W
Purity :
>=99.95%
Tensile Strength :
>320 MPa
Elongation :
<21%
Standard :
ASTM B387-2010
Application :
Semiconductor Industry
Description

Tungsten Sheet pure tungsten W 99.95% Tungsten Product Sheet

Tungsten sheet/plate/foil/strip
Specification:
1) Tungsten Sheet/Plate Purity: 99.95%
2) Density: >19.1g/cm3
3) Size: according to the needs of users: T(0.03-40)*W(20-600)*L L<2000mm
4) Surface: Black,Alkali Wash and Polished
5) Condition: hot roll
6) Products Application: Tungsten is suitable for light, electric vacuum device, electric semiconductor device, glass fiber kiln heating element, heat shield, boat and finished products etc.

Tungsten Sheet Specification

Surface Diameter(mm) Tolerance of diameter Length(mm)) Tolerance of diameter Roughness(μm)
Sintering Φ10~Φ350 ±1~±2 10~800 ±1~±2 Ra≤3.2
Forged Φ10~Φ350 ±1~±2 10~3000 ±1~±2 Ra≤3.2
Lathed Φ10~Φ350 ±0.01~±0.05 10~3000 ±0.01~±1 Ra≤1.6
Centreless Φ10~Φ80 ±0.01~±0.05 10~3000 ±0.01~±1 Ra≤0.8

Chemical Component:

Mark Tungsten content Total Impurity content Individual element content
W1 ≥99.95% ≤0.05% ≤0.01%
W2 ≥99.95% ≤0.05% ≤0.01%

Polished Pure Tungsten Sheet W 99.95% Semiconductor Industry

Polished Pure Tungsten Sheet W 99.95% Semiconductor Industry
