High Conductibility Low-Loss W80Cu20 Copper Tungsten Welding Rod
High Conductibility Low-Loss W80Cu20 Copper Tungsten Welding Rod
High Conductibility Low-Loss W80Cu20 Copper Tungsten Welding Rod
High Conductibility Low-Loss W80Cu20 Copper Tungsten Welding Rod
High Conductibility Low-Loss W80Cu20 Copper Tungsten Welding Rod
High Conductibility Low-Loss W80Cu20 Copper Tungsten Welding Rod
Specifications
Brand Name :
JINXING
Model Number :
W80Cu20 - Copper Tungsten Welding Rod
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
10 kg
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, D/A, Western Union, MoneyGram
Supply Ability :
2000 kg per month
Delivery Time :
15-20 days
Packaging Details :
plywood cases
Material :
Copper Tungsten Welding Rod
Type :
W80Cu20
Size :
dia 3.5 - 30mm x L
Density :
14.6 g/cc
Hardness :
178 HB
Standard :
ASTM B702-93 2018
Packaging :
plywood case
Application :
resistance welding
Description

High Conductibility Low-Loss W80Cu20 Copper Tungsten Welding Rod

Copper Tungsten Welding Rod is an alloy composed of tungsten and copper. The copper content of common alloy is 10%~50%. The alloy is made of powder metallurgy and has good conductivity, thermal conductivity, high temperature strength and certain plasticity. At very high temperatures, such as above 3000 ℃, the copper in the alloy will liquefy and evaporate, absorb a lot of heat, and reduce the surface temperature of the material.

Specifications of Copper Tungsten Welding Rod

Code No.

 Chemical Composition % Mechanical properties
CU Impurity W Density (g/cm3 ) Hardness HB RES( cm) Conductivity IACS/ % TRS/ Mpa
CuW(50) 50±2.0 0.5 Balance 11.85 115 3.2 54
CuW(55) 45± 2.0 0.5 Balance 12.30 125 3.5 49
CuW(60) 40±2.0 0.5 Balance 12.75 140 3.7 47
CuW(65) 35±2.0 0.5 Balance 13.30 155 3.9 44
CuW(70) 30±2.0 0.5 Balance 13.80 175 4.1 42 790
CuW(75) 25±2.0 0.5 Balance 14.50 195 4.5 38 885
CuW(80) 20±2.0 0.5 Balance 15.15 220 5.0 34 980
CuW(85) 15±2.0 0.5 Balance 15.90 240 5.7 30 1080
CuW(90) 10±2.0 0.5 Balance 16.75 260 6.5 27 1160

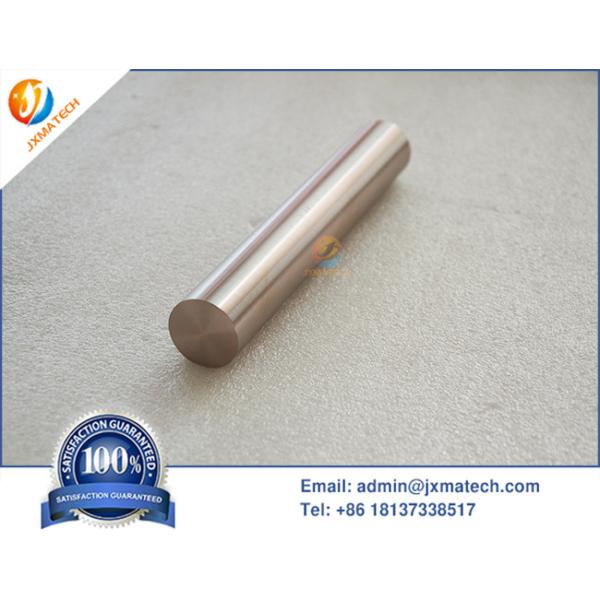

Copper Tungsten Welding Rod picture:
High Conductibility Low-Loss W80Cu20 Copper Tungsten Welding Rod

High Conductibility Low-Loss W80Cu20 Copper Tungsten Welding RodHigh Conductibility Low-Loss W80Cu20 Copper Tungsten Welding Rod

Physical properties of Copper Tungsten Welding Rod

  • Tungsten-copper alloy (W=80 Cu=20)

  • Conductivity % IACS 42 or higher

  • Density = 14 g/cm3

  • Softening temperature ≥700 ℃

  • Tensile strength ≥66Mpa

  • Hardness is 184 hv or higher

  • Tungsten-copper alloy can withstand high temperature and high stress of nearly 2000 degrees. It has the characteristics of high melting point, high hardness, burn resistance and good adhesion resistance. The electrocorrosion products have high surface finish, high precision and low loss.

Applications of Copper Tungsten Welding Rod

  • When the high-voltage vacuum discharge tube is working, the temperature of the contact material will increase by thousands of degrees Celsius within a few tenths of a second. The high ablation resistance, high toughness, good conductivity and thermal conductivity of W-Cu alloy provide necessary conditions for the stable operation of the discharge tube.
