W70Cu30 Tungsten Copper Bar Electrodes For Resistance Welding
W70Cu30 Tungsten Copper Bar Electrodes For Resistance Welding
W70Cu30 Tungsten Copper Bar Electrodes For Resistance Welding
W70Cu30 Tungsten Copper Bar Electrodes For Resistance Welding
W70Cu30 Tungsten Copper Bar Electrodes For Resistance Welding
W70Cu30 Tungsten Copper Bar Electrodes For Resistance Welding
Specifications
Brand Name :
JINXING
Model Number :
W70Cu30 - Tungsten Copper Bar
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
30 kg
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, D/A, Western Union, MoneyGram
Supply Ability :
2000 kg per month
Delivery Time :
15-20 days
Packaging Details :
plywood cases
Material :
Tungsten Copper Bar
Grade :
W70Cu30
Size :
dia 3.5-50mm x L
Density :
14.55 g/cc
Hardness :
174 HB
Standard :
ASTM B702-93 2017
Packaging :
Exporting plywood cases
Application :
Electric Spark Electrode
Description

Electrodes For Resistance Welding Tungsten Copper Bar W70Cu30

Tungsten Copper Bar has a wide range of uses, mainly used to manufacture the contact of high voltage electric switch and high temperature components such as rocket nozzle throat liner and tail rudder, and also used as electrodes for electrical processing, high temperature mold and other occasions requiring high conductivity and high temperature.

Specifications of Tungsten Copper Bar

Code No.

 Chemical Composition % Mechanical properties
CU Impurity W Density (g/cm3 ) Hardness HB RES( cm) Conductivity IACS/ % TRS/ Mpa
CuW(50) 50±2.0 0.5 Balance 11.85 115 3.2 54
CuW(55) 45± 2.0 0.5 Balance 12.30 125 3.5 49
CuW(60) 40±2.0 0.5 Balance 12.75 140 3.7 47
CuW(65) 35±2.0 0.5 Balance 13.30 155 3.9 44
CuW(70) 30±2.0 0.5 Balance 13.80 175 4.1 42 790
CuW(75) 25±2.0 0.5 Balance 14.50 195 4.5 38 885
CuW(80) 20±2.0 0.5 Balance 15.15 220 5.0 34 980
CuW(85) 15±2.0 0.5 Balance 15.90 240 5.7 30 1080
CuW(90) 10±2.0 0.5 Balance 16.75 260 6.5 27 1160

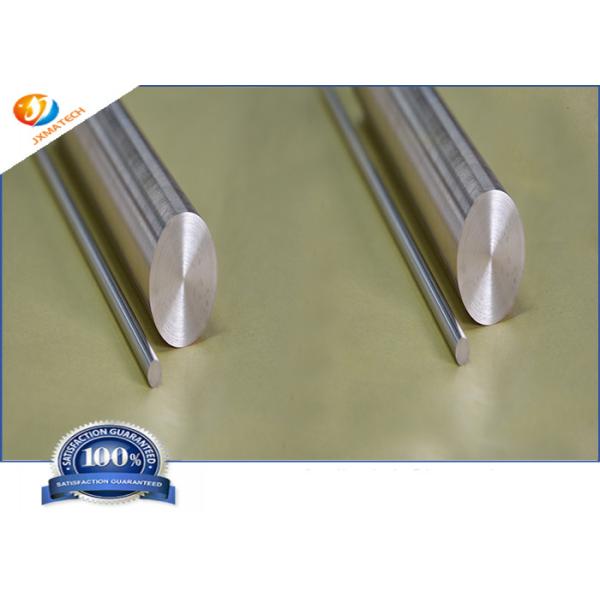

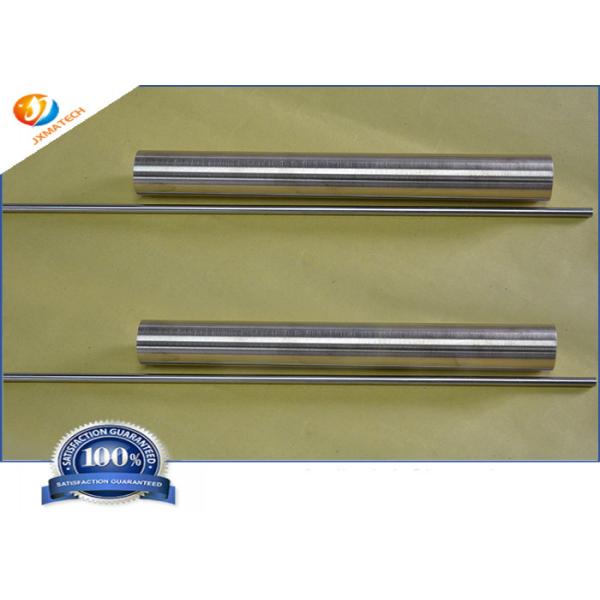

Tungsten Copper Bar picture:
W70Cu30 Tungsten Copper Bar Electrodes For Resistance WeldingW70Cu30 Tungsten Copper Bar Electrodes For Resistance Welding

Production process of Tungsten Copper Bar

Tungsten-copper is an alloy of tungsten and copper. Tungsten-copper alloy is made of fine tungsten and copper powder, which is refined by the process of isostatic molding, high temperature sintering of tungsten skeleton and copper dissolution through the first-class immersion sintering process.

Applications of Tungsten Copper Bar

  1. Resistance welding electrode: tungst-copper alloy combines the advantages of tungsten and copper, high temperature resistance, arc ablation resistance, high strength, specific weight, good electrical conductivity, good thermal conductivity, easy to machining, and has the characteristics of sweating and cooling. Because tungsten copper alloy has the characteristics of high hardness, high melting point and anti-adhesion of tungsten, it is often used to make convex welding and butt welding electrodes with certain wear resistance and high temperature resistance.
