Thickness 0.02~2 Zirconium Plate And Sheet 705 702 Material
Thickness 0.02~2 Zirconium Plate And Sheet 705 702 Material
Thickness 0.02~2 Zirconium Plate And Sheet 705 702 Material
Thickness 0.02~2 Zirconium Plate And Sheet 705 702 Material
Thickness 0.02~2 Zirconium Plate And Sheet 705 702 Material
Thickness 0.02~2 Zirconium Plate And Sheet 705 702 Material
Thickness 0.02~2 Zirconium Plate And Sheet 705 702 Material
Thickness 0.02~2 Zirconium Plate And Sheet 705 702 Material
Specifications
Brand Name :
jx
Model Number :
Zirconium Sheet and Plate 705702
Certification :
ASTMB551
Place of Origin :
China
MOQ :
10kgs
Price :
10-100USD/kg
Payment Terms :
L/C, T/T
Supply Ability :
10ton month
Delivery Time :
10days
Packaging Details :
plywood cases
Description

Zirconium Sheet and Plate 705702

Zirconium Sheet and Plate 705702 has outstanding nuclear energy properties and is an indispensable material for the development of the nuclear energy industry. my country’s large nuclear power plants generally use zirconium materials. If nuclear power is used for power generation, every million kilowatts of power generation capacity will consume 20-25 per year. Tons of zirconium metal. A 30,000 horsepower; nuclear submarine uses zirconium and zirconium alloys as nuclear fuel jackets and pressure tubes, and the use of zirconium reaches 20 to 30 tons. Zirconium is a rare metal with amazing corrosion resistance, extremely high melting point, ultra-high hardness and strength, etc. It is widely used in the fields of aerospace, military industry, nuclear reaction, and atomic energy. The corrosion-resistant and high-resistant titanium products used on "Shenzhou VI" are far less corrosion-resistant than zirconium. Its melting point is about 1600 degrees, while the melting point of zirconium is above 1800 degrees, and the melting point of zirconium dioxide is as high as 2700. Therefore, as an aerospace material, zirconium has much better performance in all aspects than titanium.

Zirconium is a rare metal with amazing corrosion resistance, extremely high melting point, ultra-high hardness and strength, etc. It is widely used in the fields of aerospace, military industry, nuclear reaction, and atomic energy. The corrosion-resistant and high-temperature-resistant titanium products used on the "Shen VI" are far less corrosion-resistant than zirconium. Its melting point is about 1600 degrees, while the melting point of zirconium is above 1800 degrees, and the melting point of zirconium dioxide is even higher. As high as 2700 degrees or more, zirconium, as an aerospace material, has much better performance than titanium in all aspects. It is also used to make flashlights for photography, as well as corrosion-resistant containers and pipes, especially resistant to hydrochloric acid and sulfuric acid. Zirconium chemicals can be used as crosslinking agents for polymers.

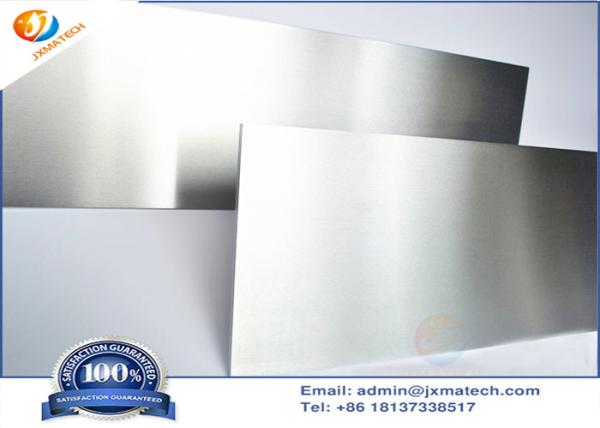

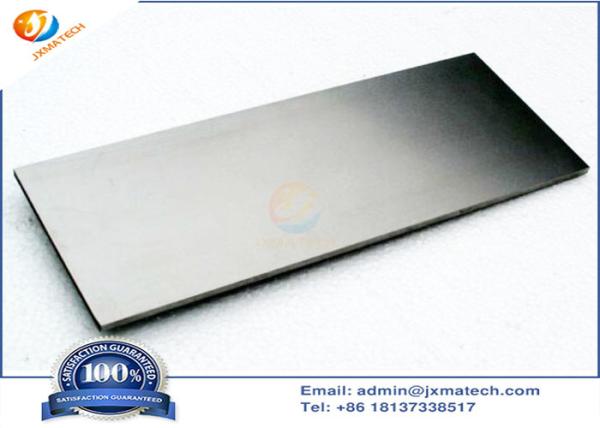

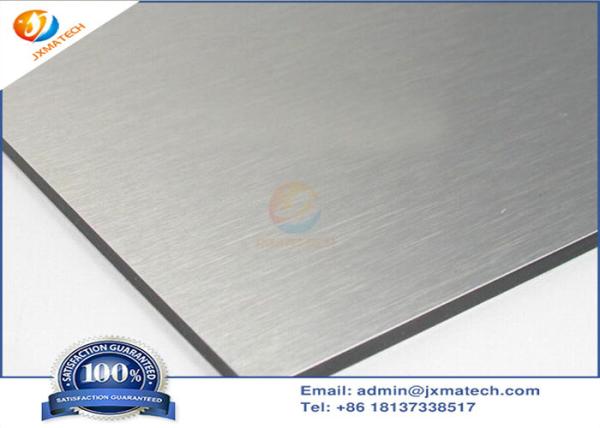

Zirconium Sheet and Plate 705702 Picture:

Thickness 0.02Thickness 0.02

Specifications Of Zirconium Plate

Material Zr702, Zr704, Zr705
Thickness 0.5~50mm, or 0.02"~2"
Width <1000mm>
Length <2000mm>


Composition of our Zirconium materials

Zr 702 Zr 704 Zr 705 Zircaloy-2 Zircaloy-4
Sn / 1~2% 1~2% 1.2~1.7% 1.2~1.7%
Fe <0> 0.1~0.2% <0> 0.07~0.2% 0.07~0.2%
Cr <0> 0.1~0.2% <0> 0.05~0.15% 0.05~0.15%
Ni / / / 0.03~0.08% <0>
Hf 1~2.5% <4> <4>
Nb / / 2~3%
Zn+Hf ~99.5% ~97.5% ~95.5% ~98% ~98%


Zirconium Sheet and Plate 705702 Physical Properties

Material State Rm(≥)/MPa Rp0.2(Pa A50mm(≥)/%

Zirconium 702

(UNS R60702)

 annealed 379 207 16

Zirconium 704

(UNS R60704)

 annealed 413 241 14

Zirconium 705

(UNS R60705)

 annealed 552 379 16
