Balance Weight WNiFe Machined Heavy Tungsten Balls High Performance
Balance Weight WNiFe Machined Heavy Tungsten Balls High Performance
Balance Weight WNiFe Machined Heavy Tungsten Balls High Performance
Balance Weight WNiFe Machined Heavy Tungsten Balls High Performance
Balance Weight WNiFe Machined Heavy Tungsten Balls High Performance
Balance Weight WNiFe Machined Heavy Tungsten Balls High Performance
Balance Weight WNiFe Machined Heavy Tungsten Balls High Performance
Balance Weight WNiFe Machined Heavy Tungsten Balls High Performance
Specifications
Brand Name :
JINXING
Model Number :
WNiFe- Heavy Tungsten Balls
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
10 kg
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
2000 kg per month
Delivery Time :
15-20 days
Packaging Details :
plywood cases
Product Name :
Heavy Tungsten Balls
Grade :
WNiFe
Density :
16.2-18.5 g/cc
Purity :
>=90% W
Tensile Strength :
700-1400 MPa
Elongation :
<10%
Standard :
ASTM B777-2009
Applications :
Balance Weight
Description

90WNiFe High Performance Machined Heavy Tungsten Balls

Heavy Tungsten Balls are also known as tungsten heavy alloys because they weigh more than twice as much as steel. High specific gravity tungsten alloy is usually a refractory metal containing w-Ni-Fe, w-Ni-Cu or even w-Ni-Cu-Fe complex. Some tungsten alloys have rare earths and/or other metals such as Co, Mo, and Cr added. Heavy tungsten alloy has a very high melting point, twice the density of steel and more than 50% heavier than lead.

SPECIFICATION & CHEMICAL COMPOSITIONS (NOMINALS)

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
Density
(g/cc)		 16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
Hardness
(HRC)		 32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
Max		 770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
(Mpa)		 620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
Elongation
(%)		 5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

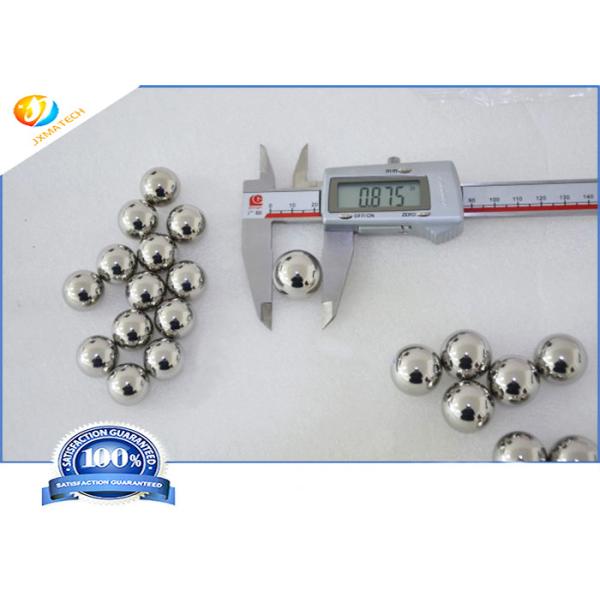

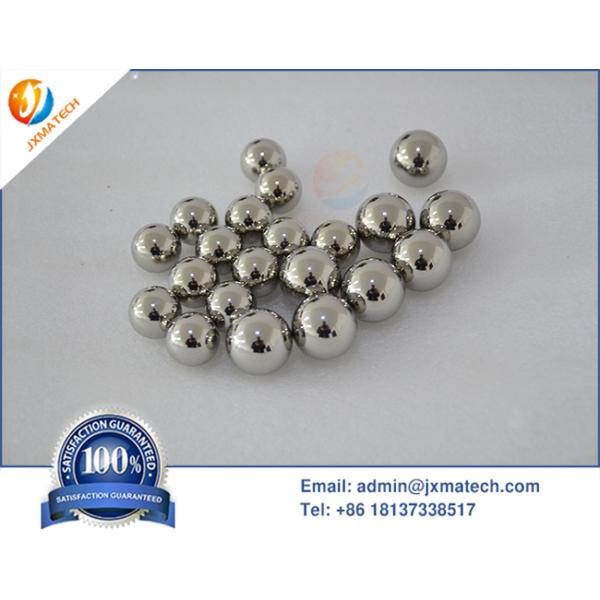

Heavy Tungsten Balls Picture:
Balance Weight WNiFe Machined Heavy Tungsten Balls High Performance

Balance Weight WNiFe Machined Heavy Tungsten Balls High Performance

Introduction and characteristics of Heavy Tungsten Balls

Heavy Tungsten Balls are mainly divided into two series: W-Ni-Fe and W-Ni-Cu, and even W-Ni-Fe-Cu. In contrast, the W-Ni-Fe alloy has better mechanical properties and plays a huge role in the defense industry and various fields of the national economy. It is a very important new military material in the national defense industry and has gradually been popularized in various civilian industries.

Tungsten alloy has a series of excellent properties, significant ratio: generally 16.5-18.75g/cm3, high strength: tensile strength 700-1000mpa, strong ray absorption ability: 30-40% higher than lead, high thermal conductivity: it is mold steel 5 times; low thermal expansion coefficient: only 1/2-1/3 of steel, good electrical conductivity; good weldability and machinability.

Application of Tungsten Balls

Tungsten balls are small in size and can be used in missile weapons, projectiles, armor-piercing projectiles, hunting gear, shotguns, prefabricated fragments, missile weapons, armor-piercing projectiles and balance force bombs; measuring oil balance force; and some precision instruments, such as mobile phone vibrators, Clock weights, watch weights, cell phone vibrators, flywheel weights, tungsten balls and tungsten weights are widely used in counterweights and factories, as well as military.
