Specifications
Brand Name :
JX
Model Number :
Tungsten Nickel Copper Alloy W-Ni-Cu
Certification :
ISO
Place of Origin :
China
MOQ :
10kgs
Price :
according to actual products
Payment Terms :
T/T
Supply Ability :
300kgs month
Delivery Time :
25days
Packaging Details :
standard packing
size :
as request
Quality :
ISO9001:2008
Surface :
polishing,burnishing,black surface
delivery time :
25days
packing :
standard exporting
Name :
Tungsten Nickel Copper Alloy W-Ni-Cu
Description

Tungsten Nickel Copper Alloy W-Ni-Cu

Tungsten Nickel Copper Introduction
Tungsten Nickel Copper material is a composite of tungsten and copper, with both tungsten low expansion characteristics, but also has copper of high thermal conductivity properties, and the tungsten and copper in the thermal expansion coefficient and thermal conductivity can be adjusted with the W-Cu composition, also the composite can be machined to various shape, these features make the application of this composite with great convenience. The thermal expansion can be adjusted to match with the following material:

Our Tungsten Nickel Copper Features:
No Fe, Co, Ni, Mn and other elements added as the sintering activator, to maintain a high thermal conductivity

Excellent hermeticity
Can provide semi-finished or finished (Ni/Au plated) products
Precision machining and excellent dimensional control, surface finish and flatness
With close technical support including product design, custom manufacturing, testing and post sale supports.
Product PropertiesPhysical Properties of Major Products

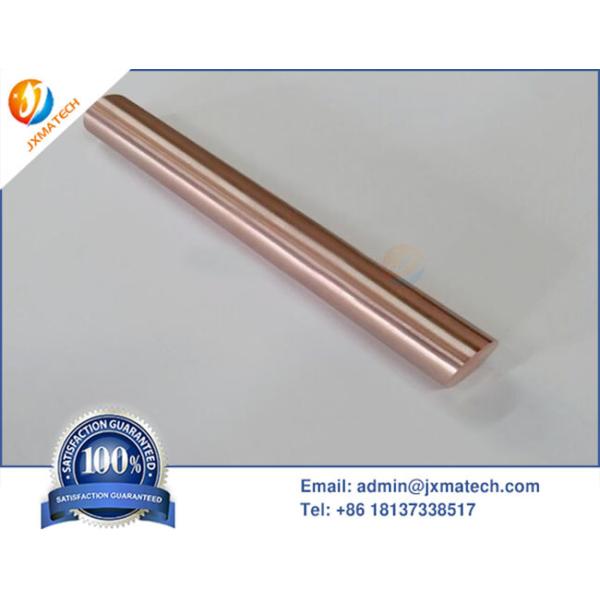

Tungsten Nickel Copper Picture:
W-Ni-Cu Tungsten Nickel Copper Alloy High Thermal ConductivityW-Ni-Cu Tungsten Nickel Copper Alloy High Thermal ConductivityW-Ni-Cu Tungsten Nickel Copper Alloy High Thermal Conductivity

Material Wt%
Tungsten Content		 Wt%
Copper Content		 g/
Density at 20ºC		 W/M.K
Thermal conductivity at 25ºC		 (10-6/k)
Coefficient of thermal expansion at 20ºC
W90Cu10 901 Balance 17.0 180-190 6.5
W85Cu15 851 Balance 16.4 190-200 7.0
W80Cu20 801 Balance 15.6 200-210 8.3
W75Cu25 751 Balance 14.9 220-230 9.0
W50Cu50 501 Balance 12.2 310-340 12.5
