10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
Specifications
Brand Name :
JX
Model Number :
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
Certification :
ISO
Place of Origin :
China
MOQ :
10kgs
Price :
according to actual products
Payment Terms :
T/T
Supply Ability :
300kgs month
Delivery Time :
25days
Packaging Details :
standard packing
size :
as request
Quality :
ISO9001:2008
Surface :
polishing,burnishing,black surface
delivery time :
25days
packing :
standard exporting
Name :
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
Description

10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface

Tungsten Copper Alloy Tubes Description


The alloy is the composite of tungsten and copper which own he excellent performance of tungsten and copper

Tungsten Copper Alloy Tubes Specification:
Surface: Ground, polished
Dia:2-100mm.
Length: 10-500mm
W/Cu: W(50-90%)/Cu(10-50%)

Tungsten Copper Alloy Tubes Character:
1.better heat resistant;
2.better ablate-resistant;
3.high intensity
4.high density;
5.excellent thermal and electrical conductivity;
6.easy to be machined.

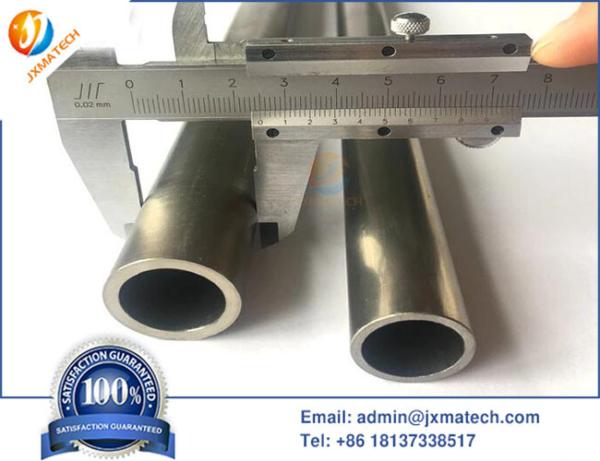

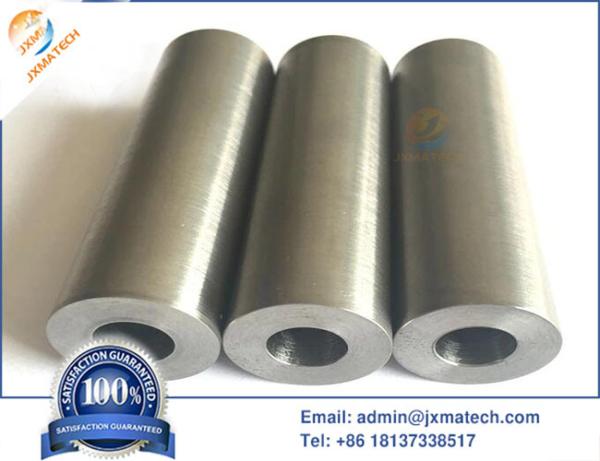

Tungsten Copper Alloy Tubes Picture:
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
Tungsten Copper Alloy Tubes Application:
1) Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors
2) Electrodes in electric spark erosion cutting machines
3) Heat sinks as passive cooling elements of electronic devices
4) Electrodes for Resistance Welding


Brand and NO.
Chemical components%
Physical properties


Cu
Total impurities
≤

W
Density
(g/cm³)
≥
Hardness
HB
≥
Resistivity
(µΩ·cm) ≤
Conductivity
IACS%≥
Bending strength
Mpa≥

CuW(50)
50±2.0
0.5
Bal.
11.85
115
3.2
54

CuW(55)
45±2.0
0.5
Bal.
12.30
125
3.5
49

CuW(60)
40±2.0
0.5
Bal.
12.75
140
3.7
47

CuW(65)
35±2.0
0.5
Bal.
13.30
155
3.9
44

CuW(70)
30±2.0
0.5
Bal.
13.80
175
4.1
42
790

CuW(75)
25±2.0
0.5
Bal.
14.50
195
4.5
38
885

CuW(80)
20±2.0
0.5
Bal.
15.15
220
5.0
34
980

CuW(85)
15±2.0
0.5
Bal.
15.90
240
5.7
30
1080

CuW(90)
10±2.0
0.5
Bal.
16.75
260
6.5		 27
1160
