W85Cu15 W90Cu10 tungsten Copper Heat Sinks Material
W85Cu15 W90Cu10 tungsten Copper Heat Sinks Material
W85Cu15 W90Cu10 tungsten Copper Heat Sinks Material
W85Cu15 W90Cu10 tungsten Copper Heat Sinks Material
W85Cu15 W90Cu10 tungsten Copper Heat Sinks Material
W85Cu15 W90Cu10 tungsten Copper Heat Sinks Material
Specifications
Brand Name :
JX
Model Number :
W90Cu10 Heat Sinks Tungsten Copper Heating Sink Material
Certification :
ISO
Place of Origin :
China
MOQ :
10kgs
Price :
according to actual products
Payment Terms :
T/T
Supply Ability :
300kgs month
Delivery Time :
25days
Packaging Details :
standard packing
size :
as request
Quality :
ISO9001:2008
Surface :
polishing,burnishing,black surface
delivery time :
25days
packing :
standard exporting
Name :
W90Cu10 Heat Sinks Tungsten Copper Heating Sink Material
Description

W90Cu10 Heat Sinks Tungsten Copper Heating Sink Material

Product Description

  • Tungsten Copper Heating Sink material is a composite of tungsten and copper, with both tungsten low expansion characteristics, but also has copper of high thermal conductivity properties, and the tungsten and copper in the thermal expansion coefficient and thermal conductivity can be adjusted with the W-Cu composition, also the composite can be machined to various shape, these features make the application of this composite with great convenience.

  • The quality of our composite is the leader in China, contributed with our strict quality control measures. Our porosity is very low; our surface/volume ratio(measured with BET) is only 50% of similar products of 100 pieces of 5*5*2 mm W80-Cu20 composite). Our products have high hermeticity and can pass the He mass-spectrometer leak test (<<5*-9Pa·/S)

  • Tungsten Copper Heating Sink Features:

  • No Fe, Co, Ni, Mn and other elements added as the sintering activator, to maintain a high thermal conductivity

  • Excellent hermeticity

  • Can provide semi-finished or finished (Ni/Au plated) products

  • Precision machining and excellent dimensional control, surface finish and flatness

  • With close technical support including product design, custom manufacturing, testing and post sale supports.

  • Product Properties

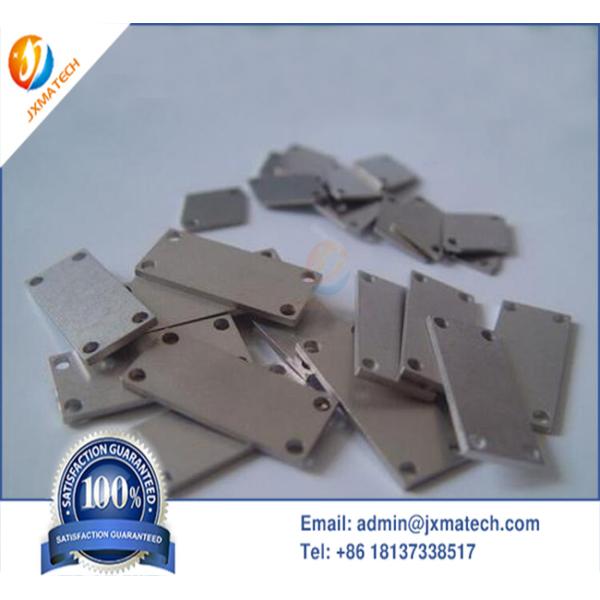

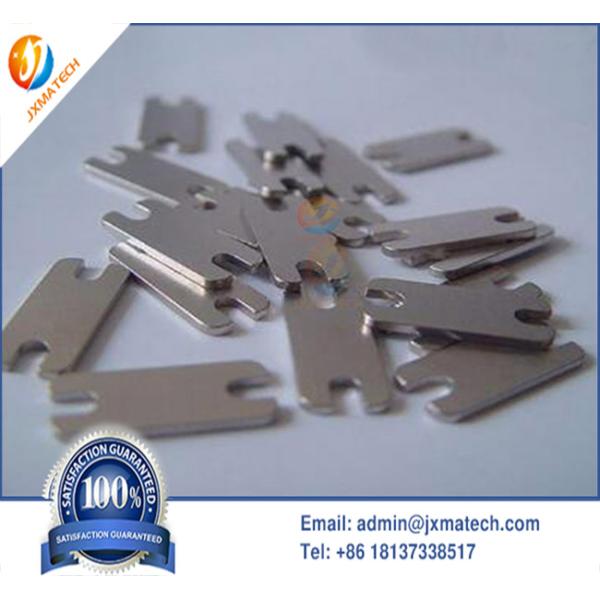

  • Tungsten Copper Heating Sink Picture:

  • W85Cu15 W90Cu10 tungsten Copper Heat Sinks MaterialW85Cu15 W90Cu10 tungsten Copper Heat Sinks Material

Physical Properties of Major Products

Material Wt%
Tungsten Content		 Wt%
Copper Content		 g/
Density at 20ºC		 W/M.K
Thermal conductivity at 25ºC		 (10-6/k)
Coefficient of thermal expansion at 20ºC
W90Cu10 90 Balance 17.0 180-190 6.5
W85Cu15 85 Balance 16.4 190-200 7.0
W80Cu20 80 Balance 15.6 200-210 8.3
W75Cu25 75 Balance 14.9 220-230 9.0
W50Cu50 50 Balance 12.2 310-340 12.5
