Dia 2mm-100mm CuW(50) Copper Tungsten Rod Heat Resistant
Dia 2mm-100mm CuW(50) Copper Tungsten Rod Heat Resistant
Dia 2mm-100mm CuW(50) Copper Tungsten Rod Heat Resistant
Dia 2mm-100mm CuW(50) Copper Tungsten Rod Heat Resistant
Dia 2mm-100mm CuW(50) Copper Tungsten Rod Heat Resistant
Dia 2mm-100mm CuW(50) Copper Tungsten Rod Heat Resistant
Dia 2mm-100mm CuW(50) Copper Tungsten Rod Heat Resistant
Dia 2mm-100mm CuW(50) Copper Tungsten Rod Heat Resistant
Specifications
Brand Name :
JX
Model Number :
Copper Tungsten Rod For Sale
Certification :
ISO
Place of Origin :
China
MOQ :
10kgs
Price :
according to actual products
Payment Terms :
T/T
Supply Ability :
300kgs month
Delivery Time :
25days
Packaging Details :
standard packing
size :
as request
Quality :
ISO9001:2008
Surface :
polishing,burnishing,black surface
delivery time :
25days
packing :
standard exporting
Name :
Copper Tungsten Rod For Sale
Description

Copper Tungsten Rod For Sale

Product Description

Copper Tungsten Rod For Sale (Cu-W)Alloy is the composite of tungsten and copper which own he excellent performance of tungsten and copper. It is used widely in such industries as engine, electric power, electron, metallurgy, spaceflight and aviation.

Specification:
Surface: Ground, polished
Dia: 2-100mm
W/Cu: W(50-90%)/Cu(10-50%)

Copper Tungsten Rod For Sale Properties:
1. Better heat resistant;
2. Better ablate-resistant;
3. High intensity
4. High density;
5. Excellent thermal and electrical conductivity;
6. Easyto be machined.

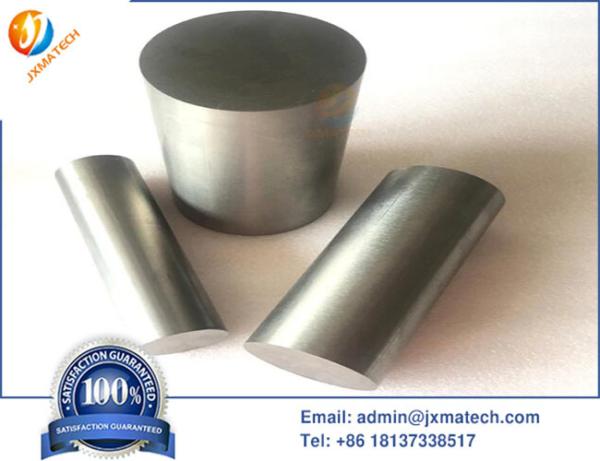

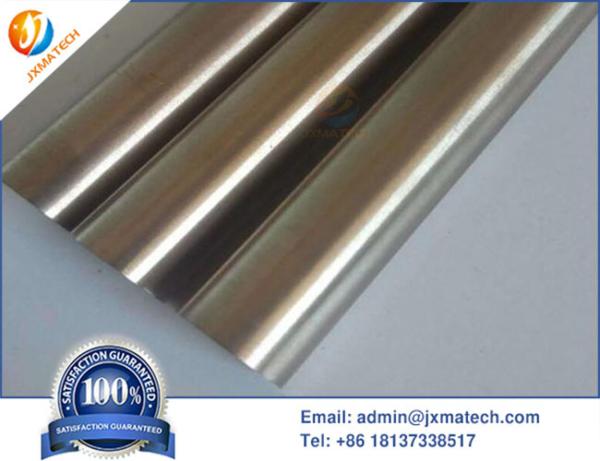

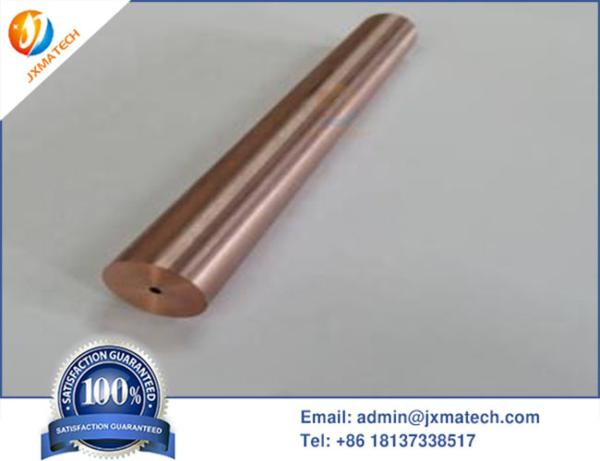

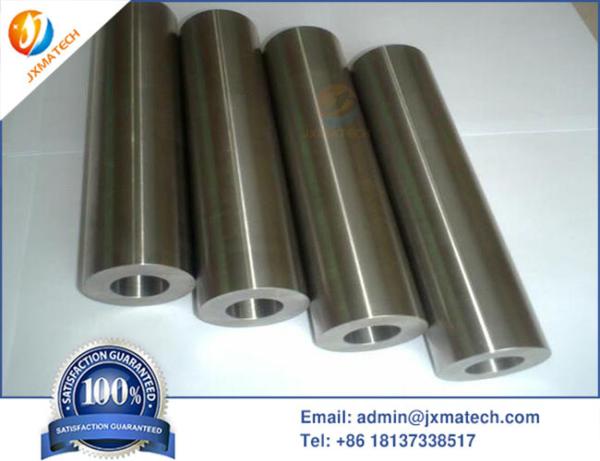

Copper Tungsten Rod For Sale Picture:
Dia 2mm-100mm CuW(50) Copper Tungsten Rod Heat ResistantDia 2mm-100mm CuW(50) Copper Tungsten Rod Heat Resistant

Brand and NO. Chemical components% Physical properties

Cu		 Total impurities
≤
W		 Density
(g/cm³)
≥		 Hardness
HB
≥		 Resistivity
(µΩ·cm) ≤		 Conductivity
IACS%≥		 Bending strength
Mpa≥
CuW(50) 50±2.0 0.5 Bal. 11.85 115 3.2 54
CuW(55) 45±2.0 0.5 Bal. 12.30 125 3.5 49
CuW(60) 40±2.0 0.5 Bal. 12.75 140 3.7 47
CuW(65) 35±2.0 0.5 Bal. 13.30 155 3.9 44
CuW(70) 30±2.0 0.5 Bal. 13.80 175 4.1 42 790
CuW(75) 25±2.0 0.5 Bal. 14.50 195 4.5 38 885
CuW(80) 20±2.0 0.5 Bal. 15.15 220 5.0 34 980
CuW(85) 15±2.0 0.5 Bal. 15.90 240 5.7 30 1080
CuW(90) 10±2.0 0.5 Bal. 16.75 260 6.5 27 1160
