Specifications
Brand Name :
JX
Model Number :
Tungsten Heavy Alloy / Wnife/ Wnicu / Tungsten Alloys
Certification :
ISO
Place of Origin :
China
MOQ :
10kgs
Price :
according to actual products
Payment Terms :
T/T
Supply Ability :
300kgs month
Delivery Time :
25days
Packaging Details :
standard packing
size :
as request
Quality :
ISO9001:2008
Surface :
polishing,burnishing,black surface
delivery time :
25days
packing :
standard exporting
Name :
Tungsten Heavy Alloy / Wnife/ Wnicu / Tungsten Alloys
Description

2022 Heavy Tungsten Alloy / Wnife/ Wnicu / Tungsten Alloys

Heavy Tungsten Alloy Description

High density alloy
Tungsten Alloy Code: GMW
Density: (17-18.5) g/cm3
Main Component: W(88-98)% with the addition of nickel and copper or nickel and iron, etc.

Main Application:
1- Shakers in micromotor widely used in toys and mobile phones.
2- Radioshielding materials. For example, collimator in flaw detector and clinical Radioshielding needle.
3- Parts of balance wight
4- Widely used in military equipment and fishing equipment to raplace uranium and plumbum for no pollution in circumstance.
5- Used in electro-forge and electro-heading.
6- Used in armor-piercer.
7- Contacts material in high voltage.
8- Inertia balance weight ball in missile, plane and race-car.

Tungsten Heavy Alloy Advantages:
- High density
- Excellent mechanical properties such as high vibration-damping capacity and high Young's modulus.
- Excellent radiation-shielding property
- High thermal conductivity with low thermal expansion coefficient
- Higher high-temperature strength and thermal shock resistance
- High oxidation resistance and corrosion resistance

**We supply this material as per customerized sizes and properties.

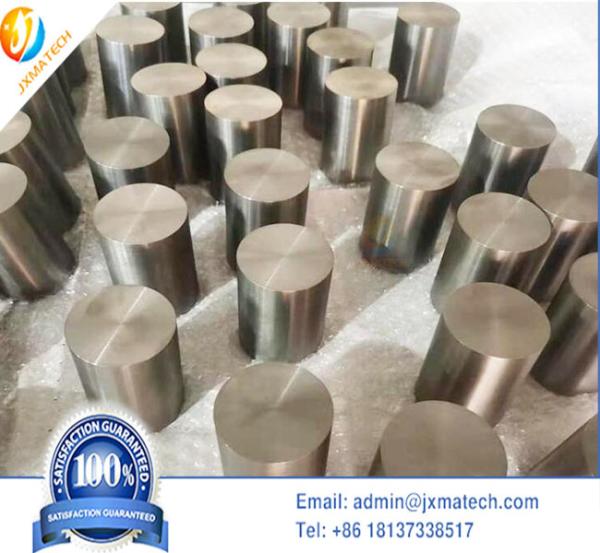

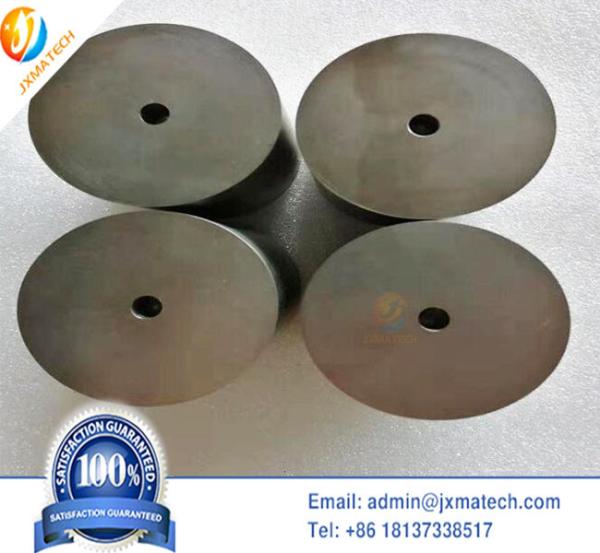

Tungsten Heavy Alloy Picture:
Polishing Burnishing Tungsten Alloys Corrosion Resistance High DensityPolishing Burnishing Tungsten Alloys Corrosion Resistance High Density

Typical Properties*
HD 17
90% W
6% Ni
4% Cu		 HD 17D
90% W
7% Ni
3% Fe		 HD 17.5
92.5% W
5.25% Ni
2.25% Fe		 HD 17.6
92.5% W
Balance
Ni Fe Mo		 HD 17.7
93% W
Balance
Ni Fe Mo		 HD 18
95% W
3.5% Ni
1.5% Cu		 HD 18D
95% W
3.5% Ni
1.5% Fe		 HD 18.5
97% W
2.1% Ni
.9% Fe
Mill, Spec. T-21014 D
SAE Aero. Materal
Spec. (AMS) 7725C
ASTM-B-777-97		 Class 1
Type 1
Class 1		 Class 1
Type 2
Class 1		 Class 2
----
Class 2		 Diemitech
----
----		 S Chat. Free
----
----		 Class 3
----
Class 3		 Class 3
----
Class 3		 Class 4
----
Class 4
Density Gms/cc
Density Lbs/cu. in.		 17
.614		 17
.614		 17.5
.632		 17.6
.636		 17.7
.639		 18
.650		 18
.650		 18.5
.668
Hardness Rockwell C 24 25 26 30 32 27 27 28
Ultimate Tensile Strength (PSI) 110,000 120,000 114,000 120,000 125,000 110,000 120,000 123,000
Yeild Strength
.2% offset (PSI)		 80,000 88,000 84,000 90,000 95,000 85,000 90,000 85,000
Elongation (% in 1") 6 10 7 4 4 7 7 5
Proportional Elastic
Limit (PSI)		 45,000 52,000 46,000 55,000 60,000 45,000 44,000 45,000
Modules of
Elasticity (PSI)		 40 x 10 6 45 x 10 6 47 x 10 6 52 x 10 6 53 x 10 6 45 x 10 6 50 x 10 6 53 x 10 6
Coefficient of
Thermal Expansion
x 10 -6 / o C (20-400 o C)		 5.4 4.61 4.62 4.5 4.5 4.43 4.6 4.5
Thermal Conductivity
(CGS Units)		 .23 .18 .20 .27 .27 .33 .26 .30
Electrical
Conductivity
(% IACS)		 14 10 13 14 14 16 13 17
Magnetic Properties NIL Slightly Magnetic Slightly Magnetic Slightly Magnetic Slightly Magnetic NIL Slightly Magnetic Slightly Magnetic
* Properties may vary according to size and shap of part.
** Composition shown is typical and may change for manufacturing purposes or to meet physical and/or application requirements.
If non-magnetic material is required, it should be specified.
