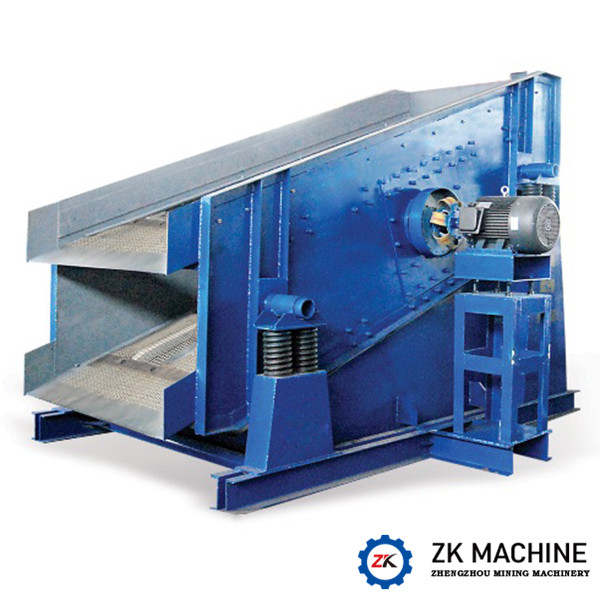

10-600TPH Vibrating Screen Machine For Ore Dressing
10-600TPH Vibrating Screen Machine For Ore Dressing
10-600TPH Vibrating Screen Machine For Ore Dressing
10-600TPH Vibrating Screen Machine For Ore Dressing
10-600TPH Vibrating Screen Machine For Ore Dressing
10-600TPH Vibrating Screen Machine For Ore Dressing
10-600TPH Vibrating Screen Machine For Ore Dressing
10-600TPH Vibrating Screen Machine For Ore Dressing
Specifications
Brand Name :
ZK
Model Number :
ZSG1237,2ZSG1860
Certification :
CE ISO Certification
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000-20000 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 Set / Sets per Month
Delivery Time :
30 days
Packaging Details :
Export standard container or as customers' requirements
Product Name :
Large Capacity Vibrating Screen Machine
Capacity :
15-650(t/h)
Model :
ZSG1237,2ZSG1860
Feeding size :
≤320(mm)
Sieve layer :
1-4
Material :
Chemicals, Building Materials, Coal
Business Scope :
design, manufacturer, onsite guidance
After sale service :
Engineers available to service machinery overseas
Warranty :
One Year
Equipment Condition :
New
Description

Large Capacity 10-600(T/H) Vibrating Screen Machine Used For Ore Dressing Long Life Time

Introduction

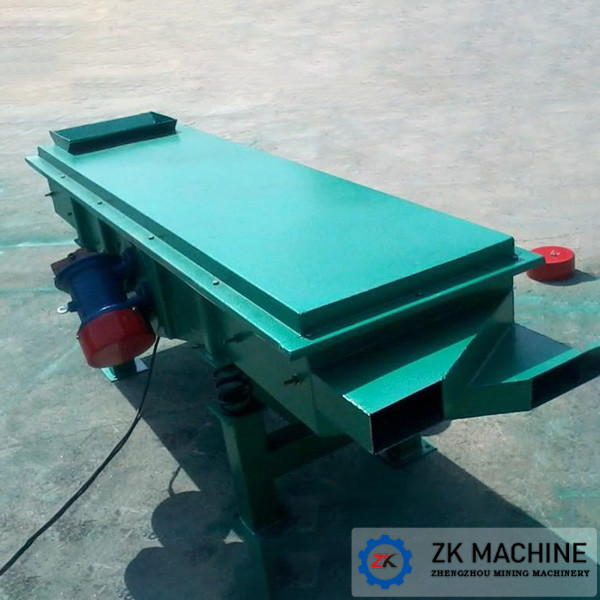

Linear vibrating screen can screen and classify powder and granular material. It is applied widely in plastics, abrasives, chemicals, pharmaceuticals, building materials, food, carbon, fertilizer and other industries. Vibrating screen is composed of eccentric exciter, screen box, motor, base and supporting device.

10-600TPH Vibrating Screen Machine For Ore Dressing

Our Advantages​:

1. Sieve machine design, ingenious and easy to assemble, one person can operate the screening machine.
2. Independent and other related brand manufacturers, compared with a larger screen area and high efficiency of processing capacity.
3. Unique screen structure design, convenient and fast change screen (only 3 to 5 minutes), in addition, this design allows the use of a variety of screen (nylon, special dragon, PP nets).
4. The parent network to fully support the fine mesh, so fine mesh scored a longer life, and reduce the supplies of fine mesh, the production process and the long time can reduce a lot of cost.

10-600TPH Vibrating Screen Machine For Ore Dressing

Working Principle:

The straight shaking movement is realizedby two unbalanced gravities of high frequency screen. Two motors drive upperand lower shaft separately do reversed rotation movements. The existing forces,produced by synchronous opposite rotation and formed 30°with screen face, are overlapped. At the same, existing forces inother direction are offset. Then the single direction existing force is formedso that the screen shaking reciprocally along straight line. Because the screenis shaking along overlapped exciting force in high frequency and no shaking inother direction, the screen is working stably.

Screening​ Specifications:

Model Sieve
Specifi-
cations		 Sieve layer Mesh
size		 Feeding size Cap-acity Motor Power Total
Weight		 Vibr-ating frequ-ency Double ampl-
itude		 Sieve
obliq-uity		 Dimensions
(L*W)(mm) Layer mm mm (t/h) kw kg (Hz) (mm) o L*W*H(mm)
ZSG1237 3700*1200 1 4-50 <=200 10-100 5.5*2 2250 16 6-8 15 3800*2050*1920
2ZSG1237 3700*1200 2 4-50 <=200 10-100 5.5*2 3345 16 6-8 15 3800*2050*2200
ZSG1443 4300*1400 1 4-50 <=200 10-150 5.5*2 4100 16 6-8 15 4500*3040*2500
2ZSG1443 4300*1400 2 4-50 <=200 10-150 5.5*2 4900 16 6-8 15 4500*3040*2700
3ZSG1443 4300*1400 3 4-50 <=200 10-150 5.5*2 5870 16 6-8 15 4500*3040*2820
2ZSG1548 4800*1500 2 5-50 <=200 15-200 7.5*2 5836 16 8-10 15 4800*3140*2814
3ZSG1548 4800*1500 3 5-50 <=200 15-200 7.5*2 6900 16 8-10 15 4799*3140*3014
2ZSG1848 4800*1800 2 5-50 <=300 50-500 7.5*2 6489 16 8-10 15 4799*3440*2814
3ZSG1848 4800*1800 3 5-50 <=300 50-500 7.5*2 7750 16 8-10 15 4799*3440*3014
4ZSG1848 4800*1800 4 5-50 <=200 50-500 11*2 8300 16 8-10 15 4799*3440*3503
2ZSG1860 6000*1800 2 5-150 <=300 80-600 11*2 9950 16 8-10 15 6000*3440*3326
