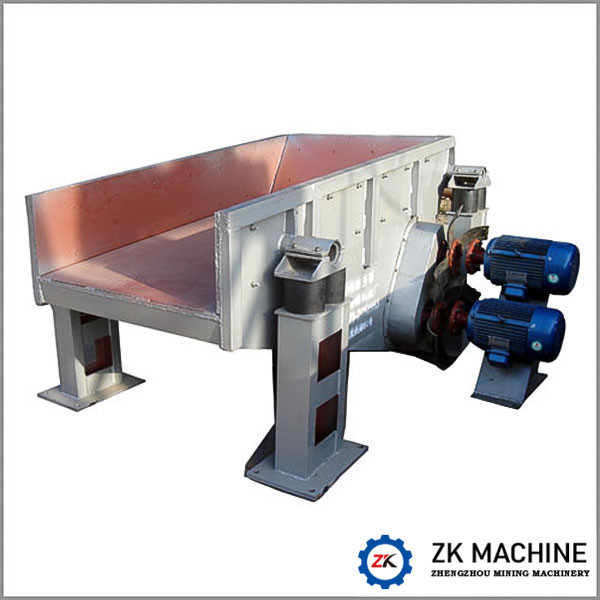

Light Weight 10t/H 500t/H Electromagnetic Vibratory Feeder For Coal
Light Weight 10t/H 500t/H Electromagnetic Vibratory Feeder For Coal
Specifications
Brand Name :
ZK
Model Number :
GZ1-GZ9
Certification :
CE ISO Certification
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Set / Sets per Month
Delivery Time :
30 days
Packaging Details :
Export standard container or as customers' requirements
Product Name :
GZ Serial Electromagnetic Vibratory Feeder For Coal
Solution :
Customized
Warranty :
12 Months
Capacity :
10-500(t/h)
Motor type :
AC Motor
Spare parts :
Supply all using life
Voltage :
220V/380V/440
Installation :
under supervision of our engineer
Description

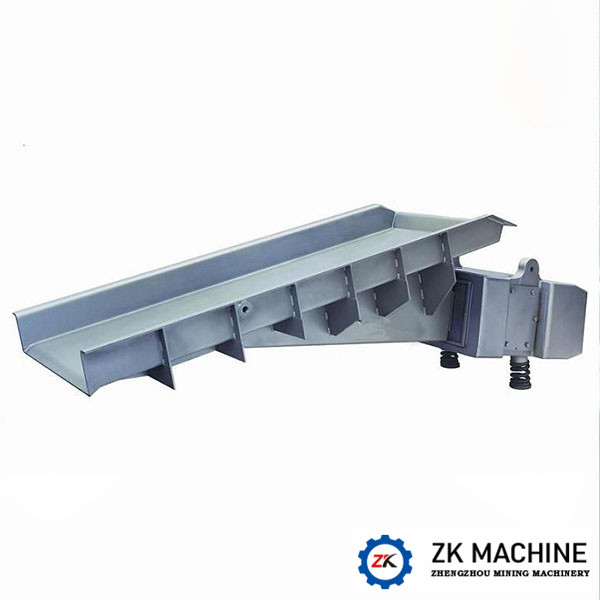

Light Weight GZ Serial Electromagnetic Vibratory Feeder For Coal​

Structure:

GZ series Electromagnetic Vibration Feeder is mainly composed with material tank, electromagnetic vibration exciter, damper spring and control box, the features are showing as below:

1. Material Tank

Tank has been welding by wear-resistance steel plate, with high strength and rigidity, mainly used for conveying.

2. Electromagnetic Vibration Exciter

Exciter mainly composed with electromagnet (Iron core and coil), armature and the main vibration spring between each. Exciter is the vibration source, which can adjust the strength of vibration force by control device.

3. Control Box

Mainly used for adjusting the discretion of the rectifier voltage to realize the control for vibration force.

Light Weight 10t/H 500t/H Electromagnetic Vibratory Feeder For Coal

Vibrating Feeder Specification:

Model Capacity(t/h) Max Feed Size(mm) Motor Power(kw)
Level -10°
GZ1 5 7 50 0.06
GZ2 10 14 50 0.15
GZ3 25 35 75 0.2
GZ4 50 70 100 0.45
GZ5 100 140 150 0.65
GZ6 150 210 200 1.5
GZ7 250 350 250 3
GZ8 400 560 300 4
GZ9 600 840 350 5.5

Light Weight 10t/H 500t/H Electromagnetic Vibratory Feeder For Coal

GZ serial electro-vibrating feeder is widely used in mining, metallurgy, coal, building material, light industry, chemical industry, electric power, machinery, grain and oil and other industries.

Product Advantages:

Vibrating Feeder—Product advantages

1. Low noise, reliable operation, large feeding capacity

2. High starting speed; stable operation and parking

3. Novel design; less wear of feed chute

Application:

vibrating feeder — Product application

It is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food and other industries. It is used for automatic matching, quantitative package and automatic regulating process. It can feed lump, granular and powdered materials from the storage silo or hopper to devices uniformly or quantitatively.
