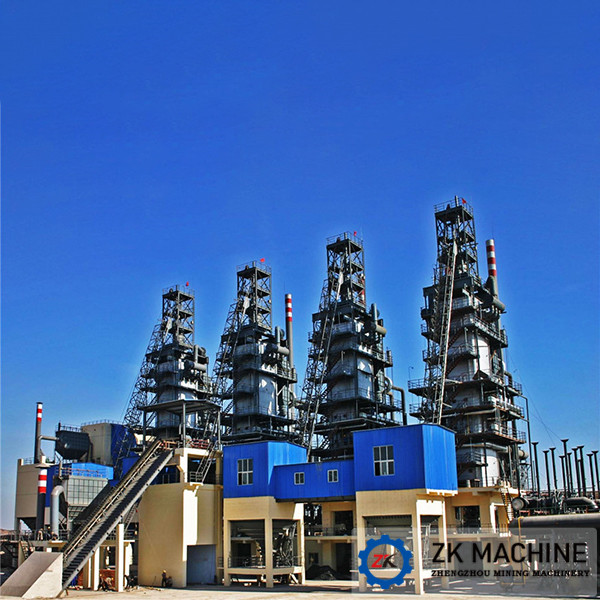

50-800tpd Vertical Shaft Kiln Limestone For Quicklime Calcination
50-800tpd Vertical Shaft Kiln Limestone For Quicklime Calcination
50-800tpd Vertical Shaft Kiln Limestone For Quicklime Calcination
50-800tpd Vertical Shaft Kiln Limestone For Quicklime Calcination
Specifications
Brand Name :
ZK
Model Number :
Ø2.5-Ø6.0
Certification :
CE ISO Certification
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Set / Sets per Month
Delivery Time :
30 days
Packaging Details :
Export standard container or as customers' requirements
Product Name :
Vertical Shaft Kiln Limestone For Quicklime Calcination
Weight :
According to different model
Business Scope :
design, manufacturer, onsite guidance
Capacity :
50-800tpd
Material :
Dolomite Lime
Equipment Condition :
New
Advantage :
High degree of automation
Voltage :
220V/380V/440
Description

50-800tpd Vertical Shaft Kiln Limestone For Quicklime Calcination

Lime Vertical Shaft Kiln Product Description:
Vertical Shaft Kiln is building material equipment, is the main equipment for sintering limestone in lime production plant, Vertical Shaft Kiln can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
Lime Vertical Shaft Kiln is used in the most important equipment in lime production line.


Lime Vertical Shaft Kiln Usage:
Lime can be divided into ordinary lime and active lime according to the nature. The degree of activity is generally less than 200ml, which is mainly used for building and repairing roads. Active lime has a high degree with the value of 300-420ml as well as with advantage of high porosity, high reaction, and low consumption in process, controllable process, widely applied to the steel smelting, calcium carbide, chemical industry, desulfurization and etc.

Lime Vertical Shaft Kiln Main technical:
The Vertical Shaft Kiln successful industry application of environment-friendly, energy-saving active lime stone with vertical preheated and vertical cooler breaks traditional pattern of lime production. Due to reduction of fuel consumption significantly and reducing exhaust emissions, coupled with the adoption of pulse-packs dust-catcher purify exhaust, not only makes production cost and the energy consumption greatly reduced, but also the calcinations process of emission slandered, environmental condition is kept substantially.


Lime Vertical Shaft Kiln Technical Parameters:

Technical Parameters Of Vertical Klin (Mixed Fuel)
Capacity(t/d) Effective Volume Effective Height Effective Section Limestone Size Heat Consumption CaO Activity
(m3) (m) Dia.(m) (mm) (kJ/kg) (%) (mL)
100 98 20 Ø2.5 30~60/40~80 <4600 >90 >300
120 141 20 Ø3.0 30~60/40~80 <4600 >90 >300
150 202 21 Ø3.5 30~60/40~80 <4500 >90 >300
200 301 24 Ø4.0 30~60/40~80 <4500 >90 >300
300 397 25 Ø4.5 30~60/40~80 <4400 >90 >300
400 491 25 Ø5.0 30~60/40~80 <4200 >90 >300
500 735 26 Ø6.0 30~60/40~80 <4200 >90 >300
Remarks: All above data are for reference only.
　 　 　 　 　 　 　 　
Technical Parameters Of Vertical Lime Kiln (Fuel: Gas)
Capacity(t/d) Effective Volume Effective Height Effective Section Limestone Size Heat Consumption CaO Activity
(m3) (m) Dia. or L×W(m) (mm) (kJ/kg) (%) (mL)
50 70 20 Ø2.0 30~60/40~80 <4600 >90 >300
70 80 20 Ø2.5 30~60/40~80 <4600 >90 >300
80 100 20 Ø2.5 30~60/40~80 <4500 >90 >300
100 120 20 Ø2.7 30~60/40~80 <4500 >90 >300
120 140 20 Ø3.0 30~60/40~80 <4400 >90 >300
130 150 21 Ø3.0 30~60/40~80 <4200 >90 >300
150 200 20 2.5×4.5 30~60/40~80 <4200 >90 >300
Remarks: Above data are for reference only, and suitable for Vertical Kiln which use low heat fuel. Utilization coefficient of Vertical Kiln which use high heat fuel is higher.

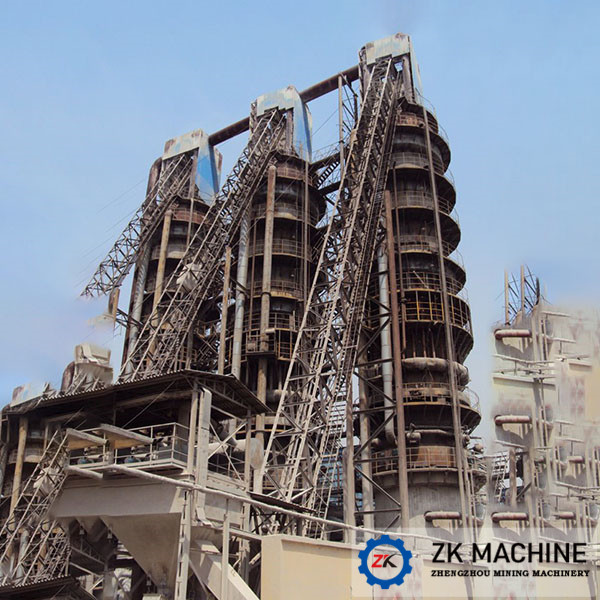

50-800tpd Vertical Shaft Kiln Limestone For Quicklime Calcination50-800tpd Vertical Shaft Kiln Limestone For Quicklime Calcination

Lime Vertical Shaft Kiln Main Advantage:
1. Good quality and high output.
2. Stable production, higher security.
3. Simple structure, beneficial operation and maintenance.
4. Fine grade limestone can be calcined, full use of mine resources.
5. Low heat consumption per unit of product.
6. Making full use of industrial waste gas as a fuel for lime burning.
7. Environmental protection, the adoption of pulse bag filter dust collecting dus.
8. High automation level, reducing artificial and improving efficiency.

Packaging & Shipping
Packaging Detail : The main machinery is in nude packing,and spare parts in Wooden or steel box standard export packing, suitable for long distance delivery.
Delivery Detail:within 30days after your payment
