Specifications
Brand Name :
ZKMANET
Model Number :
ZKManet3371
Certification :
CE, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
USD 3799~4999 per piece
Payment Terms :
T/T, Western Union, MoneyGram, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
3-7 work days
Packaging Details :
carton
Default Frequency :
1300-1500MHz (70MHz-6GHz customizable)
Channel Bandwidth :
2.5/5/10/20Mhz
RF Channel :
2T2R
Output Power :
43dBm
4G :
Full Netcom
Range :
20-40KM(visible range)
Network Capability :
8 nodes (Customizable)
Data Rate :
56Mbps
Encryption :
AES
Dimensions :
220*180*85mm
Weight :
3.5kg
Description

43dBm Drone UAV Video Data Link Radio Wireless IP HDMI Video Transmitter for Long Range Transmission

Product Description

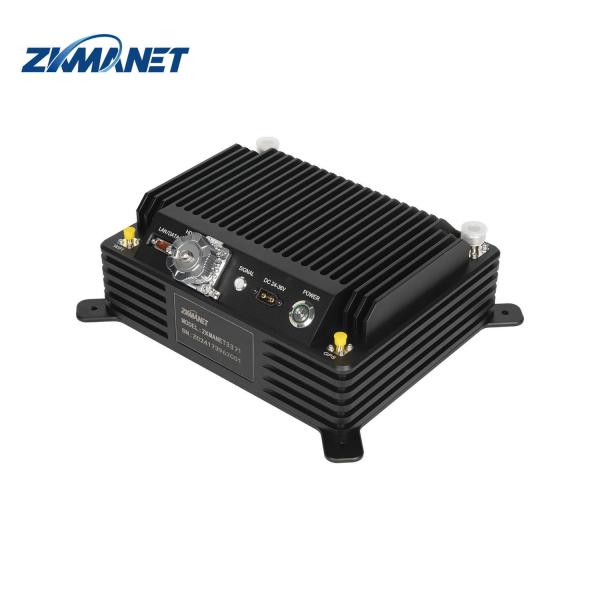

ZKManet3371 is a high-power radio utilizing an FPGA solution, supporting adaptive frequency hopping and selection. It has the capability to automatically select the optimal frequency in the presence of electromagnetic interference, enabling broadband service transmission in complex scenarios through self-organizing networks. The device is designed with professional shock absorption features, making it easy to install on vehicles, ships, and aircraft. It can be easily powered on with a single button press, without the need for configuration or parameter changes.

Features

* Data rate up to 56Mbps
* Supports two-way voice intercom
* Supports WIFI
* Supports GPS/BD
* Supports HDMI input
* Supports IP data transparent transmission
* Easy operation

Specifications

RF Parameters
Default Frequencies 1300-1500MHz (70MHz-6GHz customizable)
Channel Bandwidth 2.5M/5M/10M (20MHz/40MHz optional)
RF Waveform TDD-COFDM + 2T2R
Output Power 43dBm (43dBm)
Receive Sensitivity -100dBm@2.5MHz
Modulation Type BPSK/QPSK/16QAM/64QAM (adaptive)
FHSS Optional (>1000 hop/s)
Intelligent Frequency Slection Optional
Network Parameters
Network Size 8 nodes (Customizable)
Multi-hop Capability 15 hops (short message); 10 hops (voice); 8 hops (video)
Range Long Range Customizable
Data rate Up to 28Mbps@10MHz & 56Mbps@20MHz
Delay 7ms@2.5MHz/hop
Movement Speed >1000km/h
Start Time 27s
Positioning GPS/BD
Network Access Time <1s
Network Extension WIFI AP
Physical/Environment
Weight 3.5kg (w/o Antenna)
Dimensions 220*180*85mm
IP Rating IP66
Working Temp. -40°C~70°C
Electrical Parameters
Working Voltage 24-36VDC
Power Consumption ≤937dBm
Interface
LAN Interface *1
RS232 Interface *1
Video Interface HDMI*1

Detailed Photos

Dimensions
43dBm Drone UAV Video Data Link Radio Wireless IP HDMI Video Transmitter for Long Range TransmissionPanal Description

43dBm Drone UAV Video Data Link Radio Wireless IP HDMI Video Transmitter for Long Range Transmission
1. WIFI antenna interface
2. LAN/DATA Interface
3. HDMI Interface
4. MESH signal indicator
5. Power input port
6. Power push button
7. GPS antenna interface
8. MESH antenna Interface -1
9. MESH antenna Interface -2

Application

43dBm Drone UAV Video Data Link Radio Wireless IP HDMI Video Transmitter for Long Range Transmission

43dBm Drone UAV Video Data Link Radio Wireless IP HDMI Video Transmitter for Long Range Transmission
43dBm Drone UAV Video Data Link Radio Wireless IP HDMI Video Transmitter for Long Range Transmission

Company Profile

Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.
