Specifications
Brand Name :
ZKMANET
Model Number :
ZKManet1303R
Certification :
CE, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
USD 1599 per piece
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per year
Delivery Time :
3-7 work days
Packaging Details :
carton
Frequency :
300MHz-2.7GHz (customized)
Modulation :
QPSK(4QAM),16QAM,64QAM(default QPSK)
Working Bandwidth :
2-8MHz could be changed
Receiving Sensitivity :
-106dBm
Encryption :
AES
RF Interface :
SMA F Head
Transmission Distance :
Ground to ground 1-3KM, ground to air 20-30KM
Power Supply :
DC 12V
Power Consumption :
≤37dBm
Range :
10~40km
Description

10-40km AES Encryption Wireless COFDM HDMI/CVBS Video Transmission Receiver

Product Description

The ZKManet1303R is a mini COFDM wireless receiver with dual antenna diversity reception. This system can transmit HDMI/AV videos with low-latency. It can work under all environments including high-speed mobile (NLOS), with a durable, compact and lightweight housing.

Features

* Based on advanced COFDM technology
* Frequency 300MHz-2.7GHz customizable
* Supports HDMI/CVBS dual video outputs
* Supports TF card & USB video recording
* Compact size and light weight
* Low power consumption
* Low latency
* Range up to 20~30km (LOS)

Specifications

Model ZKManet1303R Brand ZKMANET
RF Parameters Frequency 300MHz-2.7GHz (Default 700MHz)
Modulation Type QPSK(4QAM), 16QAM, 64QAM
Bandwidth 2-8MHz
Encryption AES
Receiving Sensitivity -106dBm@2MHz
RF Interface SMA-F
Range 1~3km (ground-to-ground)
20~30km (air-to-ground)
Video Parameters Video Output Interface HD: HDMI
SD: 3.5mm interface
Video Output HD: 1080P@60
SD: 720x480
Video Compression H.264
Video Memory TF Card (128G Max)
File System: FAT32
Physical/Environment Dimensions 105x89.5x30mm
Weight 248g
Working Temp -20ºC~+65ºC
Electronic Parameters Power Supply DC12V
Power Consumption <37dBm

Dimensions

10-40km AES Encryption Wireless COFDM HDMI/CVBS Video Transmission Receiver

Panel Description

10-40km AES Encryption Wireless COFDM HDMI/CVBS Video Transmission Receiver
  1. Antenna interface-SMAF
  2. Antenna interface-SMAF
  3. HDMI output- HD digital
  4. CVBS output -SD analog
  5. Power input interface-DC 12V

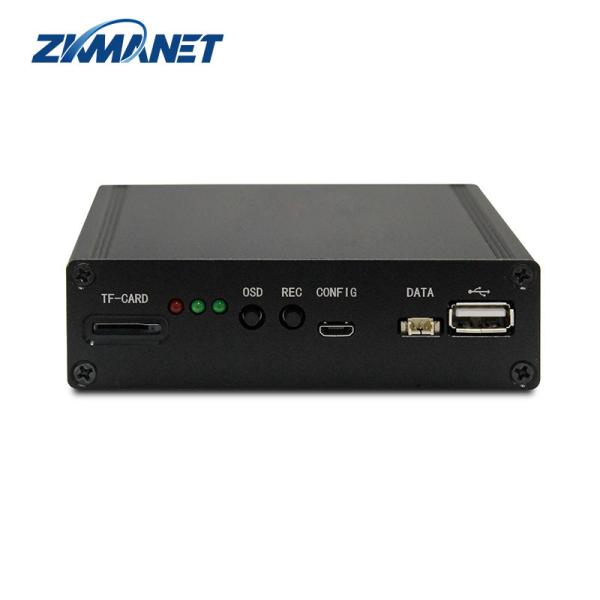

  1. TF-card slot - max. 128G, FAT32 format, auto recording and auto overrides.
  2. Power indicator
  3. OSD indicator
  4. REC indicator
  5. OSD button
  6. REC button
  7. Configuring port - connect to the USB programmer for adjusting frequency, bandwidth etc.
  8. Data port-RS232 (TX, RX, GND), TX to RX unidirectional.
  9. USB storage port - connect to external hard drive or SSD for video recording, FAT format, auto recording and auto overrides. Note: The USB port can only supply 5V/0.5A, external Power supply may required for hard drive and SSD.
