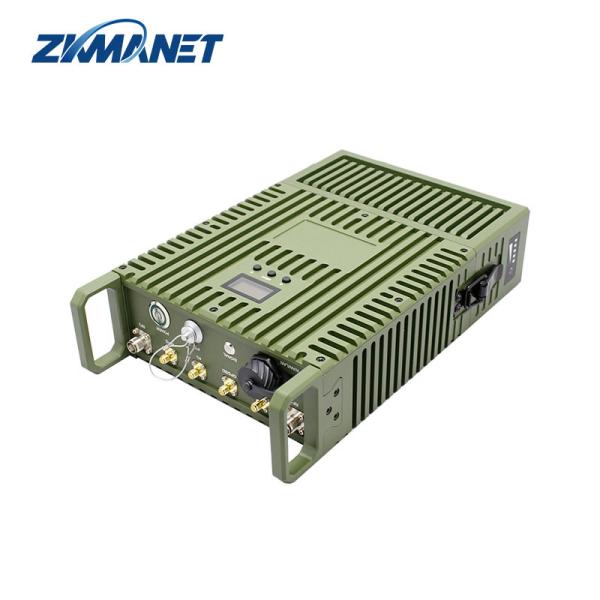

ZKManet2271UM is a high-power MESH self-organizing network radio with an integrated backpack design, providing a more stable emergency network and longer transmission distance in complex situations. The device comes with a data display screen, showing real-time device status and connection status. It can be worn by a single soldier, used as a relay with a tripod, or installed at fixed points. With a built-in lithium battery for power supply, the product features a sleek appearance, ease of use, powerful functionality, and high reliability.

* Supports two-way intercom
* Full transparent IP data transmission
* Supports 4G (with SIM card slot)
* Supports WIFI connection
* Supports GPS/BD
* Equipped with a display screen to show configuration information and connection status
* Working time ≥4h
* IP66
* Easy to operation

1. Power push button
2. PTT (Mic)
3. MESH signal indicator

SNR	Link Quality	Topology Color
SNR ≥ 17	Excellent	Deep Green
12 ≤ SNR < 17	Good	Light Green
7 ≤ SNR <12	Fine	Yellow
2 ≤ SNR <7	Medium	Orange
-10 < SNR <2	Bad	Red
SNR = -10	Disconnected	N/A

1. LAN interface, RJ45
2. Digital LCD indicator
3. Configuration buttons (optional) - set frequency, bandwidth and distance parameters.
4. Battery Indicator
5. Battery butterfly clasp
6. MESH antenna interface-2
7. WIFI antenna interface-2
8. 4G antenna interface
9. GPS/BD antenna interface
10. WIFI antenna interface-1
11. MESH antenna interface-1

1. Battery charging port
2. Main body power input port

1. Battery +/- contacts
2. SIM card slot
