Specifications
Brand Name :
ZKMANET
Model Number :
ZKManet7771
Certification :
CE, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
USD 2999~3999
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
5~8 working days
Packaging Details :
Brown Carton
Working Mode :
MESH/3GPP R9 protocol
Bandwidth :
2/5/10/20/40MHz
RF Channel :
4T4R
Output Power :
43dBm
Range :
10~15KM
Data Rate :
82Mbps
Encryption :
AES
WIFI :
2.4G/5.8G
Description

43dBm 82Mbps Mulitple Network Mode Integrated Vehicle Mounted Base Station Transceiver

Product Description

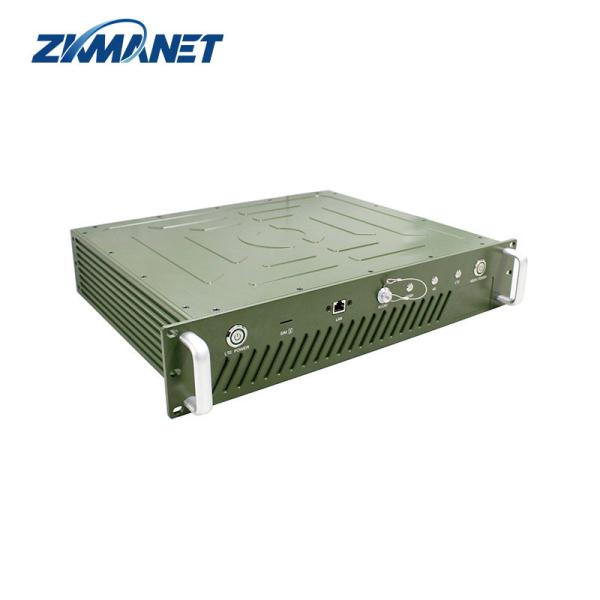

The ZKManet7771 is a high-performance rack-mounted base station specially developed for emergency communication. It integrates various communication methods including MESH network, LTE private network, 4G public network, WIFI and wired network, and supports GPS/BD positioning. It can be powered by vehicle power supply, and suits different geographical and network environments to solve emergency on-site communication problems. With the management software, the devices under the network can be managed remotely, and through the visualization platform, video monitoring and command and dispatch can be performed.

Features

* Rack-mounted design for easy installation and use
* Support vehicle power supply and utility power
* Supports LTE private network handheld access
* With WI-FI AP and supports cell phone, laptop and other smart devices access
* Supports Mesh self-organizing network device access
* Supports 4G
* Supports GPS/BD
* Supports remote management

Dimensions

43dBm 82Mbps Mulitple Network Mode Integrated Vehicle Mounted Base Station Transceiver

Panel Description

43dBm 82Mbps Mulitple Network Mode Integrated Vehicle Mounted Base Station Transceiver
1- LTE Power Switch
2- 4G Card Slot
3- Network Port
4- Intercom Interface
5- MESH Signal Indicator
6- 4G Signal Indicator
7- LTE Signal Indicator
8- MESH Power Switch
9- MESH Antenna Interface 1
10- MESH Antenna Connector 2
11- Power Input Connector
12- Network Port
13- Serial port (spare)
14- BD antenna interface
15- 4G antenna interface
16- WI-FI Antenna Interface
17- LTE Antenna Interface 1
18- LTE Antenna Interface 2

Product Parameters

Model ZKManet7771
RF Parameters Working Mode Support MESH/3GPP R9 protocol
Frequency MESH: 580MHz (customizable);
LTE: 1.4GHz (customizable)
Bandwidth 2/5/10/20/40MHz
RF Channel 4T4R
Output Power 43dBm
Range MESH: 10~15KM
LET: ≥2KM
Network Parameters Network Capacity 64 nodes; No less than 9 hops
Data Rate LTE: uplink:>50Mbps; downlink:>15Mbps
MESH: 82Mbps
Encryption AES128
Public Network 4G
Positioning BD
WIFI 2.4/5.8G
Physical/ Environment Dimensions 430*360*89mm
Weight <10kg
Working Temp -40ºC~+65ºC
Electrical Parameters Power Supply AC220V/DC12V
Power Consumption <100W
