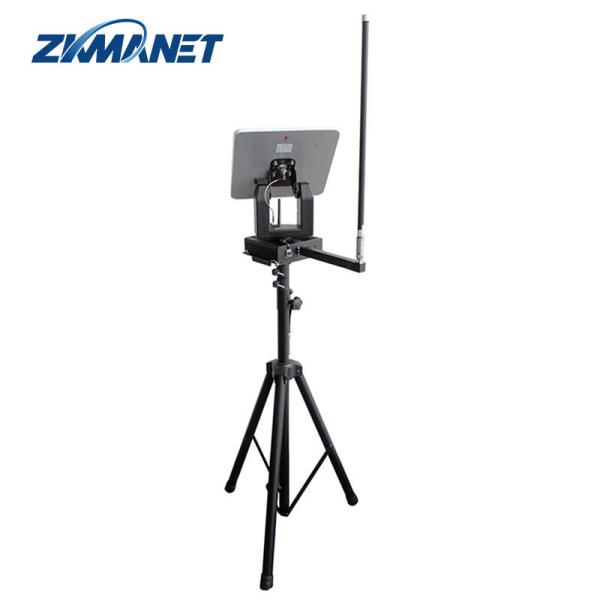

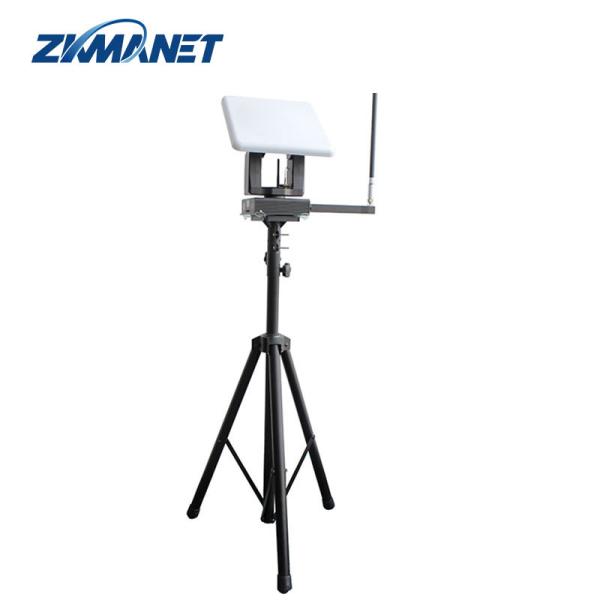

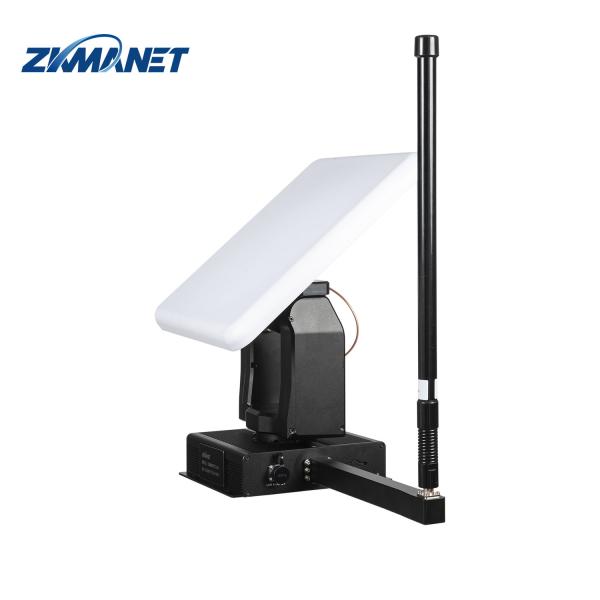

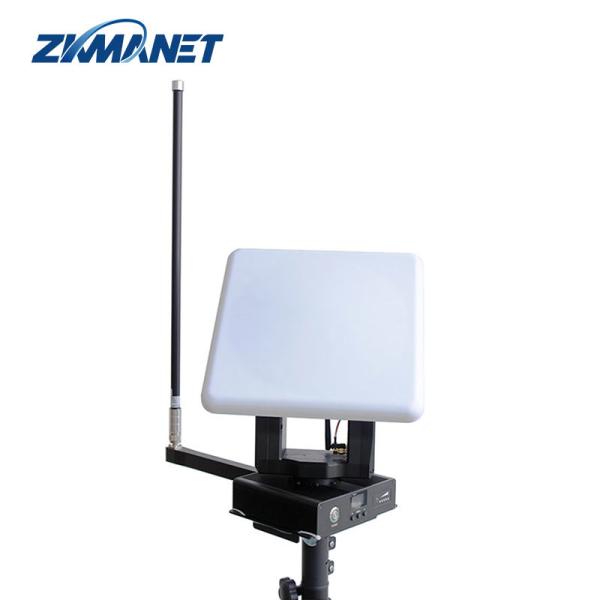

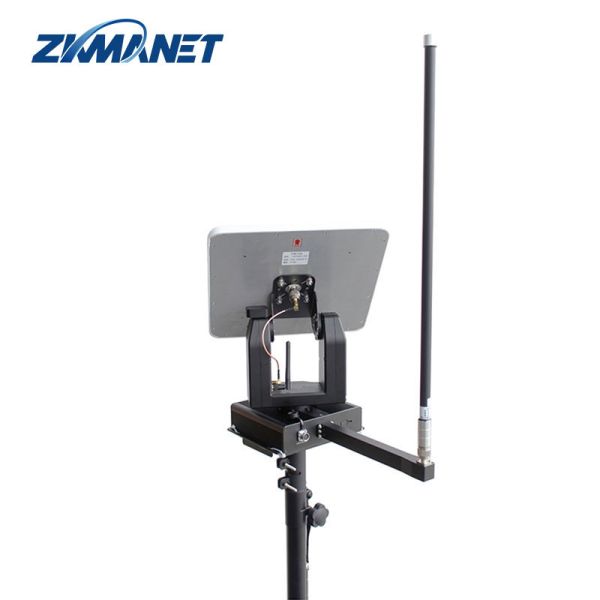

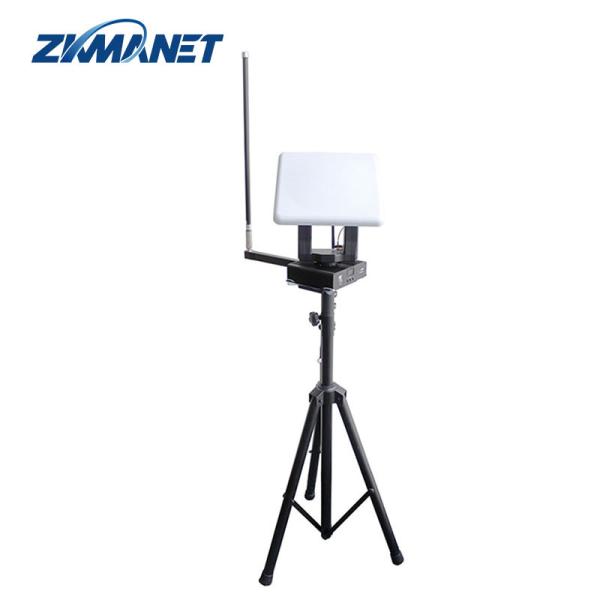

Automatic Tracking Ground Station High Gain Antenna For Drone UAV UGV

The ZKManet2441 is a ground terminal designed for long distances video data communication. It has built-in GPS tracking module and wireless communication module. The airborne GPS module feeds GPS/BD coordinate information to the wireless communication module through serial port for transparent transmission. The ground terminal calculates the pointing angle based on its own latitude and longitude and that of the airborne module. This ensures your ground panel antenna is always aligned with your airborne module, maintaining the best possible wireless reception and significantly increasing the range. It adopts 1T2R dual-antenna transmission, with a high-gain directional antenna for sending and receiving, and an omnidirectional antenna for receiving, which can transmit signals more effectively.

* 2W power output for up to 49km range,transmission range can be customized
* Automatic calibration algorithm at startup
* With main and sub (LoRa) dual links to ensure timely refreshing of GPS data
* Using 1T2R dual-antenna for more reliable transmission
* 360-degree twist-free slip ring

1. GPS Antenna
2. Directional panel antenna interface, SAM F
3. LoRa link antenna interface, SMA F
4. Power button
5. OLED screen (1.3") and configuration buttons (up, down and menu)
6. Battery indicator
7. Omnidirectional antenna interface, SAM F
8. LAN & Serial port - 9 pin aviation connector (4 pins for LAN, 3 pins for TTL and 2 pins not used)
9. DC power input interface, waterproof
