Electric cradle machine / suspended platform / construction lift hoist
Electric cradle machine / suspended platform / construction lift hoist
Specifications
Place of Origin :
China
Brand Name :
XINGHE
Certification :
CE,ISO
Model Number :
ZLP630,ZLP800
Suspended platform :
Hot galvanized steel
Platform size :
6000*690*1180
Lifting speed :
~9.5m/min
Hoist :
LTD63
Motor :
1.5kw*2
Safety lock :
LS30
Wire rope :
8.3mm
Counter weight :
1000kgs
MOQ :
1 sets
Price :
USD2100
Packaging Details :
plywood case, container
Delivery Time :
5-7 days
Payment Terms :
TT,LC
Supply Ability :
300 sets suspended platform per month
Warranty :
one year for suspended platform, 6 years for gear of hoist
Description

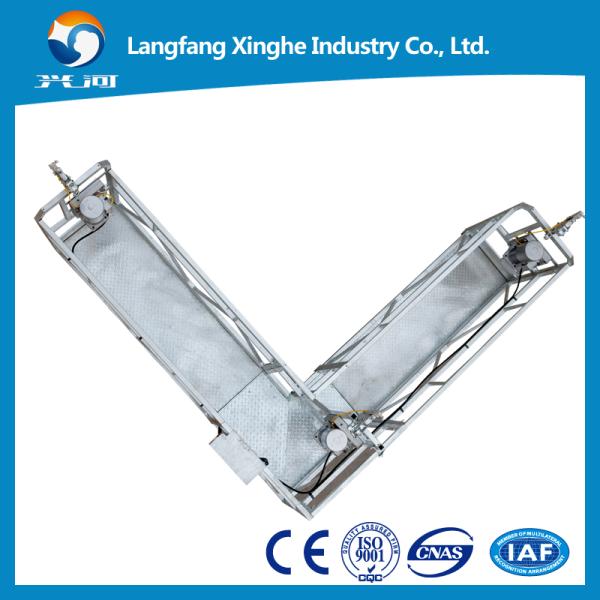

Suspended platforms are designed and constructed in modular form

so it can be mounted in any size from 2-8 meters.

The connection of the individual parts of the structure in each

unit is made with nuts and bolts.

The platform is equipped with wheels for easy movement around the construction site.

The working platform as bolt type and pin type.

Electric cradle machine / suspended platform / construction lift hoist

Electric cradle machine / suspended platform / construction lift hoist

Steel suspended rope platform ZLP800 / gondola lift / window cleaning machine

Electric cradle machine / suspended platform / construction lift hoist

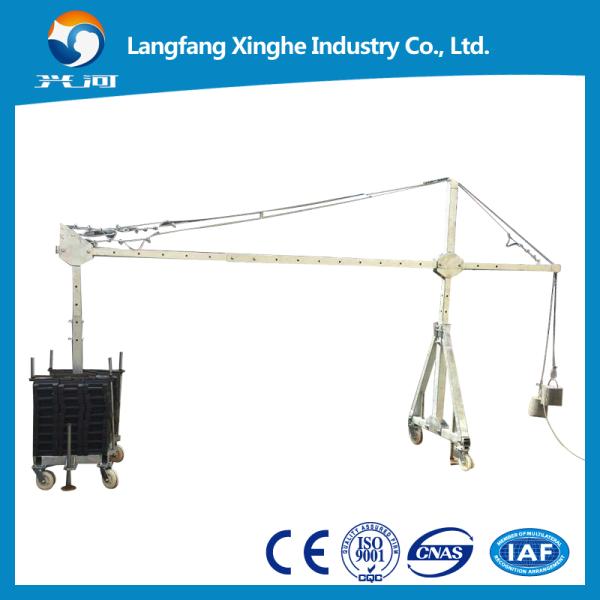

Suspension mechanism of suspended platform

With hot galvanized steel,the suspension mechanism uses 80*80,70*70 square tube,

thickness is 3.75mm, front and rear girder is 2.35mm thickness,

middle girder is 2.48mm, thickness of working platform is 2.2mm.

Electric cradle machine / suspended platform / construction lift hoist

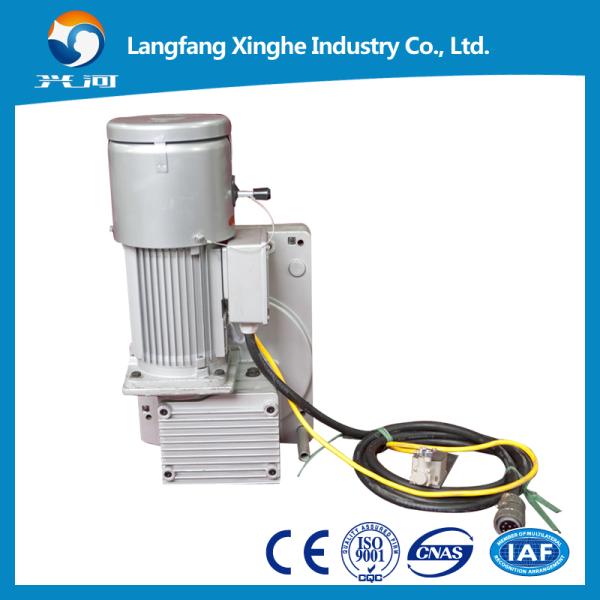

Hoist of suspended platform

With famous brand of motor, large braking torque, unique anti-rope clamping device, when the rope is clamped,the alarming rings,

the motor stops working, so that factor of safety is increased meantime,

maintenance cost of hoist is reduced. Lubrication oil is 220# industry gear oil.

Electric cradle machine / suspended platform / construction lift hoist

Safety lock of suspended platform

The lock cylinder uses special stainless steel, with strong impact resistance,

higher toughness, wear resistant, long services life,safe and reliable.

Electric cradle machine / suspended platform / construction lift hoist

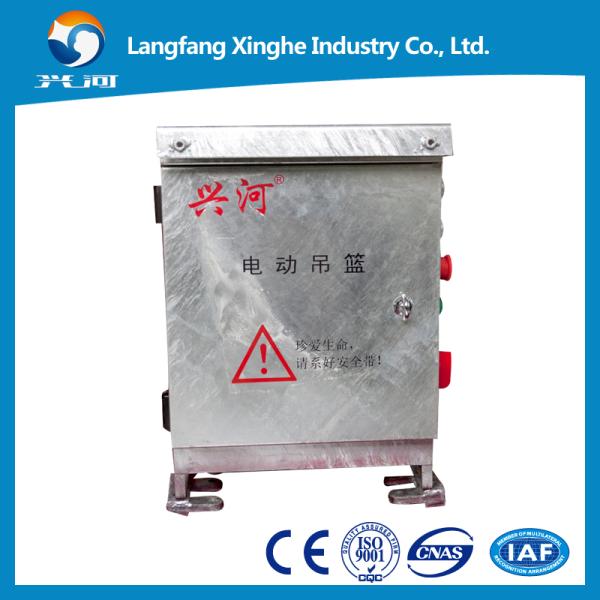

Electric control box

The electric components uses CHNT,SCHNEIDER brand, reliable quality,easy to maintain.

Electric cradle machine / suspended platform / construction lift hoist

Specification of suspended platform

Item

ZLP630

ZLP800

Rated load

630kg

800kg

Lifting speed

~9.5m/min

~8.5m/min

Platform size

(length×width×height)

(2000*3)*690*1180mm

(2500*3)*690*1180mm

Suspension mechanism

Front beam extension

1.1m-1.5m

Height adjustment

1.45m-1.75m

Hoist

Type

LTD63

LTD80

Motor

Type

Customization

Customization

Power

1.5KW

2.0KW

Voltage

380V

380V

Speed

1400n/min

1400n/min

Braking torque

15N·m

15N·m

Safety lock

Type

LS30

Angle of tilted locking rope

3°—8°

Allowable impact force

30kN

Weight

Working platform

300kg

370kg

Hoist

52kg×2

56kg×2

Safety lock

5.5kg×2

5.5kg×2

Suspension mechanism

320kg (without

counter weight)

320kg without

counter weight)

Electricity box

18kg

18kg

Total weight

812kg

872kg

Counter weight

1000kg (25×40pieces)

1000kg (25×40pieces)

Wire rope

Type

4×31SW+FC-ф8.3 broken

pulling force≥53500N

4×31SW+FC-ф8.3 broken

pulling force≥62500N

Cable

Type

3×2.5+2×1.5YC-5 (one piece)

Electric cradle machine / suspended platform / construction lift hoist

ADVANTAGE

1. All of the components like hoist motor, safety lock, control box are produced by ourself,

so that quality, delivery and services are very competitive.

2. As a suspended platform factory, the cost of the gondola can be controlled very well, you

can get a more competitive price.

3.Once there are any problems, components can be replaced more quickly than trading compay,

as there are stocks in our factory.

ABOUT US

Langfang Xinghe Industry Co,Ltd, established in 1980 year, is professional in production,sales

and rental of temporary suspended platform in China.

As a market leader and key player in suspended platform&cradle sector, since its establishment,

we focus on facade solutions, high rise building cleaning&maintenance. Our team has long lasting

experience and know how in design and production of suspended platform and related components.

With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share.

Our main products includes suspended platform/cradle ZLP630, ZLP800 with its components, hoist,

safety lock, electric control box and other parts. All these components are made in our factory by

our worker, it means stable and competitive quality, delivery and services.

Langfang Xinghe Industry Co,Ltd has advanced processing center, large hydraulic&punching

equipment. With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share, and bring

more benefit for our clients in the global.
