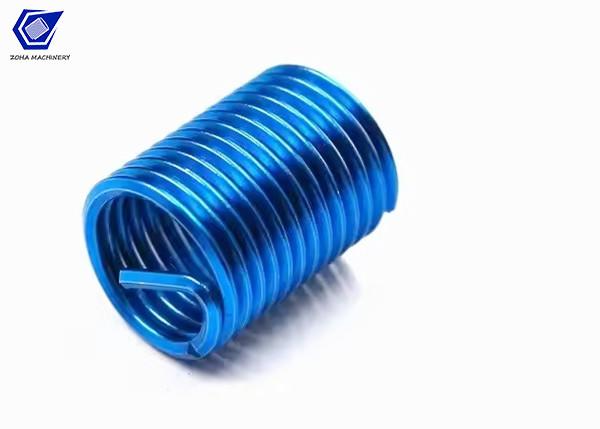

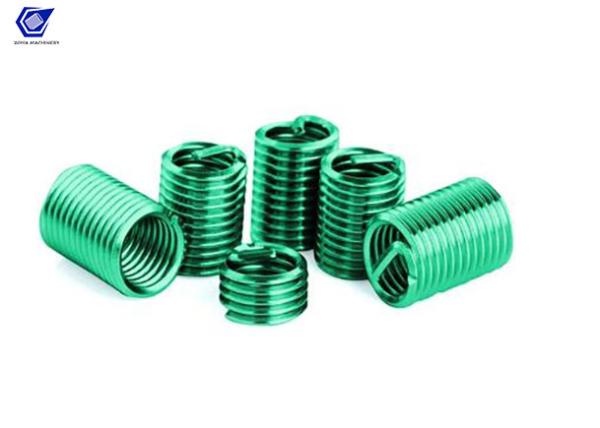

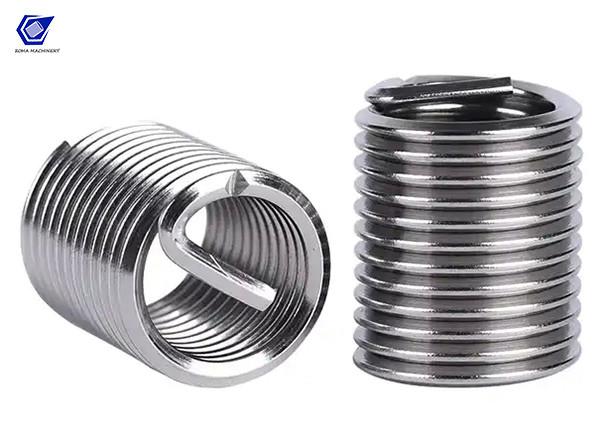

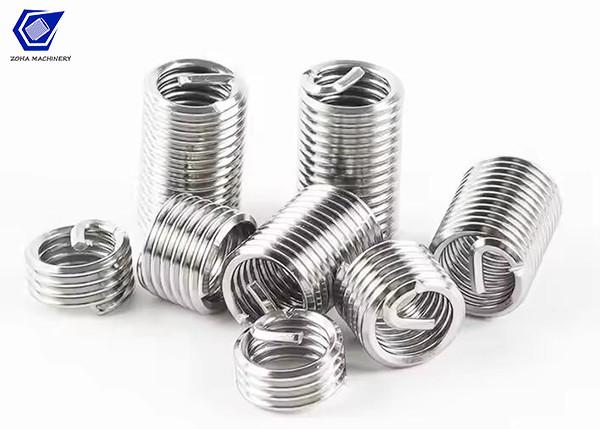

High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils
High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils
High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils
High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils
High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils
High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils
High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils
High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils
Specifications
Brand Name :
ZOHA
Model Number :
ZH-M6
Certification :
ISO9001:2016
Place of Origin :
China
MOQ :
100pcs
Price :
0.05USD/PC
Payment Terms :
L/C, T/T, Western Union, D/P, MoneyGram
Supply Ability :
500000pcs/week
Delivery Time :
3-5 working days
Packaging Details :
PE bags + carton
Application :
Metal, Plastic, Wood
Corrosion Resistance :
Excellent
Heat Resistance :
Up to 800°C
Installation Method :
Screw-in, Press-in
Material :
Stainless Steel 304
Other Name :
wire thread inserts for aluminum
Packaging :
Carton Box, Wooden Box
Packing :
PE bags + carton
Size :
metric, inch
Surface Treatment :
Passivation, Zinc Plating
Thread Size :
M2-M100, 1/4-4
Thread Type :
Metric, Imperial
Tolerance :
6H, 6G
Description

High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils

Threaded Inserts are cylindrical, metal bushings with features on the outside which lock them into a plastic or metal base material to anchor your fasteners.
ZOHA threaded Inserts provide high-quality, permanent, wear-resistant internal threads and are designed to be installed in molded or drilled holes in one simple step.

Material & Coatings:
Zoha thread inserts are made from a range of materials and with various coatings to suit virtually any type of equipment manufacturing.
Material Type
Material Grade
Min. Tensile Strength at 20 ℃
Max. Operating Temperature*
Typical Applications
Surface Coatings
Stainless Steel
304
321
316L

0Cr18Ni9/0Cr19Ni9
1Cr18Ni9Ti
00Cr17Ni14Mo2
>1400Mpa
425℃ Short time
315℃ Long-term
All normal applications in all materials / Improved corrosion resistance / Salt water applications
No plating
Dry lubrication film
Cadmium plating
Sliver plating
Phosphor Bronze
QSn6.5-0.4
(CuSn6, C51900, C5191)
>1000Mpa
300℃ Short time
250℃ Long-term
Copper parts / High resistance to some electrolytic couples
No plating
Cadmium plating
Iron Alloy
Nitronic 60
(AISI/ASTM Alloy 218, UNS S21800, HPA 50)
>1400Mpa
425℃ Short time
315℃ Long-term
Valve Stems Pins / Brushes Roller bearings / Pump shafts and rings / Thread inserts / Fasteners
No plating
Dry film lubricant
High Temperature Alloy
Inconel X 750
(UNS N07750)
Nimonic 90
(UNS N09901)
>1400Mpa
750℃ Short time
550℃ Long-term
Aerospace / Turbines / Corrosive Atmospheres / High temperature use
No plating
Sliver plating
(*) indicative values

High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils

High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils

Package of Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils

High Quality Threaded Inserts Wire screw sleeve Stainless Steel 304 Helicoils

Package: Usually packed in boxes or bags, can be packed according to customer requirements.

Delivery: Usually within 3-5 working days after receipt of payment.
