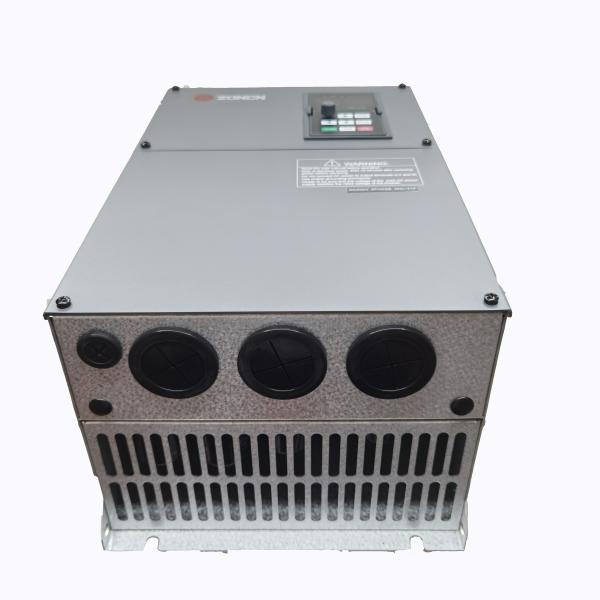

ZONCN Inverter 30kw 37kw VFD Variable Frequency Drive VSD Variable Speed Drive
ZONCN Inverter 30kw 37kw VFD Variable Frequency Drive VSD Variable Speed Drive
ZONCN Inverter 30kw 37kw VFD Variable Frequency Drive VSD Variable Speed Drive
ZONCN Inverter 30kw 37kw VFD Variable Frequency Drive VSD Variable Speed Drive
Specifications
Brand Name :
ZONCN
Model Number :
Z2400-30G/37P
Certification :
CE, KC
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T, Paypal
Supply Ability :
100,000 pcs/month
Delivery Time :
7-30 days
Packaging Details :
inside: box; outside: carton
Type :
AC inverters
Brand :
ZONCN
power range :
0.4kw-450kw
Voltage :
3PH 380V+/-15%
Rated power :
30KW
Input frequency :
50Hz / 60Hz
Output Frequency :
0-600Hz
OEM/ODM :
Support
Series :
Z2000 series
PM motor :
Support (Z2000T series)
Description

ZONCN Z2000 Series General Purpose Vector Control Inverter

ZONCN Inverter 30kw 37kw VFD Variable Frequency Drive VSD Variable Speed Drive

Product description

Item Z2000
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes

Specification

Specification
Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　

Nameplate Description

ZONCN Inverter 30kw 37kw VFD Variable Frequency Drive VSD Variable Speed Drive

We can do

No. Input Output
1 110v single phase 110v single phase
2 110v single phase 110v 3 phase
3 110v single phase 220v 3 phase
1 220v single phase 220v single phase
2 220v single phase 220v 3 phase
3 220v single phase 380v 3 phase
4 220v 3 phase 220v 3 phase
5 220v 3 phase 380v 3 phase
6 380v 3 phase 380v 3 phase
7 440v 3 phase 440v 3 phase
8 480v 3 phase 480v 3 phase

Note: If you have any special requirements, pls feel free to contact us directly.

Company Profile

ZONCN Inverter 30kw 37kw VFD Variable Frequency Drive VSD Variable Speed Drive

ZONCN Inverter 30kw 37kw VFD Variable Frequency Drive VSD Variable Speed Drive

Application

ZONCN Inverter 30kw 37kw VFD Variable Frequency Drive VSD Variable Speed Drive

Q&A

1, Are you a factory or trade company?

A: We are a professional factory which focus on producing inverter for more than 19 years.

2,Can you customize for our brand?

A: Sure, we have lots of OEM brands experience

3, What is your MOQ?

A: Our MOQ is 1 PC.

4, What is your lead time?

A: Within 15 days normally. If we have stock, delivery time is quicker.

5, Can you deliver to door?

A: Yes, we can ship by UPS/Fedex/DHL/etc, normaly takes about 7-9 days on they way for shipping.

6, Where is your factory? Can we visit your factory?

A: Our factory is in Shanghai and Wuhu, welcome to visit our factory at any time.

7, What is your products' warranty?

A: 18 months after delivering from factory

8. Do you provide techinical suppporting?

A: Sure, if you have any quesitions, pls feel free to contact us.
